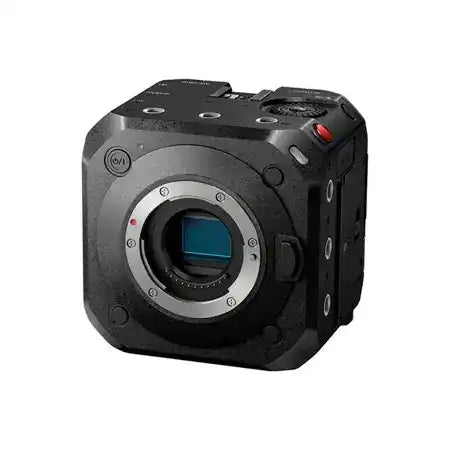

Panasonic AW-UB10 4K Multipurpose Camera

$3,000.00 $3,336.54
Shipping calculated at checkout.
Panasonic  |  SKU: AW-UB10P

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Payments Data is Encrypted
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Checkout data is encrypted

Box-style camera AW-UB10 is based on LUMIX digital interchangeable lens camera technology and equipped with a host of new functions designed to streamline video production workflows. Delivering stunning, vivid colour reproduction, the UB50 uses a 24.2-million pixel full-frame MOS sensor and supports IP-based transmission standards such as NDI® HX2[1].

The UB10 is the 4K multi-purpose camera supporting all common IP control protocols used in Panasonic’s remote camera systems. The box-style 4K multi-purpose cameras can support rich, versatile image capture and are incredibly easy to operate in the field, enabling more creative video production.

The UB10 features a 10.2-million pixel full-frame sensor. It feature real-time recognition autofocus technology, enabling the cameras to automatically identify the subject and keep them in focus.

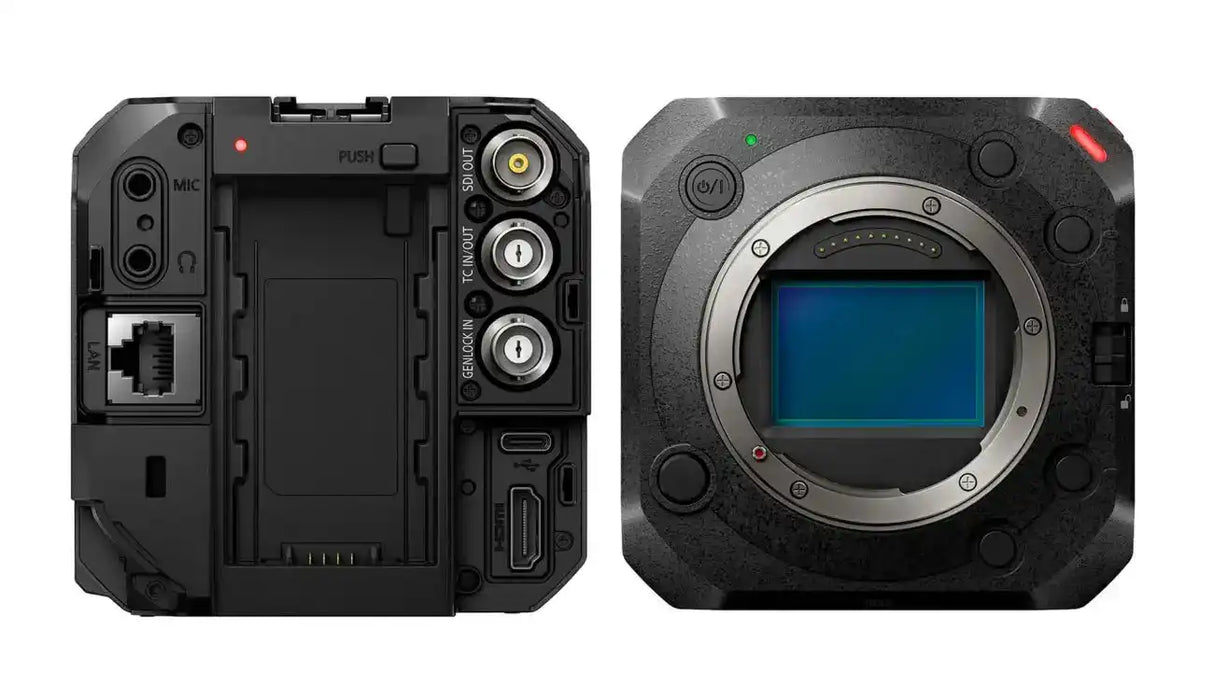

UB10 camera features the 3G-SDI OUT, HDMI Type A, LAN terminal, TC IN/OUT, GENLOCK IN, and USB Type-C input/output interfaces.

The LAN terminal is Power of Ethernet (PoE+) compatible, with video transmission, control, and power delivered via a single cable – further reducing complexity and clutter.

The camera is ideal for a variety of applications from corporate to broadcasting and live entertainment.


[1] NDI® is a video transmission and control technology and is a registered trademark of Vizrt NDI AB in the United States and other countries.

Key features

10.2M MOS sensor for capturing multiple subjects in a single frame (AW-UB10)
Wide dynamic range with V-Log ( AW-UB10: 13 stops)
Compact design (height, width & depth each less than 10cm, excluding lens)
Unified IP control protocol compatible with Panasonic PTZ camera systems
Compatible with Media Production Suite for multi-camera setups with PTZ cameras
Planned support for IP transmission standards including NDI® HX2, RTMPS, and SRT

Specs

General -> Power Supply When using Lithium-ion battery pack: 7.28 V
When using included AC adapter: 12 V/3 A
When using PoE+ compatible hub: IEEE802.3at compliant
General -> Weight Approx. 545 g / 1.2 lb (body only)
General -> Dimensions W 93.0 mm x 93.0 mm x 78.0 mm
(3.66 inches x 3.66 inches x 3.07 inches)
(excluding protrusions)
General -> Type Interchangeable lens digital camera
Camera Unit -> Imaging Sensor 4/3" MOS x 1
Camera Unit -> Effective Pixels Approx. 10.3 megapixels
Camera Unit -> Latitude V-Log L: 13 stops
Camera Unit -> Photo Style PTZ camera (UE160) / Standard / Vivid / Natural / Landscape / Portrait / Cinelike D2 / Cinelike V2 / Like709 / V-LOG L / Hybrid Log Gamma / My Photo Style 1-10
SD Card Recording -> Recording Media SD Memory Card, SDHC Memory Card, and SDXC Memory Card for dual-slot recording
Footnote Description *1 Slots 1 and 2 compatible with UHS-I/UHS-II UHS Speed Class 3 and UHS-II Video Speed Class 90
General -> PoE PoE+
IEEE802.3at compliant
General -> Power Consumption -> when recording 7.9 W (When the interchangeable lens H-ES12060 is attached)
General -> Power Consumption -> when playing back 6.7 W (When the interchangeable lens H-ES12060 is attached)
General -> Operating Temperature -10 °C to 40 °C (14 °F to 104 °F)
General -> Operating Humidity 10 % to 80 %
General -> Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
General -> Storage Humidity 0 % to 90 %
General -> Dust Proof ー
Camera Unit -> Latitude V-Log L: 13 stops
Camera Unit -> Focus -> Focus mode AF / MF
Camera Unit -> Focus -> AF mode Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area
Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area /1-Area
(Tethered photo shooting with LUMIX Tether for Multicam software)
Camera Unit -> ISO Sensitivity (Standard Output Sensitivity) AUTO / 160 to 51200 (When [Extended ISO] is set: AUTO / 80 to 204800)
AUTO / 0 dB to 50 dB (When [Extended Gain Setting] is set: AUTO / -6 dB to 62 dB)
* ISO sensitivity can be changed in 1/3EV steps
Camera Unit -> Dual Native ISO -> Normal [AUTO] Base sensitivity: ISO160/800 (dB display values are based on ISO160)
AUTO / 160 to 51200 (When [Extended ISO] is set: AUTO / 80 to 204800)
AUTO / 0 dB to 50 dB (When [Extended Gain Setting] is set: AUTO / -6 dB to 62 dB)
[LOW] Base sensitivity: ISO160
AUTO / 160 to 800 (When [Extended ISO] is set: AUTO / 80 to 800)
AUTO / 0 dB to 14 dB (When [Extended Gain Setting] is set: AUTO / -6 dB to 14 dB)
[HIGH] Base sensitivity: ISO800
AUTO / 800 to 51200 (When [Extended ISO] is set: AUTO / 800 to 204800)
AUTO / 0 dB to 36 dB (When [Extended Gain Setting] is set: AUTO / 0 dB to 48 dB)
Camera Unit -> Dual Native ISO -> PTZ Camera (AW-UE160) [AUTO] Base sensitivity: ISO320/1600 (dB display values are based on ISO320)
AUTO / 320 to 51200 (When [Extended ISO] is set: AUTO / 160 to 204800)
AUTO / 0 dB to 44 dB (When [Extended Gain Setting] is set: AUTO / -6 dB to 56 dB)
[LOW] Base sensitivity: ISO320
AUTO / 320 to 1600 (When [Extended ISO] is set: AUTO / 160 to 1600)
AUTO / 0 dB to 14 dB (When [Extended Gain Setting] is set: AUTO / -6 dB to 14 dB)
[HIGH] Base sensitivity: ISO1600
AUTO / 1600 to 51200 (When [Extended ISO] is set: AUTO / 1600 to 204800)
AUTO / 0 dB to 30 dB (When [Extended Gain Setting] is set: AUTO / 0 dB to 42 dB)
Camera Unit -> Dual Native ISO -> V-Log [AUTO] Base sensitivity: ISO400/2000 (dB display values are based on ISO400)
AUTO / 400 to 25600
AUTO / 0 dB to 36 dB
[LOW] Base sensitivity: ISO400
AUTO / 400 to 2000
AUTO / 0 dB to 14 dB
[HIGH] Base sensitivity: ISO2000
AUTO / 2000 to 25600
AUTO / 0 dB to 22 dB
Camera Unit -> Dual Native ISO -> HLG [AUTO] Base sensitivity: ISO320/1600 (dB display values are based on ISO320)
AUTO / 320 to 51200 (When [Extended ISO] is set: AUTO / 320 to 204800)
AUTO / 0 dB to 44 dB (When [Extended Gain Setting] is set: AUTO / 0 dB to 56 dB)
[LOW] Base sensitivity: ISO320
AUTO / 320 to 1600
AUTO / 0 dB to 14 dB
[HIGH] Base sensitivity: ISO1600
AUTO / 1600 to 51200 (When [Extended ISO] is set: AUTO / 1600 to 204800)
AUTO / 0 dB to 30 dB (When [Extended Gain Setting] is set: AUTO / 0 dB to 42 dB)
Camera Unit -> Dual Native ISO -> Cinelike D2/V2 [AUTO] Base sensitivity: ISO160/800 (dB display values are based on ISO160)
AUTO / 160 to 51200 (When [Extended ISO] is set: AUTO / 80 to 204800)
AUTO / 0 dB to 50 dB (When [Extended Gain Setting] is set: AUTO / -6 dB to 62 dB)
[LOW] Base sensitivity: ISO160
AUTO / 160 to 800 (When [Extended ISO] is set: AUTO / 80 to 800)
AUTO / 0 dB to 14 dB (When [Extended Gain Setting] is set: AUTO / -6 dB to 14 dB)
[HIGH] Base sensitivity: ISO800
AUTO / 800 to 51200 (When [Extended ISO] is set: AUTO / 800 to 204800)
AUTO / 0 dB to 36 dB (When [Extended Gain Setting] is set: AUTO / 0 dB to 48 dB)
Camera Unit -> Creative Video Mode [Custom Mode C1] to [Custom Mode C12]
Camera Unit ->Exposure Compensation Motion picture: 1/3 EV step ±3 EV
Still image: 1/3 EV step ±5 EV
* Tethered photo shooting with LUMIX Tether for Multicam software.
Camera Unit -> Exposure Bracketing ー
Camera Unit -> Light metering system/mode 1728-zone metering,
multi-metering / center-weighted metering / spot metering / highlight-weighted metering (only for video)
Camera Unit ->Shutter Speed-> Still 1/16,000 - 1 (Tethered photo shooting with LUMIX Tether for Multicam software)
Camera Unit -> Shutter Speed-> Movie 1/16,000 - 1/2
Camera Unit ->White Balance AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent lights / White Set 1, 2, 3, 4 / Color temperature 1, 2, 3, 4
Camera Unit -> Still Picture Recording -> Recording file format JPEG (DCF, Exif 2.31)
* Tethered photo shooting with LUMIX Tether for Multicam software
Camera Unit -> Still Picture Recording -> File size 3680 x 2760 (L) / 2592 x 1944 (M) / 1824 x 1368 (S)
Camera Unit -> Recording Format (MOV) -> System frequency: 59.94Hz Image Area of Video: FULL 4096x2160 (C4K), 59.94p, 200Mbps (420/10bit LongGOP), H.265/HEVC, LPCM
4096x2160 (C4K), 59.94p, 150Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
4096x2160 (C4K), 29.97p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
4096x2160 (C4K), 23.98p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3840x2160 (4K), 59.94p, 200Mbps (420/10bit LongGOP), H.265/HEVC, LPCM
3840x2160 (4K), 59.94p, 150Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3840x2160 (4K), 29.97p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3840x2160 (4K), 23.98p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3328x2496 (4:3 [Anamorphic 4K), 59.94p, 150Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3328x2496 (4:3 [Anamorphic 4K), 29.97p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3328x2496 (4:3 [Anamorphic 4K), 23.98p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
1920x1080 (FHD), 59.94p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
1920x1080 (FHD), 29.97p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
1920x1080 (FHD), 23.98p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
Camera Unit -> Recording Format (MOV) -> System frequency: 59.94Hz Image Area of Video: PIXEL/PIXEL 1920x1080 (FHD), 59.94p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
1920x1080 (FHD), 29.97p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
1920x1080 (FHD), 23.98p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
Camera Unit -> Recording Format (MOV) -> System frequency: 50.00Hz Image Area of Video: FULL 4096x2160 (C4K), 50.00p, 200Mbps (420/10bit LongGOP), H.265/HEVC, LPCM
4096x2160 (C4K), 50.00p, 150Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
4096x2160 (C4K), 25.00p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3840x2160 (4K), 50.00p, 200Mbps (420/10bit LongGOP), H.265/HEVC, LPCM
3840x2160 (4K), 50.00p, 150Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3840x2160 (4K), 25.00p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3328x2496 (4:3 [Anamorphic 4K), 50.00p, 200Mbps (420/10bit LongGOP), H.265/HEVC, LPCM
3328x2496 (4:3 [Anamorphic 4K), 50.00p, 150Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3328x2496 (4:3 [Anamorphic 4K), 25.00p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
1920x1080 (FHD), 50.00p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
1920x1080 (FHD), 25.00p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
Camera Unit -> Recording Format (MOV) -> System frequency: 50.00Hz Image Area of Video: PIXEL/PIXEL 1920x1080 (FHD), 50.00p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
1920x1080 (FHD), 25.00p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
Camera Unit -> Recording Format (MOV) -> System frequency: 24.00Hz Image Area of Video: FULL 4096x2160 (C4K), 24.00p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3840x2160 (4K), 24.00p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3328x2496 (4:3 [Anamorphic 4K), 24.00p, 400Mbps (422/10bit ALL-I) / 150Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
1920x1080 (FHD), 24.00p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
Camera Unit -> Recording Format (MOV) -> System frequency: 24.00Hz Image Area of Video: PIXEL/PIXEL 1920x1080 (FHD), 24.00p, 200Mbps (422/10bit ALL-I) / 100Mbps (422/10bit LongGOP) / 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
Camera Unit -> Recording Format (MP4) -> System frequency: 59.94Hz Image Area of Video: FULL 3840x2160 (4K), 59.94p, 100Mbps (420/10bit LongGOP), H.265/HEVC, AAC
3840x2160 (4K), 29.97p, 72Mbps (420/10bit LongGOP), H.265/HEVC, AAC
3840x2160 (4K), 23.98p, 72Mbps (420/10bit LongGOP), H.265/HEVC, AAC
3840x2160 (4K), 29.97p, 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
3840x2160 (4K), 23.98p, 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
1920x1080 (FHD), 59.94p, 28Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
1920x1080 (FHD), 29.97p, 20Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
1920x1080 (FHD), 23.98p, 24Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
Camera Unit -> Recording Format (MP4) -> System frequency: 59.94Hz Image Area of Video: PIXEL/PIXEL 1920x1080 (FHD), 59.94p, 28Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
1920x1080 (FHD), 29.97p, 20Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
1920x1080 (FHD), 23.98p, 24Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
Camera Unit -> Recording Format (MP4) -> System frequency: 50.00Hz Image Area of Video: FULL 3840x2160 (4K), 50.00p, 100Mbps (420/10bit LongGOP), H.265/HEVC, AAC
3840x2160 (4K), 25.00p, 72Mbps (420/10bit LongGOP), H.265/HEVC, AAC
3840x2160 (4K), 25.00p, 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
1920x1080 (FHD), 50.00p, 28Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
1920x1080 (FHD), 25.00p, 20Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
Camera Unit -> Recording Format (MP4) -> System frequency: 50.00Hz Image Area of Video: S35mm / PIXEL/PIXEL 1920x1080 (FHD), 50.00p, 28Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
1920x1080 (FHD), 25.00p, 20Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, AAC
Camera Unit -> Recording Format (MOV、VFR) -> System frequency: 59.94Hz Image Area of Video: FULL 1920x1080 (FHD), 59.94p (Maximum output of sensor is 180fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
1920x1080 (FHD), 29.97p (Maximum output of sensor is 180fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
1920x1080 (FHD), 23.98p (Maximum output of sensor is 180fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
* Angle of view narrows if you select a frame rate with a number of frames 151 or more.
Camera Unit -> Recording Format (MOV、VFR) -> System frequency: 59.94Hz Image Area of Video: S35mm ー
Camera Unit -> Recording Format (MOV、VFR) -> System frequency: 59.94Hz Image Area of Video: PIXEL/PIXEL 1920x1080 (FHD), 59.94p (Maximum output of sensor is 240fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
1920x1080 (FHD), 29.97p (Maximum output of sensor is 240fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
1920x1080 (FHD), 23.98p (Maximum output of sensor is 240fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
* Angle of view narrows if you select a frame rate with a number of frames 201 or more.
Camera Unit -> Recording Format (MOV、VFR) -> System frequency: 50.00Hz Image Area of Video: FULL 4096x2160 (C4K), 25.00p (Maximum output of sensor is 60fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3840x2160 (4K), 25.00p (Maximum output of sensor is 60fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3328x2496 (4:3 [Anamorphic 4K), 25.00p (Maximum output of sensor is 60fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
1920x1080 (FHD), 50.00p (Maximum output of sensor is 240fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
1920x1080 (FHD), 25.00p (Maximum output of sensor is 240fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
* Angle of view narrows if you select a frame rate with a number of frames 151 or more.
Camera Unit -> Recording Format (MOV、VFR) -> System frequency: 50.00Hz Image Area of Video: S35mm ー
Camera Unit -> Recording Format (MOV、VFR) -> System frequency: 50.00Hz Image Area of Video: PIXEL/PIXEL 1920x1080 (FHD), 50.00p (Maximum output of sensor is 240fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
1920x1080 (FHD), 25.00p (Maximum output of sensor is 240fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
* Angle of view narrows if you select a frame rate with a number of frames 201 or more.
Camera Unit -> Recording Format (MOV、VFR) -> System frequency: 24.00Hz Image Area of Video: FULL 4096x2160 (C4K), 24.00p (Maximum output of sensor is 60fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3840x2160 (4K), 24.00p (Maximum output of sensor is 60fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
3328x2496 (4:3 [Anamorphic 4K), 24.00p (Maximum output of sensor is 60fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM
1920x1080 (FHD), 24.00p (Maximum output of sensor is 240fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
* Angle of view narrows if you select a frame rate with a number of frames 151 or more.
Camera Unit -> Recording Format (MOV、VFR) -> System frequency: 24.00Hz Image Area of Video: S35mm ー
Camera Unit -> Recording Format (MOV、VFR) -> System frequency: 24.00Hz Image Area of Video: PIXEL/PIXEL 1920x1080 (FHD), 24.00p (Maximum output of sensor is 240fps), 100Mbps (420/8bit LongGOP), H.264/MPEG-4 AVC, LPCM*
* Angle of view narrows if you select a frame rate with a number of frames 201 or more.
Camera Unit -> Picture Adjustment Contrast*1 / Highlight*1 / Shadow*1 / Saturation*2 / Color Tone*2 / Sharpness / Noise Reduction / Dual Native ISO Setting / ISO / WB
*1: Excluding Like709/V-Log/Like2100 (HLG) *2: Excluding V-Log
Camera Unit -> Continuous Shooting ー
Input Connector -> DC IN DC 12 V (11.4–12.6 V), EIAJ Type4、PoE+ (IEEE802.3at compliant)
Input Connector -> External Microphone φ3.5 mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE is selectable
Input Connector -> AUDIO IN XLR (3-pin) x 2 (INPUT1, INPUT2)
LINE / MIC / MIC+48V is selectable
Input Connector -> GENLOCK IN BNC x 1
Output Connector -> HDMI HDMI Type A
Output Connector -> SDI OUT BNC x 1、0.8V[p-p]、75Ω、3G-SDI
Output Connector -> Headphone φ3.5mm
Input/Output Connector-> TC IN/OUT BNC x 1
Input/Output Connector -> USB USB Type-C (uper Speed USB3.1 GEN1)
Input/Output Connector -> LAN Remote Control: LAN Terminal (RJ-45)
Power Supply: PoE+ (IEEE802.3at compliant)
Input/Output Connector -> REMOTE IN φ2.5mm
Streaming-> Compatible Protocol RTP / RTSP
Streaming -> Streaming Image Quality -> System frequency: 59.94Hz (NTSC) H.264
3840x2160 (4K), 59.94p, 50Mbps
3840x2160 (4K), 59.94p, 25Mbps
3840x2160 (4K), 29.97p, 25Mbps
3840x2160 (4K), 29.97p, 12.5Mbps
1920x1080 (FHD), 59.94p, 16Mbps
1920x1080 (FHD), 59.94p, 8Mbps
1920x1080 (FHD), 29.97p, 6Mbps
1920x1080 (FHD), 29.97p, 3Mbps
1280x720 (HD), 59.94p, 6Mbps
1280x720 (HD), 29.97p, 4Mbps

H.265
3840x2160 (4K), 59.94p, 50Mbps
3840x2160 (4K), 59.94p, 25Mbps
3840x2160 (4K), 29.97p, 25Mbps
3840x2160 (4K), 29.97p, 12.5Mbps
1920x1080 (FHD), 59.94p, 20Mbps
1920x1080 (FHD), 59.94p, 16Mbps
1920x1080 (FHD), 29.97p, 12Mbps
1920x1080 (FHD), 29.97p, 6Mbps
Streaming -> Streaming Image Quality -> System frequency: 50.00Hz (PAL) H.264
3840x2160 (4K), 50.00p, 50Mbps
3840x2160 (4K), 50.00p, 25Mbps
3840x2160 (4K), 25.00p, 25Mbps
3840x2160 (4K), 25.00p, 12.5Mbps
1920x1080 (FHD), 50.00p, 16Mbps
1920x1080 (FHD), 50.00p, 8Mbps
1920x1080 (FHD), 25.00p, 6Mbps
1920x1080 (FHD), 25.00p, 3Mbps
1280x720 (HD), 50.00p, 6Mbps
1280x720 (HD), 25.00p, 4Mbps

H.265
3840x2160 (4K), 50.00p, 50Mbps
3840x2160 (4K), 50.00p, 25Mbps
3840x2160 (4K), 25.00p, 25Mbps
3840x2160 (4K), 25.00p, 12.5Mbps
1920x1080 (FHD), 50.00p, 20Mbps
1920x1080 (FHD), 50.00p, 16Mbps
1920x1080 (FHD), 25.00p, 12Mbps
1920x1080 (FHD), 25.00p, 6Mbps

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Creation Networks Nationwide Audiovisual Services - Sales, Design, Programming, Installation & Support - A Partner You Can Trust.

Creation Networks offers audiovisual & video conferencing equipment and professional services for projects of all sizes - from a single meeting room to a nationwide AV deployment. You can count on us for your audiovisual technology sales, design, configuration, programming, installation, and support. It is important that you get Top Quality products from the best manufacturers, and then purchase from a trusted partner who tests and installs what they sell, giving you the best value. Our goal at Creation Networks is to only represent the top products, test and install everything before recommending or selling our solutions. Contact us Today! 1.888.230.3661

  • Fast Shipping

    Expedited shipping is available.

  • Certified Dealer

    We are a certified dealer for every brand we sell.

  • Ask our experts.

    Contact our Technical Pros for expert advice.

  • Online Support

    Pre/Post Sales Support. Call us or use Online Support.
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Payments Data is Encrypted
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Checkout data is encrypted
