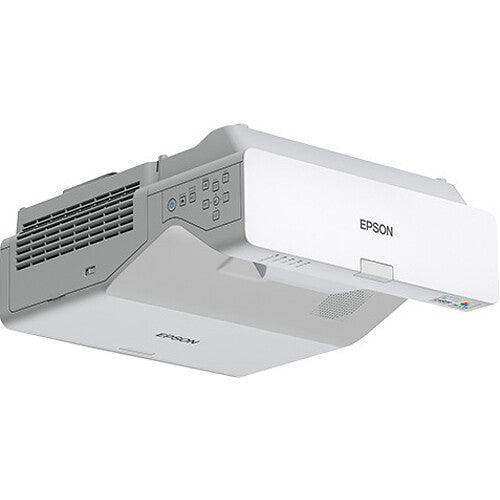

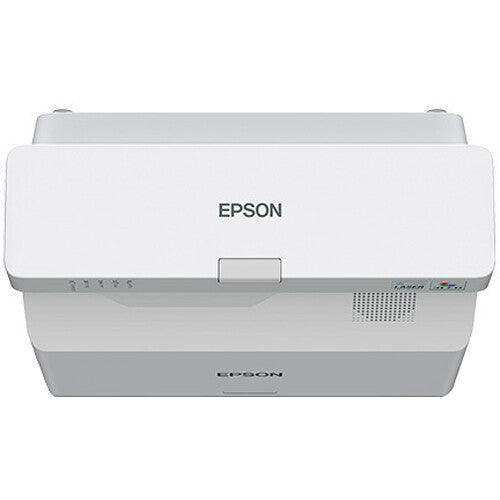

Epson PowerLite 770F – Full HD UST Laser Projector

Product Overview

The Epson PowerLite 770F (V11HA79020) is a 4,100-lumen Full HD ultra-short-throw laser 3LCD projector built for classrooms, training rooms, and conference spaces. This ultra-short-throw laser projector delivers HD images up to 150 inches diagonal, about 2.4 times larger than a 75-inch flat panel, readable from nearly anywhere in the room. It pairs 4,100 lumens of brightness with a 20,000-hour, virtually maintenance-free laser light source and supports ultra-wide aspect ratios with split-screen for up to four sources. With wireless casting and a broad connector set, it suits AV deployments that need a flexible, low-maintenance large-format display.

Product Description

The PowerLite 770F uses an ultra-short-throw lens to mount close to the wall, keeping presenters out of the light path while projecting up to a 150-inch image. Its native 1920 x 1080 Full HD panel pairs with a 2,500,000:1 contrast ratio for crisp text and well-saturated graphics. The display supports standard 16:9 plus ultra-wide 21:9 and 16:6 aspect ratios with split-screen functionality to show up to four screens at once, letting an instructor place a PC or document camera beside other content. A Wake-On Sync function brings the projector to a ready state in seconds, and it can project onto existing whiteboards so teams retain board space when the display is not in use. Connectivity includes HDMI, USB with USB playback, an RJ-45 network port, and built-in wireless LAN for casting, plus a built-in speaker for room audio. The laser diode light source is rated 20,000 hours in normal mode and up to 30,000 hours in economy mode, eliminating lamp replacement. AV teams often compare this model against the interactive Epson BrightLink 770Fi and the brighter Epson PowerLite 775F; compare options across the full Epson projector lineup.

Key Features

• Ultra-short-throw design — Mounts close to the wall to project up to a 150-inch image while keeping presenters out of the light path.
• 4,100-lumen 3LCD output — Brightness keeps Full HD content readable from nearly anywhere in lit classrooms and meeting rooms.
• Full HD with high contrast — Native 1920 x 1080 resolution with a 2,500,000:1 contrast ratio for sharp, detailed images.
• Ultra-wide aspect support — Standard 16:9 plus 21:9 and 16:6 formats with split-screen for up to four simultaneous sources.
• Long-life laser light source — Laser diode rated 20,000 hours (normal) and up to 30,000 hours (economy) with no lamps to replace.
• Wake-On Sync — Brings the projector to a ready state in seconds when a source signal is detected.
• Wireless and wired casting — Built-in wireless LAN and RJ-45 networking enable multi-device content sharing.

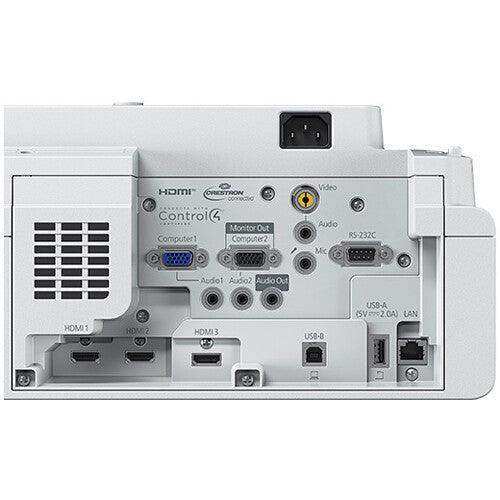

• Flexible connectivity — HDMI, USB with USB playback, and network ports support varied source and control setups.

Typical Applications

• Classroom and lecture hall instruction
• Training room presentations
• Conference room and huddle room displays
• Multi-purpose room and all-hands spaces
• Commercial meeting spaces requiring large-format display

Technical Specifications

Specifications sourced from Epson's official specification sheet.

Frequently Asked Questions

What size image can the PowerLite 770F project?
Up to 150 inches diagonal, approximately 2.4 times larger than a 75-inch flat panel.

Is it an ultra-short-throw projector?
Yes. Its ultra-short-throw lens mounts close to the wall so presenters can work at the surface without casting shadows.

Can it display multiple sources at once?
Yes. It supports split-screen functionality for up to four screens simultaneously and supports 16:9, 21:9, and 16:6 aspect ratios.

How does it connect to sources and networks?
It includes HDMI, USB with USB playback, an RJ-45 network port, and built-in wireless LAN for casting via Epson software.

Does the laser light source need replacement?
No. The laser diode light source is rated 20,000 hours in normal mode and up to 30,000 hours in economy mode, with no lamps to replace.

Is it suitable for commercial use?
Yes. It is designed for classrooms, training rooms, and commercial meeting spaces and is backed by Epson's commercial limited warranty.
