Vizrt TriCaster Vizion Tower with 8 SDI I/O - BDL-000000047

Product Overview

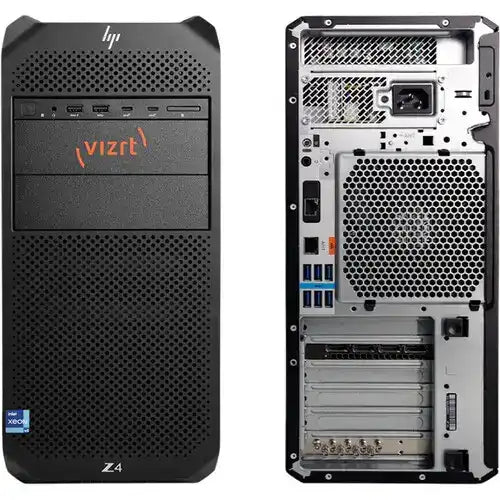

The Vizrt TriCaster Vizion Tower with 8 SDI I/O is a professional live production system combining full IP connectivity with eight bidirectional 12G-SDI ports, giving broadcast engineers and system integrators flexibility to work with both legacy SDI infrastructure and modern NDI networks simultaneously. Built on the HP Z4 G5 workstation platform, this TriCaster Vizion live production system handles up to 44 simultaneous inputs — any mix of NDI and SDI sources — across eight M/E banks with support for UHD 4K60 production. It is purpose-built for broadcast studios, houses of worship, live event production environments, and any installation requiring a high-channel-count NDI switcher with direct SDI camera integration.

Product Description

The TriCaster Vizion Tower with 8 SDI I/O ships with eight configurable bidirectional 12G-SDI ports via an onboard SDI card, supporting 2160p, 1080p, 1080i, and 720p formats at standard broadcast frame rates. These ports can be individually assigned as inputs or outputs, providing operational flexibility for multi-camera shoots, IFB returns, or downstream SDI feeds to broadcast monitors and routers. Combined with 44 NDI inputs and 56 NDI outputs, this system bridges legacy SDI infrastructure with IP-based workflows — a critical capability for facilities in mid-transition to full IP production. The perpetual license is pre-installed and optimized on the HP Z4 G5 workstation. Viz Flowics powers the graphics engine with a 36-month Basic subscription included, covering motion graphics, lower thirds, and broadcast-grade animated overlays. Eight M/E banks, five media players, advanced chroma key, virtual set compositing, and AI production automation tools round out the feature set. A 44-channel NDI-native audio mixer with optional Dante/AES67 licensing handles the full audio workflow. The 3-year hardware warranty and 1-year standard support make this a dependable centerpiece for permanent broadcast installations.

Key Features

• 8 Bidirectional 12G-SDI Ports — Each port configurable as input or output, supporting 12G/3G/HD-SDI at resolutions up to 2160p 59.94.
• 44 Total Inputs — Any combination of NDI IP sources and SDI cameras, up to 44 simultaneous live inputs.
• 8 Mix Effects (M/E) Banks — Eight independent M/E banks for complex multi-layer compositing, titles, and transitions.
• UHD 4K60 Production — Full support for 2160p 59.94 across inputs, mix outputs, and SDI connections.
• 56 NDI Outputs — Route program, preview, and M/E outputs to any NDI-capable device on the network.
• Viz Flowics Graphics — Broadcast-grade integrated graphics platform with 36-month Basic subscription included.
• 5 Media Players + 15 Buffers — Four DDR players, one Sound player, and 15 media buffers for full-featured in-production playback.
• AI Production Automation — AI-assisted tools reduce operator workload during complex live production scenarios.
• Chroma Key and Virtual Sets — Professional chroma keying and virtual set compositing with real-time reflections and animated effects.
• 44-Channel Audio Mixer — NDI-native audio with DSP processing, 8-channel audio, and 4x8x8 routing; Dante/AES67 via optional license.

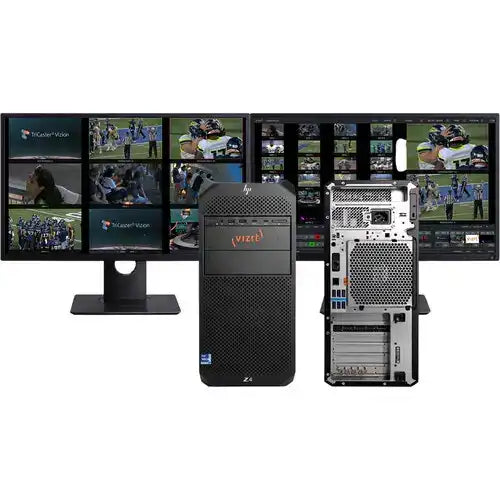

• Up to 4 Multiviewer Displays — Configurable multiviewer layouts for full production monitoring across multiple screens.

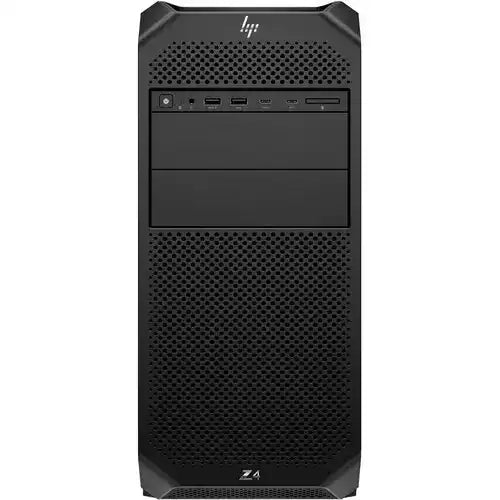

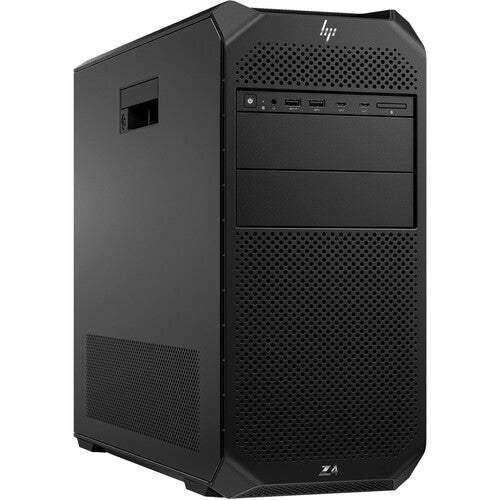

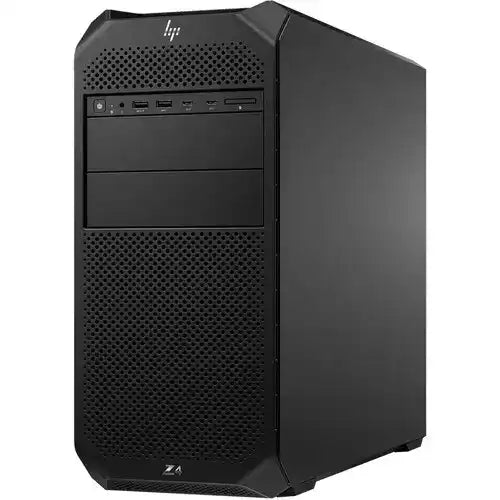

• HP Z4 G5 Workstation Platform — Enterprise-grade hardware chassis with 3-year warranty and thermal management for continuous broadcast operation.

Typical Applications

• Broadcast studio
• House of worship
• Campus athletics
• Auditorium
• Sports production
• Government space
• Corporate all-hands room
• Training room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Can the 8 SDI ports be assigned freely as inputs or outputs?

Yes. All eight SDI ports on the TriCaster Vizion are bidirectional and configurable individually as either inputs or outputs within the TriCaster software interface, providing operational flexibility for different production setups.

Can SDI and NDI sources be mixed freely in a single production?

Yes. SDI sources appear alongside NDI sources in the TriCaster input bus. The system handles frame synchronization internally, so mixed SDI and NDI sources can be switched, keyed, and mixed without additional external frame sync hardware.

What SDI formats are supported?

The 8 SDI I/O card supports 12G-SDI (SMPTE ST 2082), 3G-SDI, and HD-SDI signals, covering 2160p, 1080p, 1080i, and 720p at standard broadcast frame rates (23.98, 24, 25, 29.97, 30, 50, 59.94, 60).

Is this system expandable to 16 SDI ports later?

The 8 SDI configuration uses a single SDI card. Expansion to 16 SDI I/O requires the 16 SDI variant (which ships with dual SDI cards). Field upgrades between SDI configurations should be confirmed with Creation Networks prior to purchase.

What graphics capabilities are included?

The TriCaster Vizion includes Viz Flowics Basic for 36 months, covering motion graphics, animated lower thirds, a 140+ template library, data integrations, and team collaboration features. Extended Viz Flowics tiers are available through Vizrt.

Is the Flex Dual Control Panel compatible?

Yes. The TriCaster Vizion Tower with 8 SDI I/O is fully compatible with the Vizrt Flex Dual Control Panel, connecting via NDI over Ethernet. Bundles combining this system with the Flex Dual panel are available on Creation Networks.
