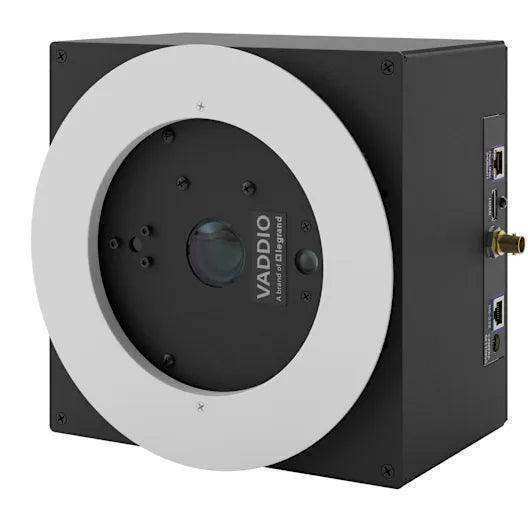

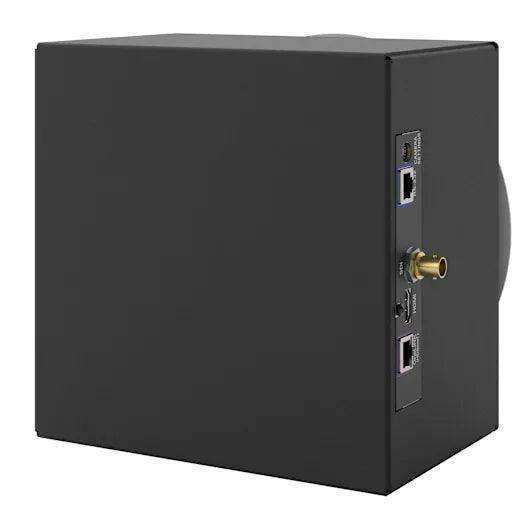

Vaddio DocCAM 4K HDBT Document Camera with OneLINK HDMI - 999-99680-200

A high-performance 4K document camera designed for exceptional image clarity, easy installation, and versatile streaming capabilities, perfect for educational settings, corporate training rooms and meeting spaces where high-resolution overhead imaging is required.

4K clarity that transforms teaching:

• 4K UHD image resolution – up to 2160p/30fps output
• 30x optical zoom for clear, detailed images
• 70.2° horizontal field of view to capture more of the table

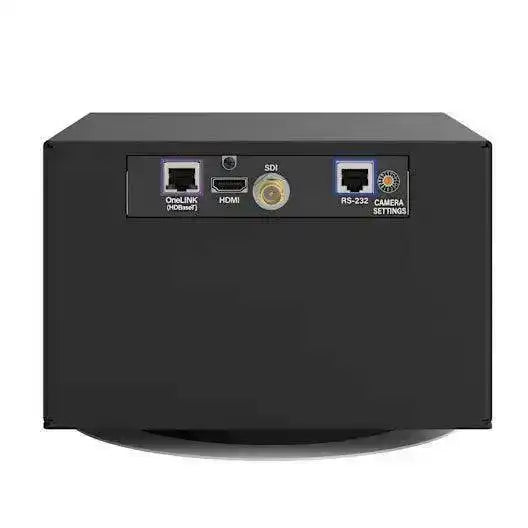

• Simultaneous HDBaseT, HDMI, SDI and IP video output options for flexible connectivity, streaming and recording
• Compatible with Vaddio OneLINK Bridge or OneLINK HDMI extension systems for streamlined installation with video, power and control over a single cable
• Web interface for remote administration and operation
• Low-power laser pointer for centering

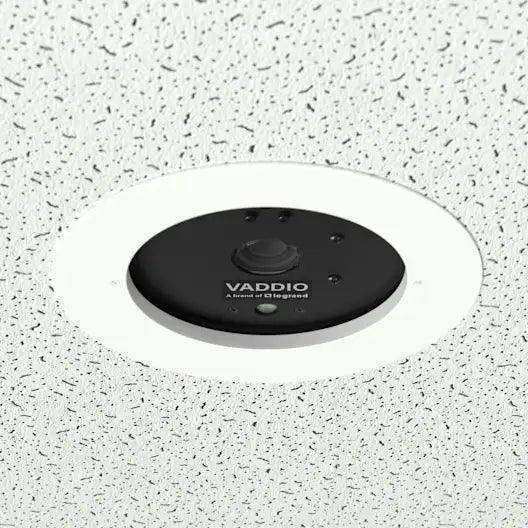

The DocCAM 4K HDBT is Vaddio’s next-generation ceiling-mounted document camera, delivering exceptional 4K UHD image quality and superior detail for classrooms, training rooms, and meeting spaces. With powerful 30x optical zoom and a 70.2° horizontal field of view, it ensures every detail is captured clearly, enhancing learning and audience engagement. Its ceiling-mounted design frees up tabletop space, providing presenters with a clutter-free workspace and seamless integration into any environment.

The DocCAM 4K HDBT has been designed to fit into any environment. Equipped with Vaddio’s popular OneLINK HDBaseT port, the DocCAM 4K HDBT easily connects to Vaddio OneLINK extension systems or other HDBaseT-compatible devices to reduce cabling and extend video, power, and control up to an installation distance of 328 ft (100m).

 The DocCAM 4K supports remote management, enabling presenters and instructors to operate the camera from anywhere on the network. This feature makes it ideal for distance learning and interactive training, allowing for a more dynamic and connected experience.

Common applications:

• Higher education classrooms
• Medical schools and operating theaters
• Technical training sessions
• Video conferencing rooms
• City council chambers
• Courtrooms and evidence viewing
• Art schools - Illustrative demonstrations
• Culinary schools - cooking demos
• Construction and architectural firms - reviewing plans

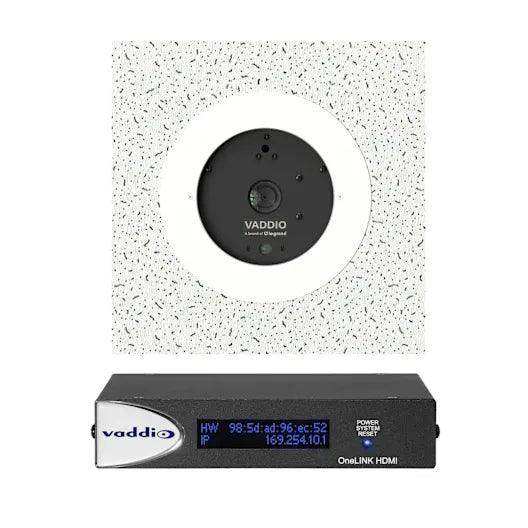

Available as a standalone document camera for connecting to an HDBaseT switcher or outputting directly via HDMI or SDI, or build a full camera system by pairing with an OneLINK HDMI or OneLINK Bridge extension system.

The DocCAM 4K HDBT is a Class 1 Laser Product (IEC 60825-1:2014)

Vaddio Deployment Tool

Easily deploy and manage hundreds of Vaddio devices with the free desktop application.

Download the Deployment Tool >

This Package Includes:

• DocCAM 4K HDBT camera
• White trim ring with 2 qty mounting screws
• Tile Support Brace
• Vaddio IR remote commander for DocCAM 4K HDBT
• OneLINK HDMI Interface
• Quick-start card
