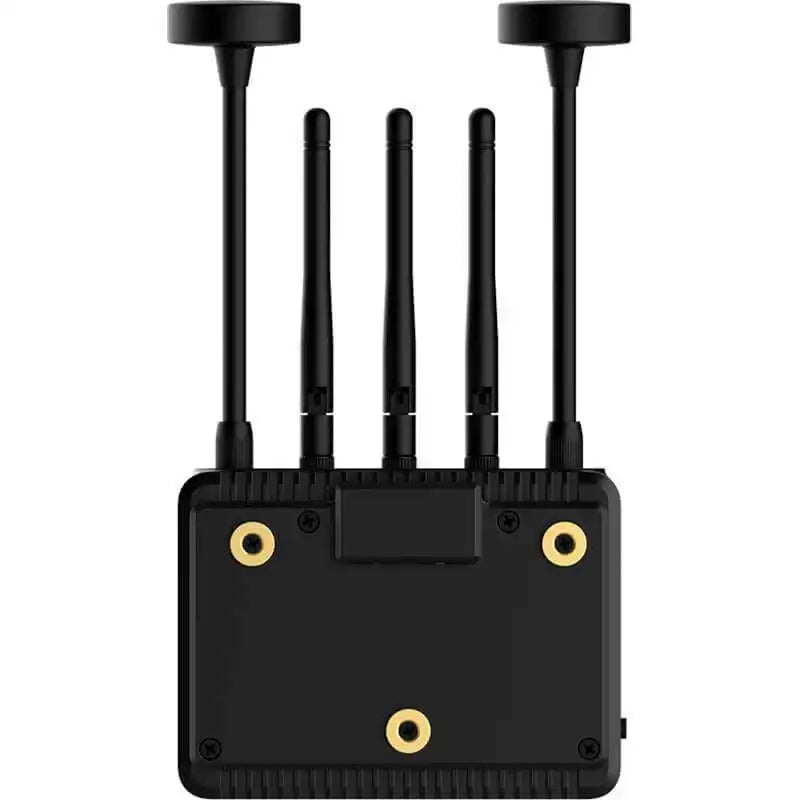

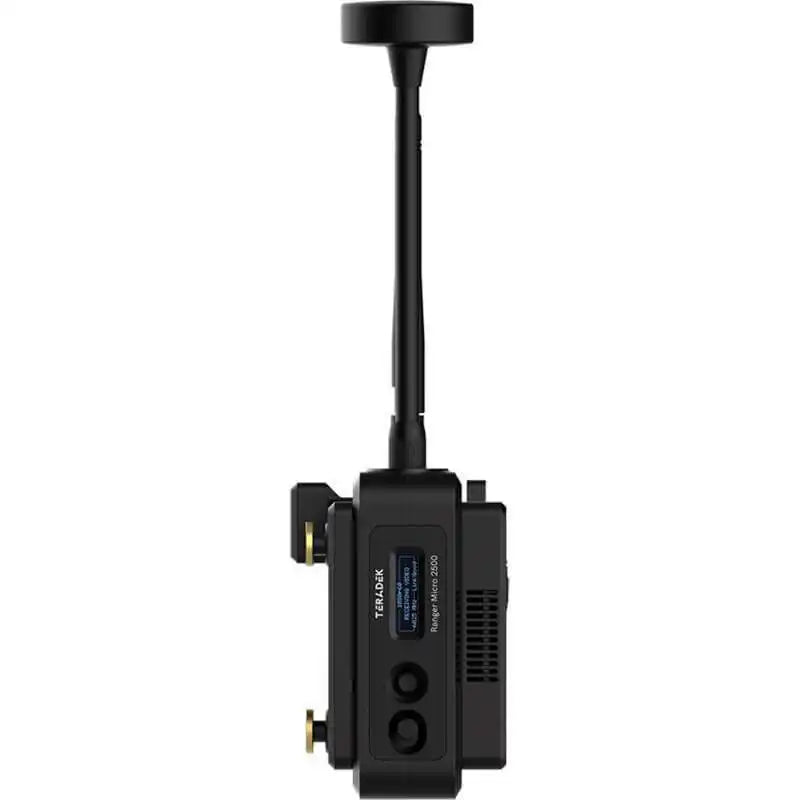

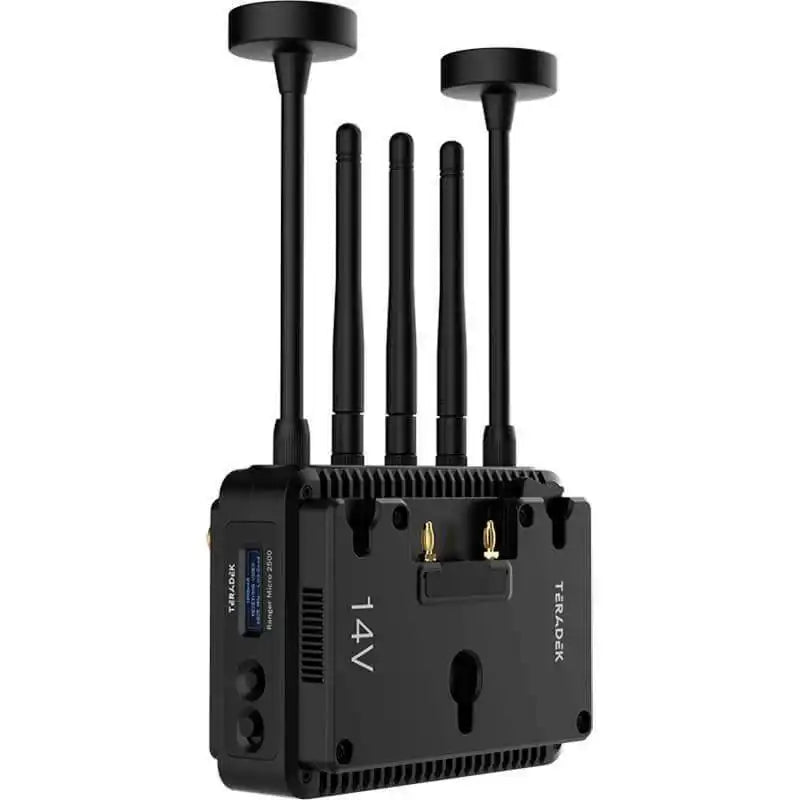

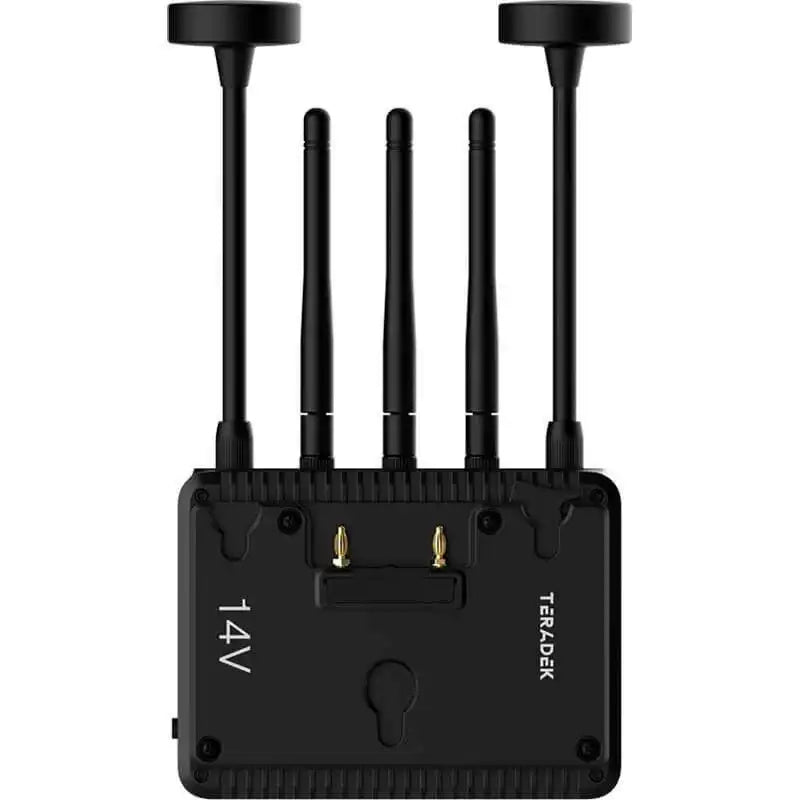

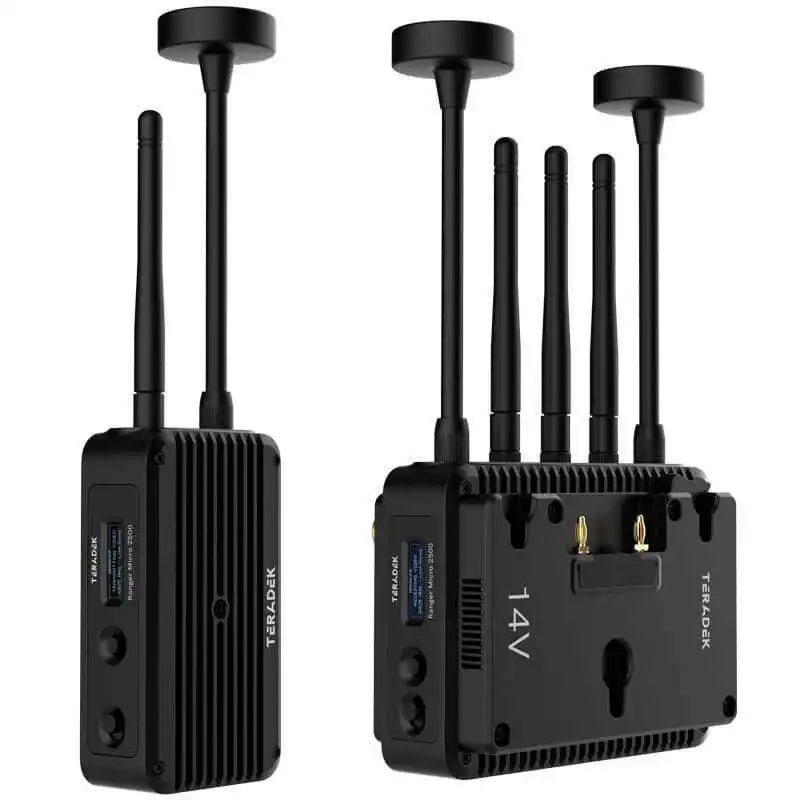

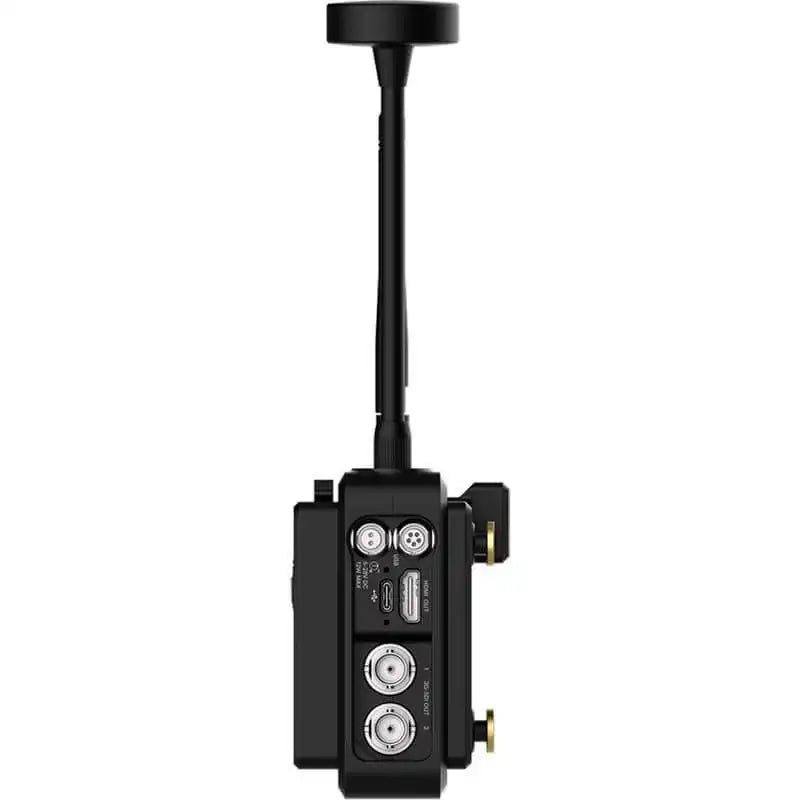

Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter/Receiver...
Product Overview
The Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless TX/RX Kit (V-Mount) delivers professional wireless video transmission up to 2,500 feet line of sight across the 4.9–6.0 GHz frequency band. Compact and lightweight with integrated V-Mount battery plates, this kit is designed for ENG, documentary, and broadcast productions requiring reliable mid-range wireless video with battery-powered portability. Compatible with Teradek Core cloud management and the Bolt Manager app.
Product Description
The Ranger Micro 2500 V-Mount transmits 3G-SDI and HDMI video up to 2,500 feet with visually lossless compression and under 1ms latency. Integrated V-Mount battery plates on both TX and RX units enable hours of untethered operation on standard professional batteries. The system operates across 4.9–6.0 GHz with AES-256 encryption, RSA-1024 key exchange, and noise rejection that supports multiple sets running alongside Wi-Fi infrastructure. Camera metadata, timecode, and start/stop flags transmit wirelessly through the link. The Bolt Manager app for iOS and Android provides Bluetooth-connected spectrum analysis and remote configuration.
Key Features
- 2,500 ft Line-of-Sight Range — Mid-range wireless video for ENG, documentary, and broadcast production.
- 3G-SDI and HDMI I/O — Flexible signal compatibility for HD production workflows.
- V-Mount Battery Plates — Both TX and RX include integrated V-Mount plates for battery-powered operation.
- AES-256 Encryption — RSA-1024 key exchange for end-to-end wireless security.
- Camera Metadata Pass-Through — Timecode, start/stop, and ancillary data over the wireless link.
- Bolt Manager App — iOS/Android Bluetooth app for spectrum analysis and configuration.
Typical Applications
- Broadcast studio and ENG field production
- Documentary and live event production
- Government and public safety video operations
- House of worship multi-camera production
Technical Specifications
| Specification | Value |
|---|---|
| Wireless Range | Up to 2,500 ft line of sight |
| Video I/O | 3G-SDI, HDMI (TX and RX) |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | V-Mount (both TX and RX) |
| Encryption | AES-256, RSA-1024 key exchange |
| Audio | 48kHz 24-bit PCM embedded |
Frequently Asked Questions
- What batteries are compatible with the V-Mount plates?
- Standard professional V-mount batteries from major manufacturers including Anton/Bauer, IDX, and Sony are compatible. Batteries sold separately.
- Is this cross-compatible with Bolt 4K devices?
- Refer to Teradek documentation for cross-compatibility details between Ranger Micro and Bolt 4K series.
- What is the warranty?
- Teradek provides a standard limited warranty. Contact Creation Networks for support and registration.
