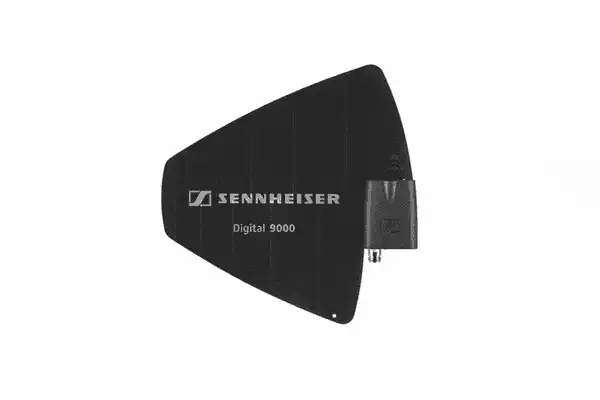

Sennheiser AD 9000 A1-A8 Receiving antenna, active, directional, N connection, 3/8" mounting thread 470-638 MHz - 504711

Product Overview

The Sennheiser AD 9000 A1–A8 is an active directional receiving antenna for the Digital 9000 Series wireless system, covering the 470–638 MHz frequency range (bands A1 through A8). It integrates the AB 9000 active booster directly on the antenna body, providing a built-in linear RF amplifier that compensates for cable loss of up to 14 dB on the coaxial run between the antenna and receiver. The antenna connects to the receiver via N-type connector and mounts via a standard 3/8” thread for use on microphone stands or custom mounting hardware. It is intended for permanent and touring installations where the antenna must be positioned at a distance from the rack-mounted receiver.

Product Description

In professional wireless deployments, antenna placement is often the most critical factor in system reliability. The AD 9000 addresses the technical constraints of long antenna cable runs by incorporating the AB 9000 booster directly into the antenna housing. This active gain stage compensates for up to 14 dB of coaxial cable loss, meaning the antenna can be placed 20 to 30 meters or more from the receiver rack without the RF signal degradation that would otherwise reduce system range and reliability.

The antenna’s directional log-periodic design provides focused gain toward the stage or performance area, which has two practical benefits. First, it increases the effective received signal strength from the desired transmitter direction. Second, the directional pattern reduces pickup of RF interference sources located outside the antenna’s main lobe, improving signal-to-noise ratio in the RF domain before the signal reaches the receiver.

Eight highly selective bandpass filters inside the AB 9000 booster each pass a 24 MHz frequency window within the A1–A8 range. The active filter appropriate for the operating frequency can be remotely selected from the Digital 9000 receiver, blocking out-of-band signals before they reach the first active amplifier stage. This pre-selection architecture significantly reduces the risk of the amplifier being overloaded by strong adjacent RF signals, which is a common failure mode for broadband active antennas operating in congested urban or broadcast RF environments.

The AD 9000 uses an N-type connector for the RF output to the receiver, providing a robust, low-loss coaxial interface appropriate for the long cable runs typical in installed-sound applications. The 3/8” mounting thread is the standard microphone stand thread, compatible with boom arms, antenna masts, and custom brackets used in theatrical rigging and production. A single AD 9000 connects to one of the two antenna inputs on the EM 9046 or other Digital 9000 receivers; two units are typically used per receiver channel pair for full diversity coverage.

Key Features

• Integrated AB 9000 Active Booster — Built-in RF amplifier compensates for up to 14 dB of cable loss, enabling long coaxial runs between the antenna and rack-mounted receiver without signal degradation.
• Eight Selectable 24 MHz Bandpass Filters — Highly selective pre-amplifier filters block out-of-band interference before the active stage; filter selection is remotely controlled from the Digital 9000 receiver.
• Directional Log-Periodic Design — Focused gain pattern increases received signal strength from the stage area while reducing pickup of interference sources outside the main lobe.
• Automatic Cable Loss Compensation — Booster and receiver communicate to measure cable loss on the RF coaxial run and adjust gain automatically for consistent signal levels.
• 470–638 MHz Coverage (A1–A8) — Covers the full A1 through A8 band range used by Digital 9000 system variants operating in this portion of the UHF spectrum.
• N-Type RF Connector — Industry-standard N connector provides a low-loss, mechanically secure coaxial interface for long cable runs to the receiver rack.
• 3/8” Mounting Thread — Standard microphone stand thread enables mounting on boom stands, antenna masts, theatrical rigging brackets, and custom hardware without special adapters.
• Remote Filter Selection — Frequency window selection is managed from the Digital 9000 receiver, eliminating the need to physically access the antenna during frequency coordination.
• Digital 9000 Series Ecosystem Integration — Designed and calibrated for use with the EM 9046 and other Digital 9000 receivers; not intended for use with other Sennheiser wireless series.
• SKU 504711 — Single-unit product; two units per diversity receiver are recommended for full spatial diversity coverage.

Typical Applications

• Large-format theater and Broadway productions using Digital 9000 systems where antennas must be flown or positioned away from the sound rack
• Broadcast studios and news sets with antenna distribution infrastructure requiring long coaxial runs
• Concert touring with Digital 9000 wireless systems requiring front-of-house or stage-lip antenna placement
• Houses of worship with distributed antenna systems and antenna-to-rack cable runs exceeding 10 meters
• Sports and outdoor broadcast where antennas are mounted at distance from the production vehicle or rack room
• Installed-sound venues with permanent wireless infrastructure and conduit-routed antenna cabling

Technical Specifications

Frequently Asked Questions

Q: What makes the AD 9000 an “active” antenna?

The AD 9000 incorporates the AB 9000 booster — an RF amplifier with selective bandpass filtering — directly in the antenna housing. This active gain stage requires a DC power supply, which is delivered from the Digital 9000 receiver via the RF coaxial cable (phantom power over coax). The amplifier compensates for cable loss on the run from the antenna to the receiver, maintaining signal quality over long distances.

Q: How long a cable run can the AD 9000 support?

The AB 9000 booster compensates for up to 14 dB of cable loss. With standard 50-ohm RG-8 or equivalent low-loss coaxial cable, this typically allows runs of 20–30 meters or more depending on cable type and frequency. Higher-loss cable types reduce the maximum practical run length. The system automatically measures and compensates for the actual cable loss in use.

Q: What is the function of the eight bandpass filters?

The eight filters each pass a 24 MHz slice of the 470–638 MHz band. Before the amplifier stage, the filter tuned to your operating frequency is activated, blocking signals outside that 24 MHz window. This prevents strong out-of-band RF signals — such as TV broadcast transmitters or other wireless systems — from saturating the amplifier and causing intermodulation or desensitization. Filter selection is controlled remotely from the receiver.

Q: Is the AD 9000 compatible with Digital 6000 or Evolution wireless systems?

No. The AD 9000 is designed specifically for the Sennheiser Digital 9000 Series and requires the Digital 9000 receiver to supply power over coax and to control filter selection remotely. It is not electrically or mechanically compatible with Digital 6000, EW, or SL wireless systems. For those systems, use the appropriate Sennheiser antenna products.

Q: How many AD 9000 antennas do I need per receiver?

Digital 9000 receivers such as the EM 9046 support two antenna inputs for true diversity reception. For full diversity coverage, two AD 9000 units are recommended per receiver, positioned to provide spatial diversity (typically separated by at least one meter) aimed at the stage area.

Q: What connector type does the AD 9000 use and why?

The AD 9000 uses an N-type connector, which provides lower insertion loss and better mechanical retention than BNC connectors at UHF frequencies. N connectors are standard in professional RF infrastructure for runs over 10 meters and are preferred in permanent installation environments where connection integrity over time is important.

Q: Can the AD 9000 be mounted on a standard microphone stand?

Yes. The 3/8” mounting thread on the AD 9000 is the same as a standard microphone stand thread, so it mounts directly on a boom stand or straight stand without an adapter. For theatrical and touring applications, it can also be attached to custom rigging hardware, antenna masts, or truss-mounted brackets using the same thread.
