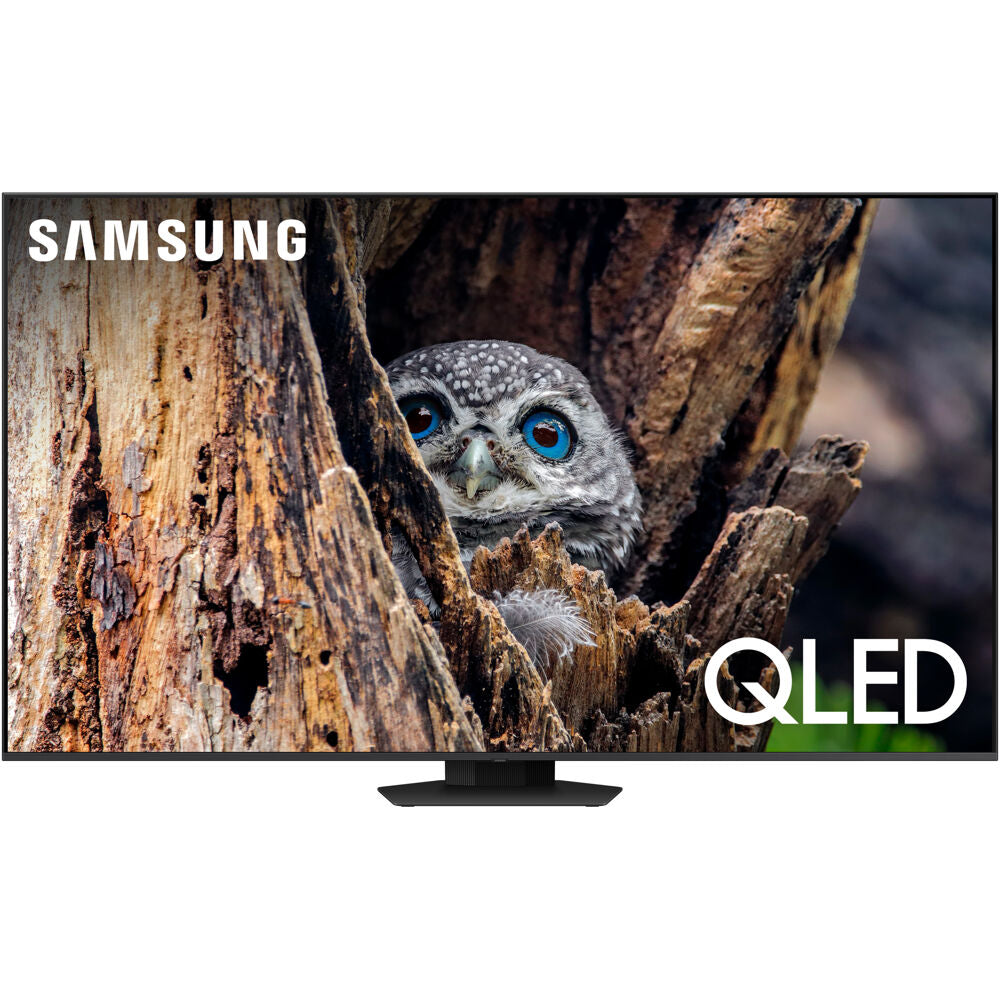

Samsung QN50Q80D – 50" QLED 4K 100% Color Volume, RS-232c

Product Overview

The Samsung QN50Q80D is a 50-inch QLED 4K display delivering 100% Color Volume with Real Depth Enhancer processing, RS-232c control port, and Quantum HDR+ tone mapping. Positioned for AV integrators specifying a controlled QLED display in conference rooms, hospitality, and commercial presentation environments, the Q80D offers broad color gamut accuracy alongside RS-232c serial control for third-party room automation systems. The 60Hz native refresh rate suits applications centered on static content, presentation graphics, and standard video playback rather than high-frame-rate gaming or sports.

Product Description

The QN50Q80D uses Quantum Dot technology to achieve 100% Color Volume, meaning the display maintains its full color gamut output at all brightness levels rather than compressing color at high or low luminance extremes. This characteristic is particularly relevant for color-critical presentation and visualization applications where accurate hue reproduction across the full brightness range is required. Real Depth Enhancer applies object-level contrast analysis to differentiate foreground from background elements, producing a perception of greater image depth without hardware changes. Quantum HDR+ provides dynamic metadata tone mapping for HDR10 and HLG sources. The RS-232c control port enables direct serial communication with AV control processors from Crestron, AMX, Extron, Control4, and compatible platforms, supporting power, source, and picture mode commands from centralized room controllers. Wi-Fi connectivity provides IP-based network access for Samsung SmartThings integration, OTA updates, and Bixby voice assistant operation. The 60Hz refresh rate is appropriate for PowerPoint and slide-based presentations, signage content, video conferencing displays, and standard broadcast content. The RBX SKU designation confirms commercial distribution channel availability for integration projects requiring commercial procurement documentation.

Key Features

• 100% Color Volume — Full color gamut maintained at all brightness levels for accurate color reproduction across HDR and SDR content.
• QLED Quantum Dot Technology — Wide color gamut for broadcast and presentation color space coverage.
• Real Depth Enhancer — Object-level contrast analysis to increase perceived image depth and foreground/background separation.
• Quantum HDR+ — Dynamic tone mapping for HDR10 and HLG source content.
• RS-232c Control Port — Serial AV control integration for Crestron, AMX, Extron, and compatible control systems.
• 60Hz Refresh Rate — Stable frame rendering for presentation graphics, signage, and standard video content.
• Bixby Voice Assistant — Voice-activated source and device control.
• Wi-Fi Built-In — IP connectivity for smart platform, network control, and OTA firmware updates.
• Commercial Channel Distribution (RBX) — Available through authorized commercial AV distribution for project procurement.

Typical Applications

• Conference rooms and boardrooms — RS-232c-controlled presentation display in Crestron or AMX-managed room systems.
• Corporate huddle spaces — High color accuracy display for collaborative content sharing and video conferencing.
• Retail and commercial environments — QLED color accuracy for product visualization and promotional content.
• Training and education rooms — Reliable 4K display for instructor content and distance learning playback.
• Hospitality in-room display — Controlled guest room display with smart platform and serial management capability.

Technical Specifications

Frequently Asked Questions

What is the difference between the Q80C and Q80D for AV integration purposes?

The primary operational difference for AV integrators is the refresh rate: the Q80C supports 120Hz while the Q80D operates at 60Hz. Both include RS-232c control. For applications involving high-frame-rate content, gaming, or broadcast sports, specify the Q80C. For presentation, signage, and standard video content where 60Hz is sufficient, the Q80D is the appropriate choice and may carry a cost advantage.

Does 100% Color Volume affect compatibility with SDR content?

No. The display handles both SDR and HDR source content correctly. 100% Color Volume means color accuracy is maintained regardless of brightness level—a benefit that applies to both SDR and HDR viewing conditions. SDR content is not adversely affected.

Can this display be ceiling or portrait-mounted for digital signage applications?

The QN50Q80D can be VESA-mounted in landscape orientation using a compatible commercial mount. Portrait orientation is physically possible with an appropriate mount, but verify that the smart platform and any connected source devices support portrait mode output before specifying for signage in that orientation.
