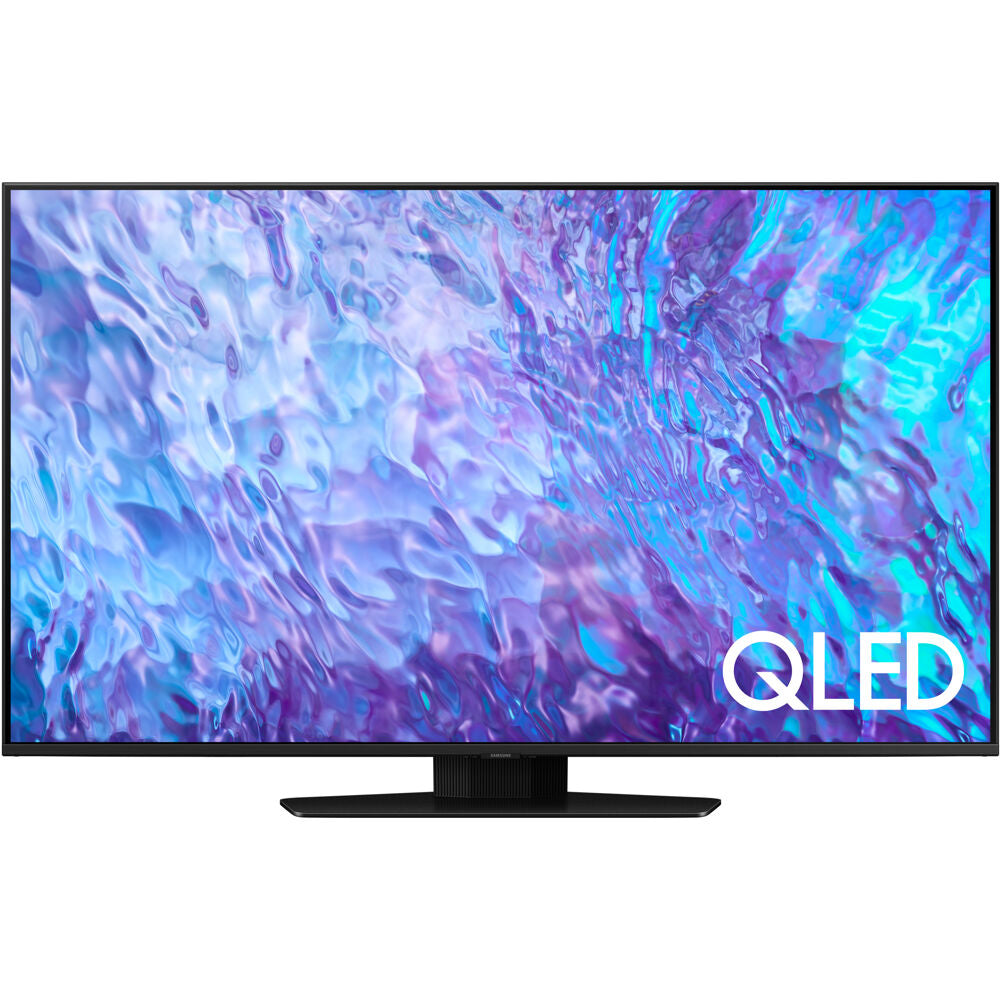

Samsung QN50Q80C – 50" QLED 4K 120Hz Direct Full Array, RS-232c

Product Overview

The Samsung QN50Q80C is a 50-inch QLED 4K display with Direct Full Array backlighting, 120Hz refresh rate, and RS-232c control port for AV system integration. Targeted at commercial AV deployments including conference rooms, digital signage support structures, and education environments, the Q80C provides Quantum HDR+ processing, Dolby Atmos audio decoding, and a Wi-Fi-equipped Tizen smart platform. The RS-232c port enables reliable serial control from AMX, Crestron, and Extron control systems without external IP-to-serial adapters.

Product Description

The QN50Q80C uses Quantum Dot color technology to achieve wide color gamut coverage, producing accurate color reproduction across broadcast and cinema color spaces. Direct Full Array backlighting provides localized dimming across multiple zones, improving contrast performance compared to edge-lit displays and reducing blooming around bright objects on dark backgrounds. The 120Hz native refresh rate supports smooth playback of 24p, 60Hz, and high-frame-rate content from broadcast, streaming, and HDMI 2.1 sources. Quantum HDR+ applies dynamic tone mapping to compatible HDR10 and HLG content. Object Tracking Sound Lite uses multi-channel speaker array processing to follow on-screen movement with audio panning, improving positional audio cues for dialogue and effects. Dolby Atmos decoding is supported for compatible soundbar and AV receiver connections. Bixby voice assistant integration allows voice-based source switching, volume control, and smart home device management from the display. The RS-232c control interface is a critical differentiator for AV integrators specifying this display in systems-controlled environments. Wi-Fi connectivity supports IP control, OTA firmware updates, and smart platform streaming without Ethernet cabling requirements. The Q80C is distributed in the RBX SKU configuration (QN50Q80CAFXZARBX), indicating commercial distribution channel availability.

Key Features

• QLED Quantum Dot Technology — Wide color gamut coverage for broadcast and cinema color space accuracy.
• Direct Full Array — Multi-zone local dimming for improved contrast and reduced blooming on dark content.
• 120Hz Refresh Rate — Smooth motion rendering for broadcast sports, presentations, and high-frame-rate sources.
• Quantum HDR+ — Dynamic tone mapping for HDR10 and HLG content.
• RS-232c Control Port — Serial control for integration with Crestron, AMX, Extron, and compatible AV control systems.
• Object Tracking Sound Lite — Audio panning follows on-screen object movement for improved positional sound.
• Dolby Atmos Decoding — Spatial audio processing for compatible source and playback configurations.
• Bixby Voice Assistant — Voice control for source selection, volume, and connected smart devices.
• Wi-Fi Built-In — IP connectivity for control, firmware updates, and streaming without Ethernet cabling.

Typical Applications

• Conference rooms and boardrooms — Controlled AV environment requiring RS-232c serial integration with room control systems.
• Education and training rooms — High-resolution display for instructor-led content and interactive presentations.
• Small-to-medium digital signage — Content-driven display where internal smart platform eliminates media player requirements.
• Hospitality common areas — Lobby or lounge display with smart platform and Dolby Atmos audio output to soundbar.
• Corporate huddle rooms — Compact high-resolution display for video conferencing and content sharing in small collaboration spaces.

Technical Specifications

Frequently Asked Questions

What control commands are available over RS-232c?

The QN50Q80C supports Samsung's standard RS-232c command set, including power on/off, input source selection, volume control, and picture mode switching. Integration documentation is available through Samsung's commercial display partner portal. Crestron and AMX drivers are available from their respective module libraries.

Does this display support HDMI 2.1 for 4K 120Hz input?

The Q80C series supports 4K 120Hz input over HDMI 2.1 on designated ports. Verify port assignment in the product manual, as not all HDMI ports on this model support the full 48Gbps bandwidth required for 4K 120Hz with HDR.

Is this display suitable for continuous-operation commercial environments?

The QN50Q80C is a residential-grade display rated for typical consumer usage hours. For 16/7 or 24/7 commercial digital signage operation, Samsung's commercial QM or QH series displays with commercial-grade panel ratings and SSSP smart signage platform are the appropriate specification.
