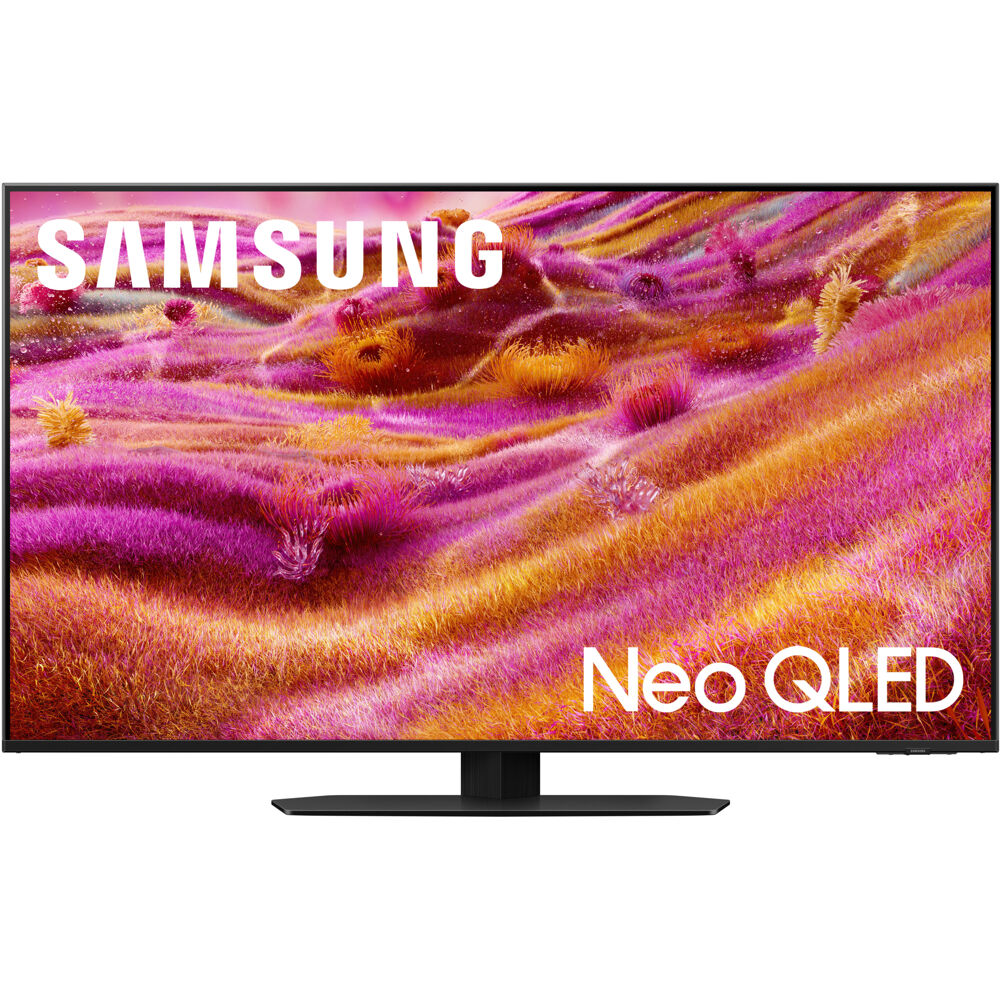

Samsung 50" Neo QLED 4K – Mini LED 120Hz Display with RS-232c (QN90F)

Product Overview

The Samsung QN50QN90F is a 50-inch Neo QLED 4K commercial display built on Mini LED backlighting technology for precision local dimming and HDR performance. Targeted at conference rooms, control centers, and professional AV installations requiring 4K resolution with RS-232c serial control, the QN90F delivers Neo Quantum HDR+ processing and 120Hz refresh in a form factor suited for wall-mounted and table-integrated deployments. Systems integrators specifying Samsung Neo QLED commercial displays will find the full smart platform and serial control port essential for managed AV infrastructure.

Product Description

The QN90F's Mini LED backlight array consists of thousands of ultra-small LEDs grouped into precise dimming zones, allowing the panel to control backlight intensity at a much finer granularity than conventional edge-lit or direct-lit LCD displays. This produces elevated contrast ratios and HDR highlights that approach OLED-tier visual performance while maintaining the brightness levels required for high-ambient-light commercial environments. Neo Quantum HDR+ processing expands the luminance and color gamut of HDR-mastered content, preserving detail in both highlight and shadow regions during presentations, video playback, and digital signage applications. At 120Hz, the display handles live video, motion graphics, and data-intensive content without frame drop artifacts. RS-232c serial control integration allows the display to receive power, source selection, and picture commands from a building automation or AV control system. Samsung TV Plus provides a built-in content delivery layer, reducing dependency on external media players for basic signage and content scheduling workflows. The display is Wi-Fi capable, supporting network-based content management and remote monitoring. Voice control via Samsung's native assistant supports hands-free operation in interactive presentation spaces. For procurement teams comparing Neo QLED versus standard QLED: the Mini LED backlight is the primary differentiator, delivering measurably better black levels and HDR performance per watt. At $1,399.99 (compare at $1,699.99), this represents a 17.6% discount from MSRP.

Key Features

• Neo QLED Mini LED Backlight — Thousands of ultra-small LEDs enable fine-grained local dimming zones, producing superior contrast and HDR performance compared to standard LED backlit panels.
• 3840x2160 4K Resolution — Full 4K pixel density at 50 inches ensures sharp rendering of detailed data visualizations, schematics, and high-resolution video content.
• Neo Quantum HDR+ — Advanced HDR tone mapping preserves peak luminance and shadow detail across HDR10, HDR10+, and HLG-formatted source content.
• 120Hz Refresh Rate — Clean motion handling for live video feeds and animated data dashboards without motion artifacts.
• RS-232c Serial Control — Standard control interface for integration with Crestron, AMX, Extron, and Q-SYS AV control ecosystems.
• Wi-Fi Connectivity — Network access supports remote content management, firmware updates, and integration with networked AV management platforms.
• Samsung TV Plus — Built-in content platform provides scheduled content delivery without requiring a dedicated external media player.
• Voice Control — Onboard voice assistant support for hands-free source switching and volume control in interactive environments.

Typical Applications

• Conference rooms — 4K clarity and 120Hz motion handling support video conferencing and collaborative presentation workflows.
• Control and operations centers — RS-232c control integration and continuous display operation support multi-display command environments.
• Corporate digital signage — Samsung TV Plus and Wi-Fi connectivity enable network-managed content scheduling without external playback hardware.
• Training and education rooms — Full 4K resolution ensures legibility of detailed instructional content at standard room viewing distances.
• Retail point-of-sale environments — Mini LED backlight delivers vivid product imagery with accurate color reproduction in brightly lit retail spaces.

Technical Specifications

Frequently Asked Questions

What is the difference between Neo QLED and standard QLED?

Neo QLED uses a Mini LED backlight array with thousands of individually controlled zones, enabling much finer local dimming than the standard LED backlights used in conventional QLED panels. The result is deeper blacks, brighter highlights, and better overall HDR performance. For commercial AV applications requiring visible contrast differentiation in mixed-lighting environments, Neo QLED is the higher-specification option.

Does the QN90F support RS-232c for AV control system integration?

Yes. The QN50QN90F includes an RS-232c serial port for integration with third-party AV control platforms including Crestron, AMX, Extron, and Q-SYS. Command sets for power, input selection, volume, and picture mode are supported. Refer to Samsung's external control guide for the full command set.

Is this unit the RBX commercial variant?

Yes. The SKU QN50QN90FAFXZARBX designates the RBX commercial-channel variant, which is intended for AV integrators and commercial procurement. This variant may include extended warranty terms and commercial-channel support compared to standard retail SKUs.
