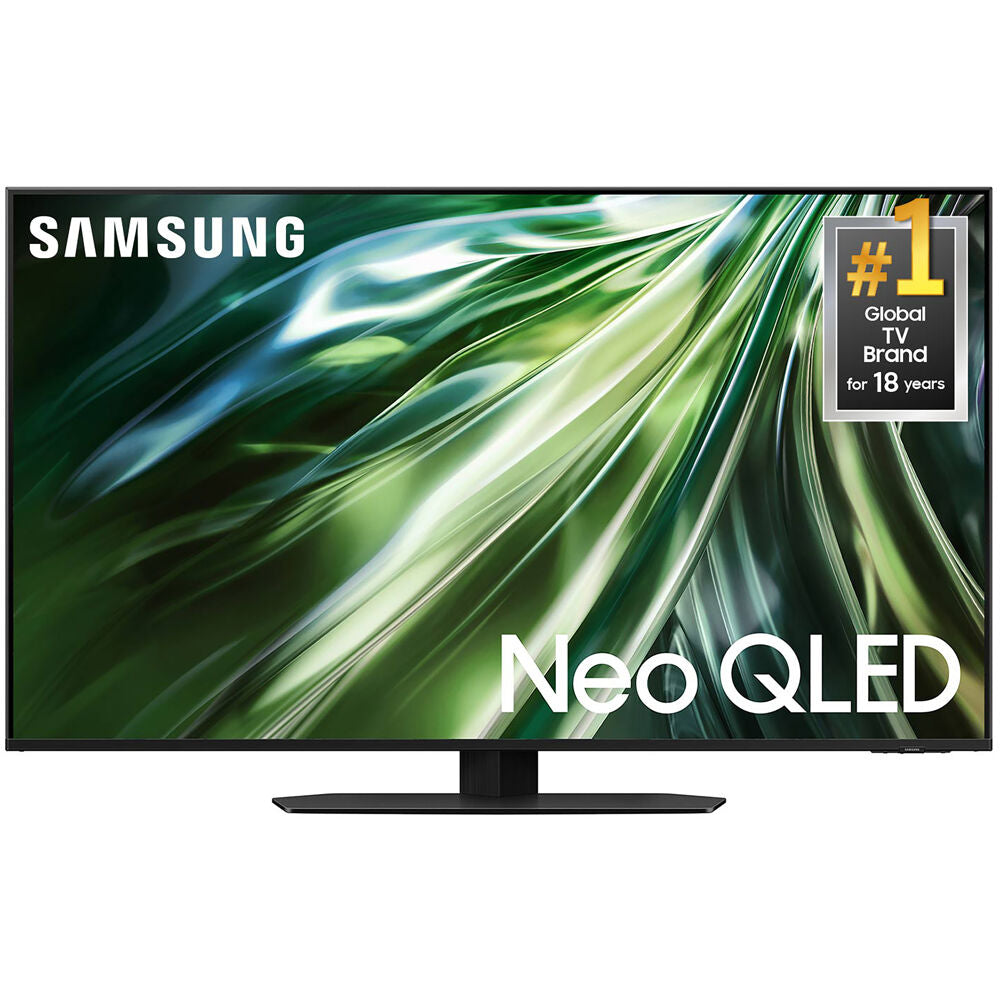

Samsung 43" Neo QLED 4K – Mini LED Dolby Atmos 144Hz RS-232c (QN90D)

Product Overview

The Samsung QN43QN90D is a 43-inch Neo QLED 4K display built on Mini LED backlighting with Neo Quantum HDR, Dolby Atmos audio processing, and RS-232c serial control for AV system integration. At 43 inches, this panel addresses secondary display, breakout room, and side-by-side collaboration use cases where a full 4K Neo QLED panel is required in a compact form factor. Systems integrators specifying Samsung Mini LED commercial displays with RS-232c control and Dolby Atmos audio for managed AV environments will find the QN90D appropriate for rooms where both image fidelity and audio quality are specification requirements.

Product Description

The QN90D uses a Mini LED backlight array — the same core technology as the larger QN90F — enabling precise local dimming across a dense zone array for deep blacks and peak HDR brightness. Neo Quantum HDR processing maps the dynamic range of HDR-formatted source content to the panel's luminance capability, preserving detail in highlights and shadow regions that standard SDR tone mapping would clip. At 43 inches and 4K resolution, pixel density is higher than on larger panels, producing sharp rendering of fine-detail content such as annotated engineering drawings, financial data tables, and high-resolution video at close viewing distances typical of individual workstations and small meeting surfaces. The 120Hz native refresh rate supports clean motion handling for live video feeds and interactive content; the Motion Xcelerator 144Hz mode extends interpolated frame rate to 144Hz for compatible sources, relevant for AV integrators deploying the display in gaming-adjacent or high-frame-rate simulation environments. Dolby Atmos decoding and Object Tracking Sound (OTS) audio processing are included onboard, providing a capable integrated audio solution that reduces the need for supplemental audio hardware in smaller room deployments. RS-232c serial control allows integration with Crestron, AMX, Extron, and other AV control processors for power, source, and volume management via the room control system. Samsung Gaming Hub is present on the platform, though this is primarily relevant to gaming deployment scenarios rather than standard corporate AV use cases. Bixby voice control supports hands-free operation in interactive environments. The QN90D is listed at $1,299.99 with no compare-at price.

Key Features

• Neo QLED Mini LED Backlight — Dense Mini LED array with precision local dimming zones delivers deep blacks and bright HDR highlights beyond the capability of standard LED-backlit QLED panels.
• 3840x2160 4K Resolution at 43 Inches — Higher pixel density than larger 4K panels, producing sharp rendering of detailed content at the close viewing distances typical of small rooms and workstation-adjacent installations.
• Neo Quantum HDR — HDR tone mapping preserves dynamic range detail from HDR10, HDR10+, and HLG source material.
• 120Hz Native / 144Hz Motion Xcelerator — 120Hz native refresh with Motion Xcelerator supporting up to 144Hz for compatible high-frame-rate sources.
• Dolby Atmos Decoding — Onboard Dolby Atmos processing delivers spatial audio from compatible sources, providing a capable integrated audio solution for small room deployments.
• Object Tracking Sound (OTS) — Audio processing tracks on-screen content position to produce audio that corresponds spatially with visual content movement.
• RS-232c Serial Control — Standard control port compatible with Crestron, AMX, Extron, and Q-SYS AV control systems for managed power, source, and display parameter control.
• Samsung Gaming Hub — Built-in gaming platform relevant for mixed-use or simulation-adjacent deployments where high-frame-rate gaming sources are part of the specification.
• Bixby Voice Control — Hands-free control for source switching, volume, and display parameter adjustment in interactive environments.
• Wi-Fi Connectivity — Network integration supports content management, remote monitoring, and firmware update workflows.

Typical Applications

• Small meeting rooms and huddle spaces — 43-inch 4K panel delivers full-resolution presentation capability in rooms where a 55-inch or larger display would be visually oversized.
• Breakout and collaboration rooms — RS-232c integration allows the display to be managed as part of a room control system alongside other AV endpoints.
• Individual workstation display — High pixel density at 43 inches provides legible rendering of dense data content at close viewing distances.
• Simulation and training environments — 144Hz Motion Xcelerator supports high-frame-rate source content relevant to simulation-based training programs.
• Content review and production suites — Neo Quantum HDR and accurate color rendering support professional media review at smaller panel sizes.

Technical Specifications

Frequently Asked Questions

How does Motion Xcelerator 144Hz differ from the 120Hz native refresh rate?

The QN90D has a 120Hz native panel refresh rate. Motion Xcelerator 144Hz is a frame interpolation and processing mode that accepts and processes compatible source signals up to 144Hz, applying motion compensation to deliver smoother perceived motion. For standard commercial AV sources (presentation PCs, video conferencing systems, media players), 120Hz operation is the relevant specification. The 144Hz capability is most relevant for gaming consoles or simulation PCs outputting high-frame-rate signals.

Does the QN90D include RS-232c for AV control system integration?

Yes. The QN43QN90D includes an RS-232c serial port for integration with third-party AV control processors. This allows power on/off, source selection, volume control, and display parameter commands to be issued from a Crestron, AMX, Extron, or Q-SYS control system as part of a room automation sequence. Refer to Samsung's external control guide for the full RS-232c command set.

Is a 43-inch panel appropriate for a conference room primary display?

A 43-inch display is generally appropriate as a primary display in rooms with a maximum viewing distance of 5 to 7 feet, or as a secondary display in larger rooms. For standard conference room primary display applications with viewing distances beyond 8 feet, a 55-inch or larger panel is recommended. The QN90D at 43 inches is well suited for huddle spaces, breakout rooms, and individual workstation deployments.
