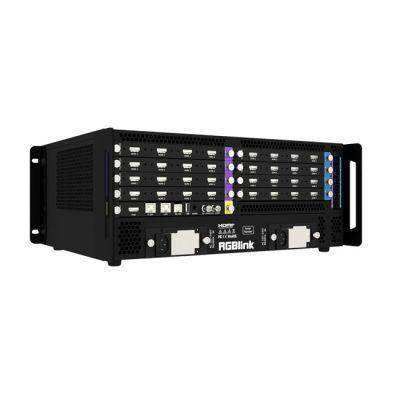

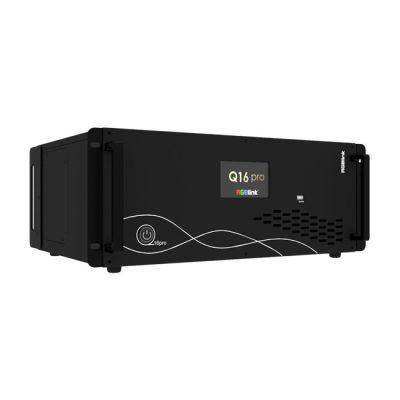

RGBlink Q16pro 8U – High-Density Modular Universal Processor

Product Overview

The RGBlink Q16pro 8U is a high-density, rack-mount universal video processor built on a pure-hardware FPGA architecture for reliable, low-latency performance in permanent commercial AV and digital signage installations. The 8U chassis supports up to 10 input modules and 10 output modules, accommodating configurations as large as 40x40 signal routing, making it a strong choice for large-format video wall processor deployments in corporate command centers, government operations rooms, and broadcast facilities. The Q16pro platform is field-proven for multi-screen applications where 4K source connectivity, EDID management, and hot-swap module support are required.

Product Description

The Q16pro 8U ships as a chassis with motherboard, LCD status display, and a single power supply. Input and output modules are purchased separately and inserted into the 8U bay’s 20 available slots (Output slots 1 through 8 also accept input modules for flexible slot allocation). The FPGA-based processing core handles 12-bit input and output with RGB 4:4:4 color space throughout the signal chain. Each output module supports spanning up to 8 screens without consuming layer budget, allowing very large video wall configurations without additional processing hardware. The Q16pro 8U accepts a broad range of input modules: Quad HDMI 1.3, Quad DVI, Dual DP1.2 + HDMI2.0 4K@60, Quad HDBaseT, Quad 3G-SDI, and a single H.264 IP input module for network video source integration. Output modules include Quad HDMI, Dual HDMI 2.0 4K@60, Quad 3G-SDI, Quad DVI, Quad HDBaseT, and Dual HDMI 1.4. An optional redundant power module (950-0011-02-0) supports dual power supply operation for uptime-critical deployments. Multi-window monitoring displays input and output signal status on-screen for operator awareness. Dual independent OSD rolling subtitles and LOGO overlay are standard. 3D image processing and highly configurable EDID management are built in. The Q16pro is controlled via RGBlink XPOSE software and is deployable in corporate visual messaging, digital signage, boardrooms, and government facilities. Available at creationnetworks.net.

Key Features

• 8U High-Density Chassis — Supports up to 10 input modules and 10 output modules in a single rack frame; output slots 1-8 also accept input modules for flexible configuration.
• Up to 40x40 Routing — Maximum 40-input by 40-output universal routing with a single power supply installed.
• 8-Screen Output Spanning — Each output module supports spanning content across 8 screens without consuming any layer resources.
• 12-Bit RGB 4:4:4 Signal Path — Full 12-bit processing with RGB 4:4:4 color space for professional image quality throughout the processing chain.
• 4K@60 Input and Output — Dual DP1.2 + HDMI2.0 input module and Dual HDMI 2.0 output module support 4K resolution at 60Hz for high-resolution source and display integration.
• Hot-Swap Module Support — I/O modules are hot-swappable for field replacement without system shutdown in permanent installations.
• Redundant Power Option — Optional dual redundant power supply module (950-0011-02-0) for mission-critical deployments.
• Multi-Window Input/Output Monitoring — On-screen monitoring of all active input and output signals simultaneously for operator confidence.
• Dual Independent OSD — Two rolling OSD subtitle channels and LOGO overlay capability on any output.
• 3D Image Processing — Built-in 3D processing for stereoscopic display applications.
• EDID Management — Per-port EDID control and custom resolution support for compatibility with any source or display in the signal chain.
• Seamless Switching — Transitions between signals and scene presets are executed without visible frame drops or glitches.
• XPOSE Software Control — Full system configuration, routing, and scene recall via RGBlink XPOSE over LAN.

Typical Applications

• Government space
• Broadcast studio
• Boardroom
• Commercial meeting space
• Multi-purpose room
• Auditorium

Technical Specifications

Frequently Asked Questions

Does the Q16pro 8U chassis come with input and output modules included?

No. The Q16pro 8U chassis (711-0020-04-0-16) ships with the frame, motherboard, LCD display, and a single power supply. Input and output modules are purchased and configured separately. Contact creationnetworks.net to specify the right module set for your video wall or routing project.

How many total signals can the Q16pro 8U handle?

With 10 input modules and 10 output modules installed, and using quad-channel modules, the Q16pro 8U can handle up to 40 inputs and 40 outputs simultaneously, forming a 40x40 universal routing matrix.

Can input modules be placed in output slots?

Yes. Output slots 1 through 8 accept input modules for flexible slot allocation, allowing integrators to optimize the chassis layout based on specific input/output ratio requirements.

Does the Q16pro 8U support 4K video sources?

Yes. The Dual DP1.2 + HDMI2.0 4K@60 input module (791-0020-08-0) accepts 4K at 60Hz. The Dual HDMI 2.0 4K@60 output module (791-0020-28-0) outputs 4K at 60Hz to compatible displays.

What happens if the power supply fails?

The optional redundant power module (950-0011-02-0) provides a second supply for 8U and larger chassis. With redundant power installed, a single supply failure does not interrupt system operation.

Is the Q16pro 8U suitable for digital signage deployments?

Yes. The Q16pro platform is specifically documented by RGBlink as a deployment target for corporate visual messaging and digital signage applications, in addition to video wall and broadcast uses.

What is the control interface for the Q16pro 8U?

The Q16pro 8U is controlled via RGBlink XPOSE software over LAN. Scene presets can be stored and recalled. For third-party control integration details, contact creationnetworks.net.
