RGBlink Q16pro 2U Universal Processor – Compact Rack-Mount Video Wall Controller

Product Overview

The RGBlink Q16pro 2U Universal Processor is a compact, FPGA-based video wall processor built for installations where rack space is limited but full-featured signal processing is still required. Sharing the same modular I/O architecture as the Q16pro 4U, the 2U chassis accepts RGBlink's range of hot-swappable input and output modules — including HDMI 2.0, DisplayPort 1.2, 3G-SDI, and HDBaseT — enabling flexible deployment across conference rooms, boardrooms, commercial meeting spaces, and digital signage installations. As a 2U rack-mount video wall processor, it delivers 4K signal processing, 12-bit RGB 4:4:4 color handling, OSD overlay support, and seamless source switching in a form factor that fits within standard 2U rack positions. At $1,500, the Q16pro 2U is positioned as the entry point into the Q16pro modular processor family for integrators managing AV system budgets on mid-scale projects.

Product Description

The Q16pro 2U Universal Processor delivers the core processing capabilities of the Q16pro platform in a 2-rack-unit chassis, making it a practical choice for integrators working in equipment rooms with constrained vertical rack space. The FPGA processing engine handles signal routing, scaling, and display wall management with consistent latency across all active channels, independent of the number of sources or outputs being driven simultaneously. Input and output module slots follow the same hot-swap architecture used across the Q16pro line, meaning I/O cards can be exchanged in the field without system downtime — an important consideration for commercial AV installations in occupied buildings or venues with limited maintenance windows. Compatible input modules include Quad HDMI 1.3, Dual HDMI 2.0 with DP 1.2 4K@60, Quad DVI, Quad 3G-SDI, and IP streaming modules. Output module options include Dual HDMI 2.0, Dual DP 1.2, Quad HDMI, Quad DVI, and Quad 3G-SDI. This signal-type flexibility makes the Q16pro 2U a universal video signal processor suitable for mixed-signal environments where multiple signal standards coexist. Color processing is maintained at 12-bit RGB 4:4:4 throughout the chain, providing accurate output on high-quality commercial display panels. OSD overlay support allows operators to place source labels, reference text, or custom graphics on individual output channels directly from the processor without additional overlay hardware. The Q16pro 2U supports control via RS-232 and TCP/IP when paired with the optional Communication Module — which is included in the Q16pro 4U configuration but available as an add-on for the 2U. The unit installs in any standard 19-inch rack and includes mounting hardware. For larger installations requiring more I/O slots, the Q16pro 4U (also available at Creation Networks) provides the same modular architecture in a larger chassis with additional slot capacity.

Key Features

• FPGA Processing Engine — Consistent, low-latency signal processing across all active I/O channels regardless of source count or output configuration.
• 2U Rack-Mount Form Factor — Fits standard 19-inch racks in 2U of vertical space, suitable for equipment rooms and AV rack enclosures where rack height is limited.

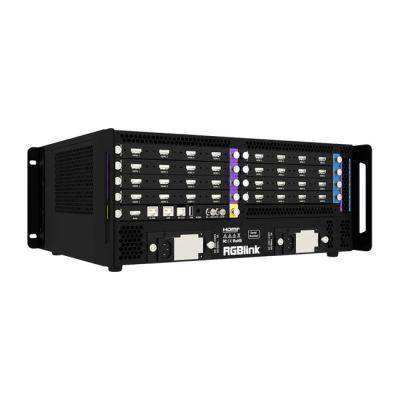

• Modular Hot-Swap I/O Architecture — Input and output cards are field-replaceable without powering down the chassis, minimizing installation and service downtime.
• 4K Signal Processing — Handles input and output resolutions up to 4K on compatible I/O modules, supporting high-resolution commercial display arrays.
• 12-Bit RGB 4:4:4 Color — Full color depth maintained throughout the processing chain for accurate reproduction on professional displays.
• Wide Signal Type Compatibility — Compatible with HDMI 2.0, DisplayPort 1.2, 3G-SDI, HDBaseT, DVI, and IP input/output modules, covering most commercial AV signal environments.
• OSD Overlay Support — Apply source labels or custom graphics to individual output channels without external overlay hardware.
• Seamless Source Switching — Transitions between inputs without black frames or visible artifacts during live operation.
• Optional Communication Module — Adds RS-232 and TCP/IP control interfaces for integration with AMX, Crestron, Extron, and other third-party control systems.

Typical Applications

• Boardroom and conference room video wall control
• Commercial meeting space multi-display installations
• Digital signage control rooms
• Training room multi-source signal processing
• Government space AV signal distribution
• Auditorium and multi-purpose room display management

Technical Specifications

Frequently Asked Questions

What is the difference between the Q16pro 2U and the Q16pro 4U?

The Q16pro 2U occupies 2U of rack space and has fewer I/O module slots than the 4U chassis. Both use the same FPGA processing architecture and modular I/O system. The 4U is better suited for larger installations requiring more simultaneous inputs and outputs. The 4U configuration also ships with the Communication Module pre-installed; on the 2U it is optional.

Are I/O modules included with the Q16pro 2U?

No. The Q16pro 2U chassis ships as the processor unit only; input and output modules are sold separately. Creation Networks can assist with module selection and configuration quoting based on your signal environment.

Can the Q16pro 2U be controlled by Crestron or AMX?

Yes, when the optional Communication Module is installed. The module provides RS-232 and TCP/IP control interfaces compatible with Crestron, AMX, Extron, and other commercial control systems. Custom device drivers may be required depending on the platform.

How many inputs and outputs does the Q16pro 2U support?

The total I/O capacity depends on the module slot count of the 2U chassis and which modules are installed. Contact Creation Networks with your specific source and display counts for an accurate configuration recommendation.

Is the Q16pro 2U suitable for digital signage applications?

Yes. The processor supports flexible output routing and OSD overlays that are commonly used in digital signage control rooms. Paired with appropriate output modules and a display wall, the Q16pro 2U functions as a central signal processor for static or dynamic content distribution.

What is the warranty?

RGBlink products sold through Creation Networks include the manufacturer's standard warranty. Contact our team for applicable warranty terms and any available extended service plans.

Can the Q16pro 2U and 4U share the same I/O modules?

RGBlink's Q16pro I/O modules are designed for the Q16pro platform. Module compatibility across 2U and 4U chassis variants should be confirmed with Creation Networks prior to purchase, as slot connector and configuration differences may apply between chassis generations.
