RGBlink Mini MX – 4K Multi-Channel Live Streaming Video Mixer

Product Overview

The RGBlink Mini MX is a compact 4K streaming video mixer designed for live production operators who need multi-channel video switching, multi-platform streaming, and local recording in a single portable unit. It accepts up to four HDMI 2.0 inputs at 4K@60fps, outputs to dual HDMI monitors, and streams simultaneously to up to four platforms using integrated SRT and RTMP encoding. The 5.5-inch touch screen provides direct operator control without a separate software interface, making this 4K HDMI video switcher with recording practical for houses of worship, corporate all-hands rooms, training rooms, and small broadcast studios. PTZ camera control via VISCA, chroma key compositing, 15 built-in transition effects, and 1TB internal recording storage are included in the base unit at $1,299.

Product Description

The RGBlink Mini MX addresses the production requirements of small to mid-scale live events where a full production switcher is cost-prohibitive or logistically impractical. Four HDMI 2.0 inputs accept sources up to 4K@60fps, including cameras, laptops, presentation computers, and playback devices, enabling a complete multi-source production from a single desktop unit. The 5.5-inch capacitive touch screen provides a direct, responsive interface for source switching, scene recall, and streaming controls without requiring a connected laptop or external control surface. Sixteen preset scenes can be stored and recalled instantly, which is particularly useful in recurring production environments like weekly services at a house of worship or regular corporate all-hands presentations. Fifteen built-in transition effects — including cuts, dissolves, and wipes — give operators creative flexibility appropriate for both live broadcast studios and corporate events. Multi-platform live streaming video mixer functionality allows simultaneous output to up to four streaming destinations (YouTube Live, Facebook Live, Twitch, custom RTMP endpoints) from a single encoder, eliminating the need for third-party streaming software on a separate computer. An integrated 1TB storage drive enables direct-to-disk recording of the program output for post-event archiving or replay. Chroma key compositing allows virtual background integration or title overlay from a chroma key source without external hardware. PTZ camera control via VISCA over IP means operators can pan, tilt, and zoom connected cameras directly from the Mini MX touch interface, reducing the need for a dedicated camera operator. Dual HDMI outputs provide simultaneous program feed to a confidence monitor and an external display or projection system. The Mini MX is compact enough for desk or portable cart deployment, making it suitable for production teams that move between rooms or venues.

Key Features

• Quad HDMI 2.0 Inputs, 4K@60fps — Accepts four simultaneous sources up to 4K resolution at 60 frames per second for high-quality multi-source production.

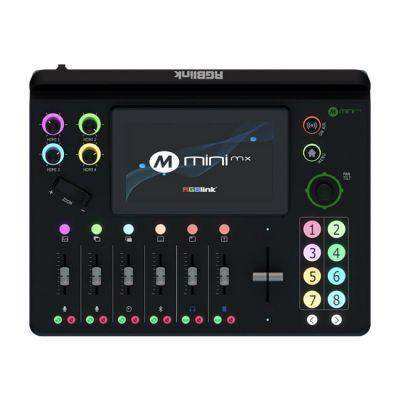

• 5.5-Inch Touch Screen Interface — Direct on-unit control for switching, scene recall, and streaming without a connected computer or external control surface.
• Multi-Platform Streaming to 4 Destinations — Encodes and streams simultaneously to up to four RTMP/SRT endpoints, including YouTube Live, Facebook Live, Twitch, and custom destinations.
• 1TB Internal Recording Storage — Records program output directly to the internal drive for archiving, replay, or post-production use.
• 16 Scene Presets — Store and recall complete scene configurations instantly, suited for recurring productions with consistent source layouts.
• 15 Transition Effects — Includes cuts, dissolves, wipes, and other effects for professional-quality live switching.
• Chroma Key Compositing — Supports virtual backgrounds and lower-third overlays using a connected chroma key source without additional hardware.
• PTZ Camera Control via VISCA — Control pan, tilt, and zoom on VISCA-compatible PTZ cameras directly from the Mini MX touch interface.

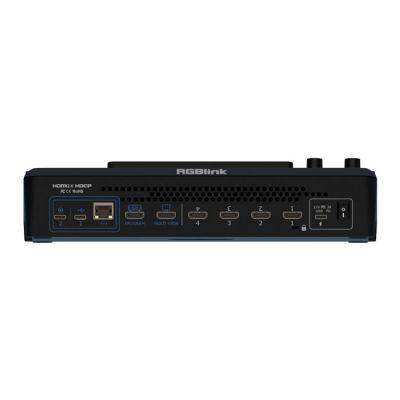

• Dual HDMI Outputs — Simultaneous program output to two displays for confidence monitoring and audience output.

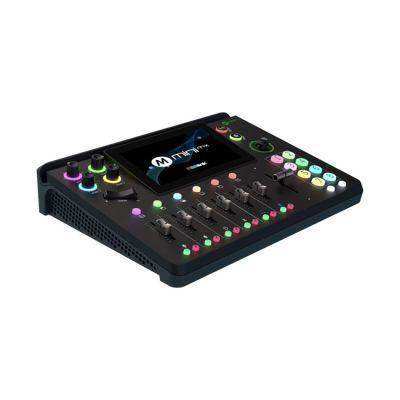

• Compact, Portable Form Factor — Desktop-sized unit suitable for permanent installation or portable deployment across multiple rooms or venues.

Typical Applications

• House of worship live streaming and recording
• Corporate all-hands room and boardroom presentations
• Conference room hybrid meeting production
• Training room multi-source presentation switching
• Broadcast studio compact production switcher
• Multi-purpose room live event production

Technical Specifications

Frequently Asked Questions

Can the Mini MX stream to YouTube, Facebook, and Twitch simultaneously?

Yes. The Mini MX supports simultaneous output to up to four RTMP or SRT streaming endpoints, which can include YouTube Live, Facebook Live, Twitch, and any custom RTMP ingest URL. Each destination is configured separately in the streaming settings.

Does the Mini MX require a connected computer to operate?

No. The unit is fully self-contained with its 5.5-inch touch screen providing direct operator control. A computer is not required for switching, recording, or streaming. Optional software control is available for remote monitoring or configuration.

What PTZ cameras are compatible for control via the Mini MX?

Any PTZ camera that supports VISCA over IP is compatible for direct control from the Mini MX touch interface. The RGBlink Ultra HD 4K PTZ camera is a recommended pairing. VISCA over RS-232 may require an adapter depending on camera model.

How is the 1TB recording storage formatted, and can it be expanded?

The internal 1TB drive records program output in standard video format. Consult the RGBlink Mini MX user manual for supported file formats and drive replacement procedures. Contact Creation Networks for storage expansion guidance.

What internet bandwidth is required for multi-platform streaming?

Bandwidth requirements depend on the encoding bitrate configured for each streaming destination. For four simultaneous HD streams at typical bitrates (3-6 Mbps each), a minimum 25-30 Mbps stable upload connection is recommended. 4K streaming requires significantly higher bandwidth.

Is the Mini MX suitable for permanent rack installation?

The Mini MX is designed as a desktop or portable unit rather than a rack-mount device. For rack-based production environments requiring modular I/O and higher channel counts, the RGBlink Q16pro series is a more appropriate platform.

What warranty applies to the Mini MX?

RGBlink products sold through Creation Networks include the manufacturer's standard warranty. Contact our team for current warranty terms and extended service options.
