PTZOptics 8-Pin Male to Male Cascade Cable

Product Overview

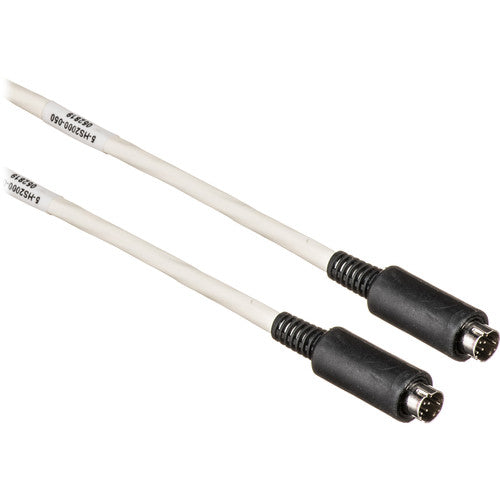

The PTZOptics 8-Pin Male to Male Cascade Cable (VISCA-25) is a 25-foot plenum-rated VISCA cascade cable used to daisy-chain PTZ cameras together for serial RS-232 control. It features an 8-pin mini-DIN connector on each end and connects to the "out" port on one PTZ camera and the "in" port on the next, extending serial control through a multi-camera system from a single joystick or VISCA control source. This cable is a core component of any PTZOptics serial control installation using multiple cameras.

Product Description

In serial PTZ camera control systems, a joystick or PC serial adapter connects via a DB9 extender cable to the first camera in the chain. From that camera's 8-pin mini-DIN output port, the VISCA-25 cascade cable continues the control signal to the next camera, and so on through the entire multi-camera system. This approach eliminates the need to run a separate control cable from the controller to every camera — instead, each camera passes the signal forward through the cascade.

The VISCA-25 uses a plenum (CMP) rating, qualifying it for routing through ceiling plenums and air-handling spaces in commercial buildings without the added cost and labor of separate conduit in most jurisdictions. PTZOptics specifies these cables for use with their serial PTZ cameras, and they are compatible with the 8-pin mini-DIN cascade port found on most PTZOptics SDI and HDMI models.

The cable comes in black and is 25 feet in length — sufficient for most camera-to-camera runs in conference rooms, sanctuaries, and courtrooms where cameras are spaced across the room perimeter. Longer variants (50-foot, 75-foot, and 100-foot) are available for larger installations with greater camera separation distances. Each cable includes a male 8-pin mini-DIN connector on both ends, with no gender adapter required for standard camera port connections.

Key Features

• VISCA Cascade Daisy-Chaining — Connects the 8-pin mini-DIN "out" port of one PTZ camera to the "in" port of the next for multi-camera serial control.
• Plenum-Rated (CMP) — Qualified for routing through air-handling spaces in commercial buildings without conduit.
• 8-Pin Mini-DIN Male to Male — Correct connector type for PTZOptics camera cascade ports.
• 25-Foot Length — Suitable for camera-to-camera runs in most conference room and sanctuary installations.
• Eliminates Home-Run Cabling — Daisy-chain topology reduces total cable quantity versus running individual control cables to each camera.
• Low Latency Serial Control — RS-232 serial cascading provides low-latency PTZ command transmission across the camera chain.
