Planar DirectLight Pro – 198" DHD MicroLED Wall

Product Overview

The Planar DirectLight Pro is a complete 198-inch Double Full HD MicroLED video wall package for premium commercial interiors that demand HDR performance and long-term reliability. This configuration ships deployment-ready with MicroLED cabinets, the WallDirector video controller, wall mounts, trim, cables, and spare modules. Its shallow, ADA-compliant profile and TAA-compliant build make it a strong fit for boardrooms, broadcast studios, and government spaces. Creation Networks specifies, configures, and supports the system for commercial AV integration from design through deployment.

Product Description

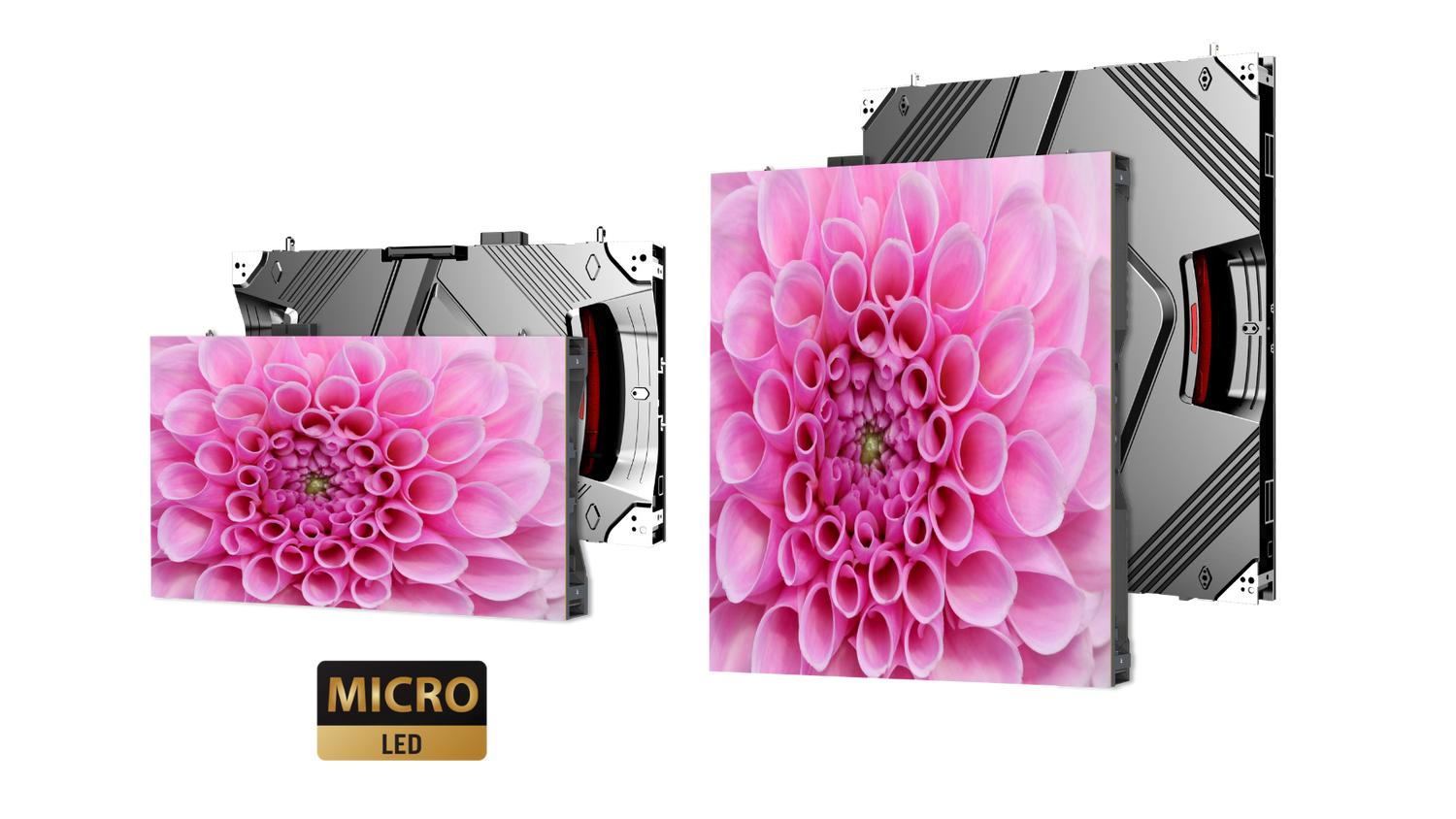

The DirectLight Pro Series pairs fine-pitch MicroLED with Planar's commercial mounting system to deliver a premium direct view LED video wall for demanding rooms. This 198-inch Double Full HD build is supplied as a complete package: MicroLED cabinets, a WallDirector video controller, mounting structure, trim, interconnect cabling, and spare modules. The Series spans pixel pitches from 0.9mm to 1.8mm and offers a high-brightness model at 2,000 nits or a low-power model at 500 nits to match room lighting and energy targets. A 10,000:1 contrast ratio, brightness and color uniformity of 97% or better, and a color gamut greater than 93% DCI-P3 produce accurate, consistent images across the array. A 3,840Hz refresh rate and adjustable 3,000-10,000K color temperature support flicker-free on-camera use in a broadcast studio or recorded boardroom. With an installed depth under four inches, the wall meets ADA Standards for Accessible Design for protruding objects, and the Series is TAA compliant for government and regulated procurement. The displays are HDR-ready and rated for 24x7 operation, and they carry Planar's EverCare Lifetime Limited Warranty. For lower-cost COB alternatives or outdoor models, compare options in the Planar video wall collection at Creation Networks. Our team can confirm pixel pitch, brightness model, and controller capacity for your application before purchase.

Key Features

• Fine-pitch MicroLED — Series pitches from 0.9mm to 1.8mm support close viewing in premium interiors.
• HDR-ready imaging — 10,000:1 contrast and >93% DCI-P3 color gamut deliver accurate, high-impact content.
• Uniformity at 97%+ — Brightness and color uniformity of 97% or better keep large walls visually consistent.
• Brightness options — 2,000-nit high-brightness or 500-nit low-power models match lighting and energy goals.
• On-camera ready — 3,840Hz refresh and 3,000-10,000K adjustable color temperature suit broadcast and recorded meetings.
• ADA-compliant depth — Installed profile under four inches meets ADA Standards for Accessible Design.
• TAA compliant — Supports government and regulated procurement requirements.
• EverCare Lifetime Limited Warranty — Long-term coverage backs 24x7 commercial operation.
• Complete package — Includes WallDirector controller, mounts, trim, cables, and spare modules.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• Broadcast studio
• All-hands room
• Government space

Technical Specifications

Series specifications sourced from Planar. Final pixel pitch and brightness model depend on the configured build; contact Creation Networks to confirm for your project.

Frequently Asked Questions

What is included in this complete package?
The system includes the MicroLED cabinets for a 198-inch Double Full HD wall, the WallDirector video controller, wall mounts, trim, interconnect cables, and spare modules.

Is this display TAA compliant for government purchase?
Yes. The DirectLight Pro Series is TAA compliant, and its sub-4-inch installed depth meets ADA Standards for Accessible Design — both relevant to government and regulated procurement.

How does it integrate with our AV system?
Content is driven through the included WallDirector controller from standard AV sources, and the wall can be incorporated into broader control and signage platforms. Share your source and control requirements and we will confirm the signal path.

High-brightness or low-power — which model should we order?
The 2,000-nit model suits brighter rooms and high-impact content; the 500-nit low-power model reduces energy use in controlled lighting. We can recommend based on your room and content.

What warranty applies?
The Series is backed by Planar's EverCare Lifetime Limited Warranty. Creation Networks can confirm coverage details for your order.

Do you provide installation and commissioning?
Yes. We support specification, configuration, and deployment for commercial AV integrators and end users, with assisted installation available separately.
