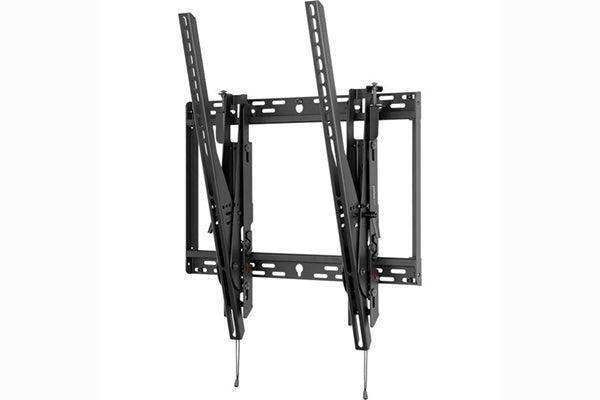

STP680 – Peerless-AV SmartMount Universal Portrait Tilt Wall Mount for 46"–90" Displays
The Peerless-AV STP680 SmartMount Portrait Tilt Wall Mount is designed specifically for portrait-orientation flat panel installations on 46"–90" displays weighing up to 350 lb, featuring Increlok tilt technology with lockable positions from -5° to 15° in 5° increments.
Product Description
The STP680 is built for integrators deploying large-format displays in portrait orientation, a configuration increasingly common in digital signage, retail, and wayfinding applications where tall, narrow content formats are preferred. The open wall plate design allows full access to the wall surface behind the mount, accommodating in-wall conduit, junction boxes, and cable management work without the constraints of a closed-back plate.
Post-installation adjustment is a core capability of the STP680. Up to 1.63" of lateral shift is available after the display is mounted (amount varies by display mounting hole spacing), allowing the display to be centered relative to architectural features without relocating the wall plate. The Increlok tilt technology locks the tilt angle in fixed increments, preventing display movement from vibration or accidental contact in busy environments.
Auto-latching adapter rails provide an audible confirmation click when the display is properly seated on the wall plate, reducing the risk of improper installation. Built-in kickstands hold the display away from the wall during cabling and maintenance. Quick-removal drawstrings allow easy rear-panel access and can be removed for theft-resistant installations in public-facing deployments. Available at Creation Networks.
Key Features
- Portrait orientation design: Purpose-built for portrait-mounted large-format displays from 46" to 90", supporting digital signage, menu boards, wayfinding, and retail applications.
- Increlok tilt technology (-5° to 15° in 5° increments): Locks the tilt angle at a fixed increment using an Easy-Grip ratcheting handle to prevent unwanted movement after installation.
- Up to 1.63" post-installation lateral shift: Allows horizontal display position fine-tuning after mounting without relocating the wall plate, depending on the display's mounting hole spacing.
- Open wall plate design: Provides full access to the wall surface for electrical work, conduit placement, and cable management during and after installation.
- Auto-latching adapter rails with audible click: Confirms proper display seating on the wall plate during installation to prevent unsecured mounting.
- Built-in kickstands: Hold the display safely away from the wall during cable routing and maintenance without requiring a second installer to support the panel.
- Quick-removal drawstrings: Leave in place for easy rear-panel access, or remove for a theft-deterrent installation in public spaces.
- Scratch-resistant fused epoxy finish: Durable surface treatment maintains appearance in demanding commercial installation environments.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | STP680 |
| Display Size Range | 46" to 90" |
| Maximum Load Capacity | 350 lb |
| Display Orientation | Portrait |
| Tilt Range | -5° to +15°, lockable in 5° increments (Increlok) |
| Lateral Adjustment | Up to 1.63" post-installation |
| Wall Plate | Open design |
| Adapter Rails | Auto-latching with audible click |
| Finish | Scratch-resistant fused epoxy, Black |
