Peerless-AV SR598-HUB2 – SmartMount Cart for 85" Surface Hub

Product Overview

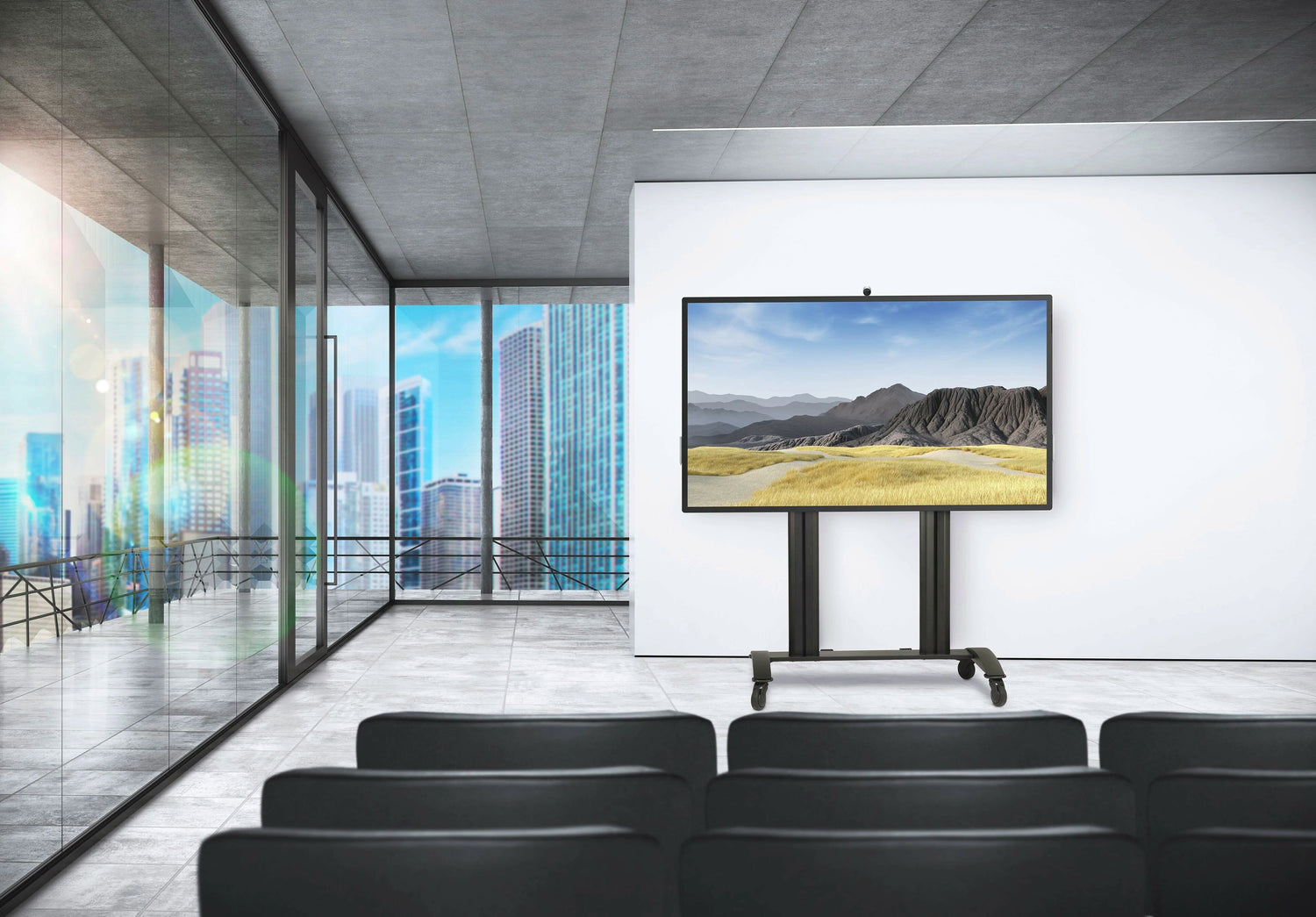

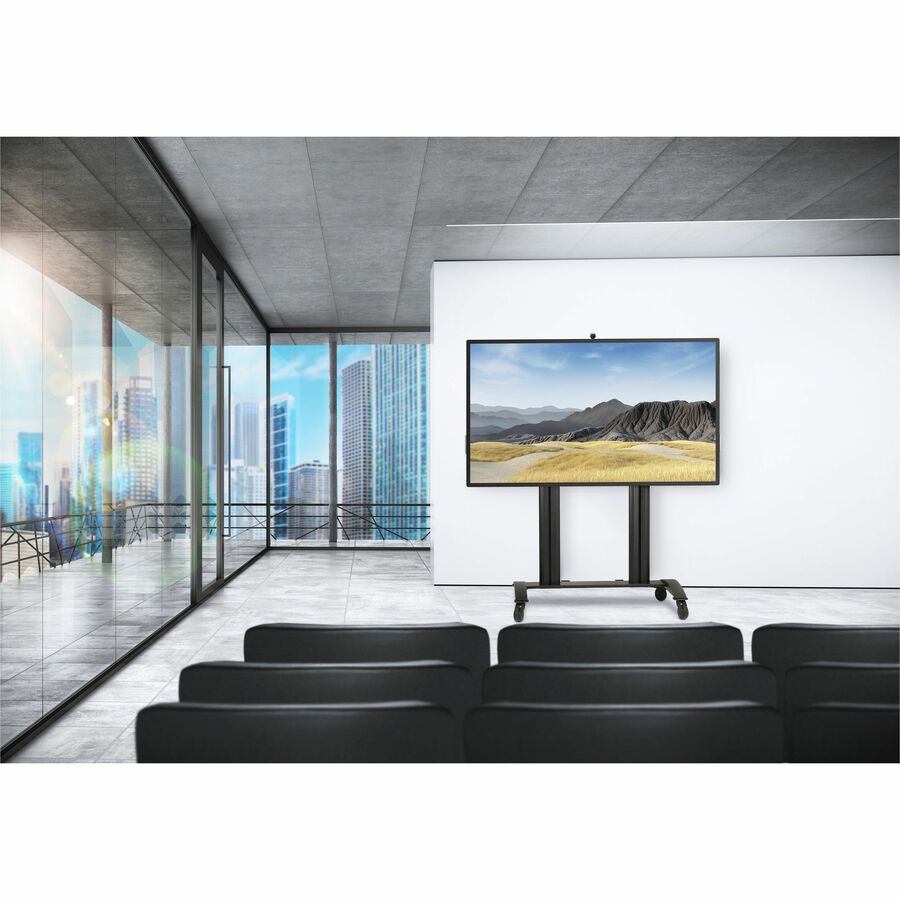

The Peerless-AV SR598-HUB2 is a purpose-built Microsoft Surface Hub 2S cart engineered for the 85" Surface Hub 2S and Surface Hub 3. This SmartMount flat panel cart pairs a pre-assembled base with a 300 lb load capacity and integrated cable management, making it a practical mobile display cart for conference rooms and shared collaboration spaces. Four 4" casters — two locking — let integrators reposition the display between rooms without disassembly. The open-frame universal adaptor accommodates the 900 x 600mm mounting pattern and clears the Surface Hub 2S compute module using the included spacers and custom-length bolts.

Product Description

Designed specifically for the 85" Microsoft Surface Hub 2S, the SR598-HUB2 gives commercial AV integrators a stable, rollable platform for a large interactive display without permanent wall structure. The pre-assembled base speeds deployment on site and delivers the rigidity a 300 lb-class display demands, while the textured black powder-coat finish resists fingerprints and dust in high-traffic commercial meeting spaces. Because the display and the optional ACC-MS component shelf can be positioned anywhere along the aluminum columns (up to 60" at center), the cart can be set to a comfortable viewing height for seated boardroom use or standing huddle-room collaboration.

Integrated cable management contains and conceals power and signal cabling for a clean, professional installation, and the open-frame adaptor helps prevent interference with the display's rear inputs. Five degrees of negative adjustment keeps even the heaviest displays level, and the large 4" swivel casters — two of them locking — move easily across tile or carpet and lock the cart in place once positioned. For rooms where the cart stays put, four plastic base pads ship in the box as an alternative to the casters. As a mobile display cart with cable management, the SR598-HUB2 suits organizations standardizing on Surface Hub for hybrid meetings across multiple rooms. The unit ships RoHS-compliant and is backed by a Peerless-AV lifetime limited warranty. Assembly is required and all Surface Hub 2S mounting hardware is included.

Key Features

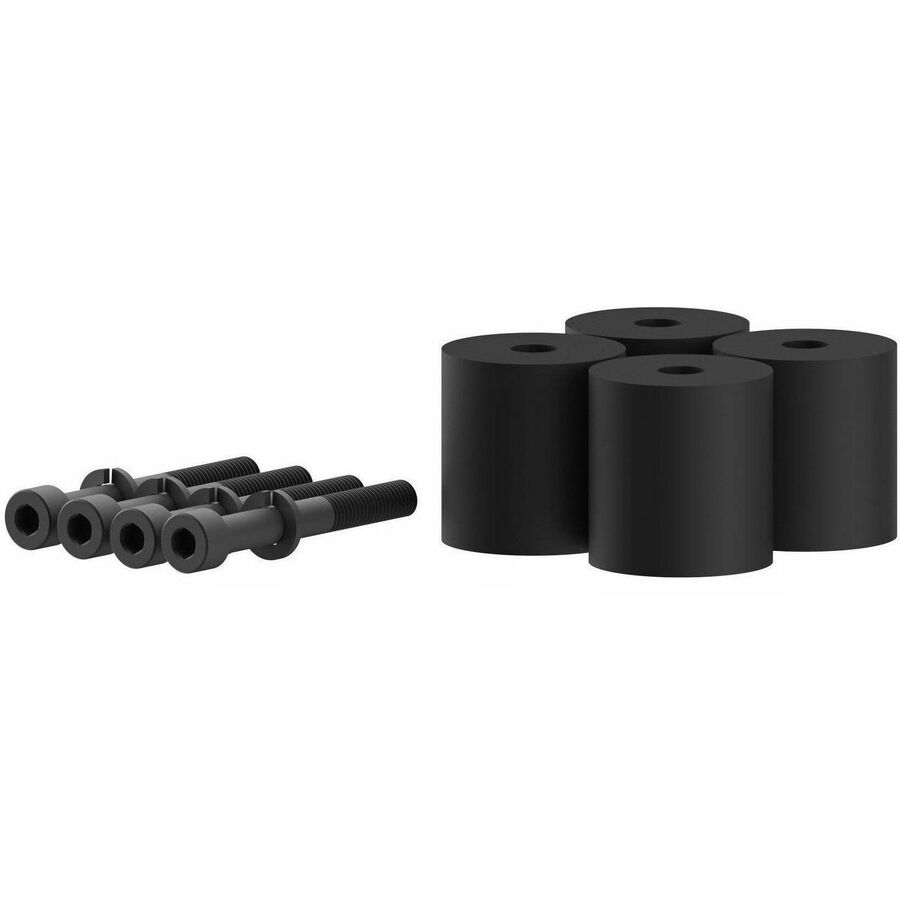

• Purpose-built for Surface Hub — Engineered specifically for the 85" Microsoft Surface Hub 2S and Surface Hub 3, with included spacers and custom-length bolts that clear the compute module.
• 300 lb load capacity — Supports the full weight of the 85" Surface Hub 2S with margin for the mounting hardware and optional accessories.
• Pre-assembled base — Ships assembled to provide rigidity and stability while cutting on-site installation time.
• Adjustable display height — The display and optional component shelf can be positioned anywhere along the columns, up to 60" at center, for seated or standing rooms.
• Integrated cable management — Protects, contains, and conceals cabling for a clean, professional commercial installation.
• Open-frame adaptor — Helps prevent interference with the display's rear inputs and cabling.
• 5° negative tilt adjustment — Keeps heavy displays level and squared to the room.
• Large 4" casters — Four swivel casters (two locking) roll smoothly on tile or carpet and lock the cart in place when positioned.
• Textured black powder coat — Durable finish that resists fingerprints and dust in high-use environments.
• Base pads included — Four plastic base pads allow a fixed, caster-free setup when mobility is not required.
• Lifetime limited warranty — Backed by Peerless-AV and RoHS compliant.

Typical Applications

• Conference room — Mobile Surface Hub deployment for scheduled and ad-hoc meetings.
• Boardroom — Height-set interactive display for executive presentations and reviews.
• Huddle room — Rollable collaboration display shared across small team spaces.
• Training room — Repositionable large-format display for instruction and workshops.
• All-hands room — Movable Surface Hub for larger group sessions.
• Multi-purpose room — Flexible display that relocates between rooms as needs change.
• Commercial meeting space — Standardized Surface Hub mobility across a facility.

Technical Specifications

Frequently Asked Questions

Which displays is the SR598-HUB2 compatible with?
It is engineered specifically for the 85" Microsoft Surface Hub 2S and is also used with the 85" Surface Hub 3. The included spacers and custom-length bolts provide the correct clearance around the Surface Hub 2S compute module. It is not intended as a universal cart for arbitrary displays.

What is the mounting pattern, and will it fit the Surface Hub's VESA layout?
The cart supports up to a 900 x 600mm pattern and accommodates the 600 x 600mm VESA pattern of the 85" Surface Hub 2S. The open-frame universal adaptor is designed to clear rear inputs and cabling.

How much installation and assembly is involved?
Assembly is required, but the base ships pre-assembled to reduce on-site time. A typical two-person installation involves attaching the aluminum columns, fitting the universal adaptor and spacers to the Surface Hub, and setting the display height. All Surface Hub 2S mounting hardware is included.

Can I add a shelf for a video bar, codec, or laptop?
Yes. The optional ACC-MS SmartMount component shelf mounts anywhere along either column and repositions by lifting. Peerless-AV also offers a video conferencing camera shelf (ACC-VCS) and laptop arm (ACC-LA) for AV system integration.

How are cables managed for a clean integration?
Integrated cable management runs along the columns to contain and conceal power and signal cabling. This keeps the installation professional and protects cabling as the cart is moved between rooms.

Can the cart be used in a fixed position instead of rolling?
Yes. Four plastic base pads are included as an alternative to the casters for a stationary setup. When mobility is needed, the two locking casters hold the cart in place once positioned.

What warranty and support come with it?
The SR598-HUB2 carries a Peerless-AV lifetime limited warranty and is RoHS compliant. For pre-sales specification support or post-sale assistance, contact Creation Networks.
