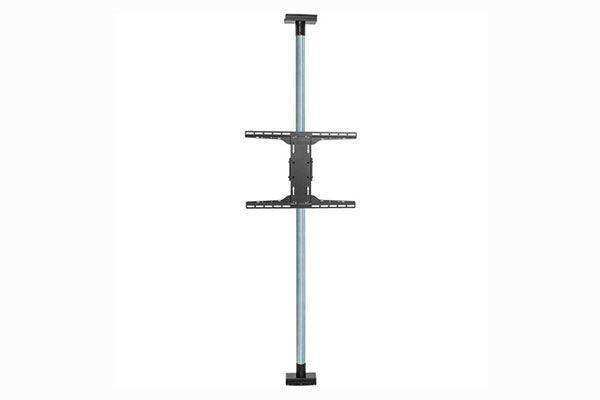

Peerless-AV MOD-FCSKIT300-B Floor-to-Ceiling Mount for 39" to 75" Displays (Black)

MOD-FCSKIT300-B – Peerless-AV Modular Series Floor-to-Ceiling Display Mount

The Peerless-AV MOD-FCSKIT300-B is a floor-to-ceiling display mount from the Modular Series, designed for 39" to 75" flat panel displays in commercial AV environments where a wall mount is not feasible and a permanent ceiling installation is not desired.

Product Description

Floor-to-ceiling pole mounts occupy an important position in commercial AV system design: they allow display placement in open floor areas without wall mounting, without overhead structural attachment, and without permanent modification to the building envelope. The MOD-FCSKIT300-B achieves this by using a tension pole system that presses between the floor and ceiling, providing a stable vertical column that supports the display mount interface.

With a maximum load capacity of 374 lb and a pole diameter of 2", the MOD-FCSKIT300-B is substantially more capable than consumer-grade display stands. The VESA 700 x 400mm compatibility covers large commercial displays up to 75", and the integrated tilt, swivel, and locking features give the installer control over display orientation after the pole is tensioned. The black finish and 118.1" height accommodate standard commercial ceiling heights.

Because no wall or ceiling drilling is required, the MOD-FCSKIT300-B is particularly well suited to leased commercial spaces, temporary event setups, and retail environments where display locations change seasonally. RoHS environmental certification confirms compliance with commercial procurement requirements in many markets.

Key Features

• No Wall or Ceiling Drilling Required — The tension pole system is secured between the floor and ceiling without fasteners, leaving both surfaces undamaged upon removal and satisfying lease restrictions in many commercial spaces.
• 374 lb Maximum Load Capacity — Rated well above the weight of the largest displays in its supported size range, providing a significant safety margin in high-traffic commercial environments.
• 39" to 75" Display Compatibility — VESA 700 x 400mm compatibility covers the full range of large commercial flat panel displays used in digital signage and information display applications.
• Tilt and Swivel Adjustability — Post-installation tilt and swivel allow the display to be oriented toward the desired audience area without moving the pole.
• Locking System — Integrated locks secure tilt and swivel positions, preventing unintentional display movement in active commercial environments.
• Integrated Cable Management — Cables are routed through or along the pole assembly for a clean, professional appearance in customer-facing spaces.
• 2" Modular Series Pole Diameter — The standardized Peerless-AV Modular Series pole interface allows the display mount interface to be swapped or upgraded with compatible Modular Series accessories.
• RoHS Certified — Compliant with Restriction of Hazardous Substances requirements, meeting commercial and government procurement environmental standards.

Typical Applications

The MOD-FCSKIT300-B is the appropriate choice for commercial AV deployments where wall mounting is not available or not permitted and overhead structural attachment is not desirable. Specific use cases include retail floor digital signage, trade show and event display installations, open office and collaboration area displays, restaurant and hospitality digital menu and information boards, and leased commercial spaces where tenants are contractually restricted from making structural modifications. The tool-free removal capability also makes it a practical choice for display installations that must be relocated on a regular basis.

Technical Specifications

Frequently Asked Questions

Does the MOD-FCSKIT300-B require drilling into the floor or ceiling?

No. The tension pole design is secured by compression between the floor and ceiling surfaces. No fasteners, anchors, or drilling are required in either surface. This makes it suitable for leased spaces and temporary installations where structural modification is not permitted.

What is the ceiling height range this mount accommodates?

The 118.1" maximum pole height covers ceilings up to approximately 9–10 feet. For higher ceilings, consult the Peerless-AV Modular Series for extended pole configurations. The pole must maintain firm tension contact with the ceiling to provide a stable mount, so the ceiling height must fall within the pole’s adjustment range.

Is this mount appropriate for permanent digital signage installations?

Yes. While the mount can be removed without damage, it is equally suitable for permanent or semi-permanent signage installations. The heavy-duty load rating and locking mechanisms make it appropriate for long-term deployments in retail stores, lobbies, and other commercial environments where the display location is fixed but wall mounting is not practical.
