Peerless-AV KOF-OPT-ELECTRICAL – Power Distribution Unit for KOF555
Product Overview

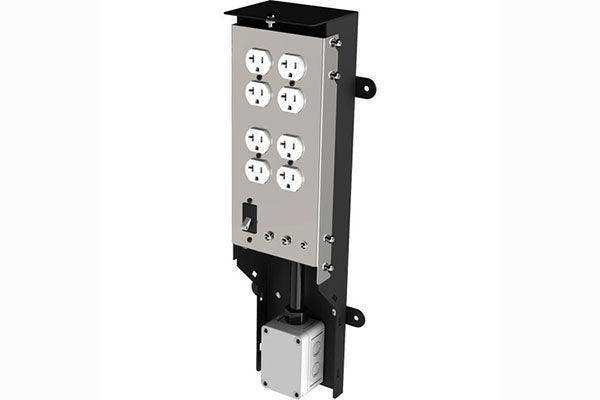

The Peerless-AV KOF-OPT-ELECTRICAL is a power distribution unit (PDU) designed exclusively for the KOF555-1/2/3 Outdoor Digital Menu Boards. This drive-thru kiosk electrical box centralizes power for the displays, media players, and accessories inside the enclosure, helping integrators meet local code and cut installation time on outdoor digital signage projects. It ships pre-wired so only three connections are required on site.
Product Description
The KOF-OPT-ELECTRICAL is a purpose-built PDU for the KOF555 series Outdoor Digital Menu Board (ODMB) used in drive-thru and outdoor QSR deployments. It has been evaluated for use with the UL 48 certified KOF555-1/2/3 enclosures, which eliminates the need for separate third-party power components in the build. Eight receptacles and an integrated circuit protector power a range of display and media-player configurations from a single unit, while 20-amp overcurrent protection adds a layer of installation safety.
Because the unit arrives completely pre-wired, an installer connects just three wires and mounts the PDU to the inside wall of the menu board enclosure, reducing labor on site. It is part of Peerless-AV's modular KOF555 accessory system alongside the KOF-OPT-SPK speaker and microphone kit and the KOF-OPT-FAN media storage fan. Browse the full Peerless-AV collection for the complete drive-thru menu board ecosystem.
Key Features
- Eight Receptacles — Powers multiple displays, media players, and accessories from a single distribution point.
- 20 A Overcurrent Protection — Integrated circuit protector adds installation and operating safety.
- Pre-Wired for Fast Installation — Arrives ready to connect with only three wires, reducing on-site labor.
- Evaluated for UL 48 Certified KOF555 — Validated for the KOF555-1/2/3 enclosures, removing the need for separate third-party power gear.
- Protective Shroud — Encloses the distribution components for a safe, finished installation.

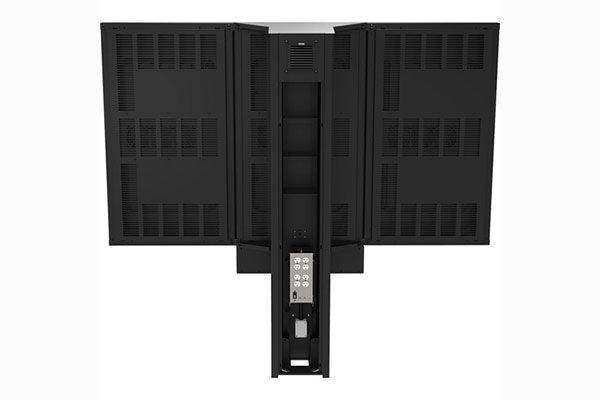

- Wall-Mountable Inside the Enclosure — Mounts to the inside wall of the menu board for an integrated build.
Typical Applications
- QSR and Fast-Casual Drive-Thru — Centralized power for outdoor digital menu board lanes.
- Outdoor Digital Signage — Code-conscious power distribution for all-weather display enclosures.
- Retail and Commercial Exteriors — Integrated power for outdoor wayfinding and promotional displays.
- Transportation and Public Venues — Outdoor menu and information board installations.
Technical Specifications
| Model | KOF-OPT-ELECTRICAL |
| Type | Power Distribution Unit (PDU) |
| Compatibility | Peerless-AV KOF555-1/2/3 Outdoor Digital Menu Boards |
| Receptacles | 8 outlets |
| Overcurrent Protection | 20 A circuit protector |
| Certification Context | Evaluated for use with UL 48 certified KOF555 series |
| Installation | Pre-wired; three wires to connect; mounts inside enclosure wall |
| Included | Protective shroud, circuit protector |
Specifications sourced from Peerless-AV. Confirm electrical requirements against local code and your KOF555 configuration before installation.
Frequently Asked Questions
Which enclosures is the KOF-OPT-ELECTRICAL compatible with?
It is designed exclusively for the Peerless-AV KOF555-1, KOF555-2, and KOF555-3 Outdoor Digital Menu Boards.
How many devices can it power?
The PDU provides eight receptacles, enough to power a range of display and media-player configurations within the enclosure.
Does it simplify installation?
Yes. It ships pre-wired, so an installer connects only three wires and mounts it to the inside wall of the menu board, reducing on-site labor.
What electrical protection does it provide?
It includes a circuit protector with 20-amp overcurrent protection for safer operation.
Does it require additional third-party power components?
It has been evaluated for use with the UL 48 certified KOF555 series, which removes the need for separate third-party power gear in most installations. Confirm requirements against local code.
What support is available?
The unit is backed by Peerless-AV's manufacturer warranty. Contact Creation Networks for current warranty terms and integration support.
