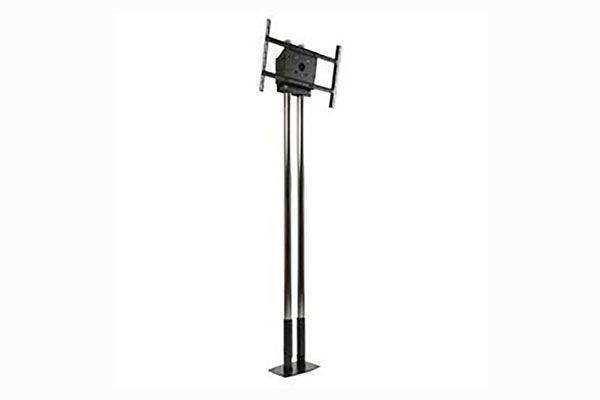

Peerless-AV MOD-FPP2KIT200-B – Dual-Pole Floor Stand for 46-90 Inch Displays

Product Overview

The Peerless-AV MOD-FPP2KIT200-B is a Modular Series dual-pole free standing floor mount that supports displays from 46 to 90 inches on a bolt-down pedestal base. Built for the professional AV installer, this dual pole free standing display mount uses two 78-inch extension poles that can be cut to length on site, making it suited to new construction and retrofit upgrades alike. The kit ships with everything needed for a single-display floor mounting solution and scales to multi-screen configurations as requirements grow.

Product Description

The MOD-FPP2KIT200-B is part of Peerless-AV Modular Series, a system of universal components that lets integrators configure a custom floor-standing display solution for nearly any commercial application. The heavy-duty pedestal floor plate bolts securely to wood or concrete floors, while the dual 2-inch diameter poles add stability for larger and heavier panels. The included Large Universal Adaptor supports VESA mounting patterns up to 600 x 400mm, and the quick-connect single display mount hooks on with plus 20 to minus 5 degrees of tilt that locks at every 5-degree increment.

Displays can be positioned at any point along the height of the poles, and integrated cable management runs through the poles with open access at both ends for a clean install. Because the modular design allows additional displays to be stacked or set back-to-back, the same platform can grow into a multi-screen layout supporting up to four panels using the appropriate accessories. This -B version ships in all-black with black poles to match commercial decor. Browse comparable floor and pole mounting solutions in our Peerless-AV collection.

Key Features

• Bolt-down pedestal base — The heavy-duty pedestal floor plate securely mounts to wood or concrete floors for a stable, free standing installation.
• Dual-pole stability — Two 2-inch diameter poles provide added stability for heavier and larger displays compared to single-pole designs.
• 211 lb per-display capacity — Each display position supports up to 211 lb (96 kg), with a maximum system load of 411 lb (192 kg) across multi-screen configurations.
• Universal display adaptor — The included Large Universal Adaptor fits VESA mounting patterns up to 600 x 400mm on 46 to 90 inch displays.
• Quick-connect tilt mount — A hook-on single display mount offers plus 20 to minus 5 degrees of tilt and locks at every 5-degree increment.
• Field-cuttable poles — The 78-inch extension poles can be cut to length on the job site for precise display height.
• Integrated cable management — Cabling runs through the poles with open access at both ends for clean signal and power routing.
• Modular and stackable — Additional displays can be stacked or mounted back-to-back for up to four panels using MOD-FPMD2, MOD-FPMS2, and MOD-ASC2 accessories.

Typical Applications

• Retail and showroom display floors
• Corporate lobbies and reception areas
• Transportation hubs and wayfinding signage
• Training rooms and multi-purpose spaces
• Trade show and exhibition environments
• Hospitality and commercial digital signage

Technical Specifications

Frequently Asked Questions

What displays does the MOD-FPP2KIT200-B support?
It supports 46 to 90 inch displays with VESA patterns up to 600 x 400mm, at up to 211 lb (96 kg) per display.

Does it require bolting to the floor?
Yes. The pedestal floor plate bolts to wood or concrete floors to provide stability and security for the free standing mount.

Can I mount more than one display?
Yes. The modular design lets you stack additional displays or mount up to four back-to-back using MOD-FPMD2, MOD-FPMS2, and MOD-ASC2 accessories, up to a 411 lb (192 kg) system load.

Can the poles be shortened?
Yes. The two 78-inch, 2-inch diameter extension poles can be cut to length on the job site for the exact viewing height you need.

How is cabling managed?
Cabling routes internally through the poles with open access at both ends for clean power and signal runs.

What warranty applies?
The kit is backed by a Peerless-AV limited 5-year warranty.
