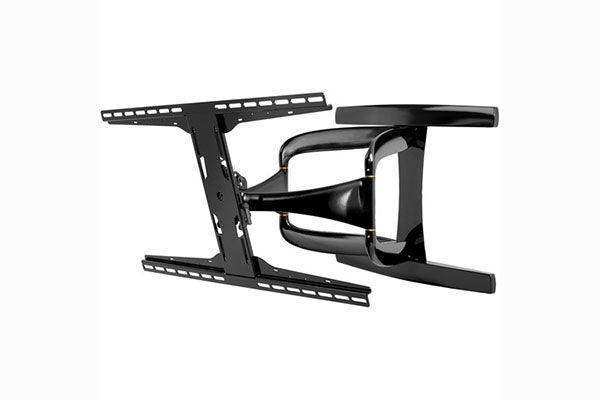

Peerless-AV SUA761PU DesignerSeries Ultra Slim Articulating Wall Mount for 37"-65" Displays

SUA761PU – Peerless-AV DesignerSeries Ultra Slim Articulating Wall Mount

The Peerless-AV SUA761PU DesignerSeries Universal Ultra Slim Articulating Wall Mount is engineered specifically for ultra-thin displays from 37" to 65", delivering a full-motion articulating arm in one of the slimmest profiles available for commercial and professional AV installations.

Product Description

Where standard articulating mounts create a visible gap between the display and wall surface, the SUA761PU achieves an ultra-low profile that keeps the display close to the wall when retracted. This makes it a practical choice for boardrooms, conference spaces, and hospitality environments where aesthetics matter as much as functionality. The gloss black finish integrates naturally with contemporary interior designs.

An innovative I-shaped adaptor plate simplifies rear access for cable connections and maintenance, while internal cable management channels keep wiring hidden from view at every arm position. The mount supports displays in both landscape and portrait orientation, and the locking arm holds the display firmly at any point in its travel range — critical for installations where vibration or foot traffic could shift an unsecured display.

Post-installation leveling is addressed through two independent adjustment mechanisms: ±5° of roll for horizontal correction and ±0.5" (13mm) of vertical adjustment. Both can be made without removing the display, reducing commissioning time on job sites where multiple screens are installed.

Key Features

• Ultra Slim Profile — One of the thinnest articulating wall mount arms on the market, designed to keep ultra-thin displays as close to the wall as possible when retracted.
• 80 lb Maximum Load Capacity — Supports medium to large commercial displays up to 80 lb, covering the weight range of most 37" to 65" flat panels.
• Up to ±90° Side-to-Side Swivel — The full 180° swivel arc allows the display to be positioned toward multiple viewing zones from a single wall mount location.
• ±5° Roll Adjustment — Post-installation roll correction ensures the display reads as perfectly level without requiring the wall plate to be removed and repositioned.
• ±0.5" Vertical Adjustment — Fine vertical positioning after installation eliminates minor height discrepancies common in multi-display installations.
• I-Shaped Adaptor Plate — Provides direct access to display rear ports and inputs without dismounting the screen, simplifying AV connection changes and system upgrades.
• Landscape and Portrait Mounting — Supports both orientations, making the SUA761PU suitable for standard video displays and vertical digital signage alike.
• Internal Cable Management — Cables are routed through the arm assembly and concealed at all arm positions, delivering a clean result that meets professional AV installation standards.

Typical Applications

The SUA761PU is designed for commercial AV environments where display placement flexibility and a refined wall profile are both required. Typical installations include corporate boardrooms and conference rooms, hotel guestrooms and meeting spaces, higher education classrooms and training rooms, and retail environments where displays must be angled toward customer traffic at varying times of day. The portrait orientation option also makes the mount suitable for digital menu boards and vertical signage applications.

Technical Specifications

Frequently Asked Questions

Is the SUA761PU compatible with ultra-thin OLED and QLED displays?

Yes. The SUA761PU is designed specifically for ultra-thin display profiles. Its I-shaped adaptor plate and slim arm geometry accommodate the reduced depth of modern OLED, QLED, and thin-bezel commercial displays that standard wall arms cannot mount without excessive protrusion.

Can I use this mount for portrait-orientation digital signage?

Yes. The SUA761PU supports both landscape and portrait orientations. When rotating the display to portrait, verify that the display’s VESA mounting hole pattern is centered, as off-center patterns can affect balance at extended arm positions.

What is the difference between the SUA761PU and a standard articulating arm mount?

The SUA761PU is purpose-built for ultra-thin displays and prioritizes a minimal wall-to-display gap when retracted. Standard articulating mounts are designed for a broader range of display thicknesses and generally have a larger retracted profile. The SUA761PU also includes ±5° roll and ±0.5" vertical post-installation adjustments that are not always present on standard arms.
