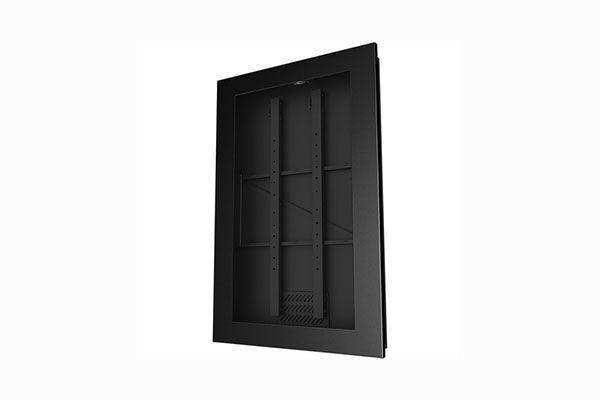

Peerless-AV KIP746 – 46" Portrait In-Wall Kiosk for Digital Signage

Product Overview

The Peerless-AV KIP746 is a 46" portrait in-wall kiosk that integrates flat-panel digital signage displays flush into standard wall construction with less than a 1" front profile. Designed for commercial digital signage deployments where both aesthetics and ADA accessibility compliance are required, this in-wall portrait kiosk supports displays up to 46" with VESA patterns from 200 x 200 to 600 x 400 mm and a maximum load of 74.96 lb. It is equally suitable for new construction and retrofit projects, and includes a thermostat-controlled fan for active thermal management within the enclosed wall cavity.

Product Description

The KIP746 eliminates the visual bulk of surface-mount kiosk enclosures by recessing the display housing entirely within the wall structure. The resulting front profile of less than 1" creates a minimalistic, large-format digital wall signage appearance that is increasingly specified in retail, hospitality, and corporate environments. The enclosure accommodates media players, fans, and electronic equipment alongside the display panel within the same wall cavity, centralizing the entire signage system in a single in-wall package.

Extending arms simplify the installation process by allowing the installer to fit the enclosure into the rough opening and secure it to framing before pulling the display assembly into final position. Height, width, and depth adjustability allow on-site fine-tuning to account for wall construction tolerances. The pull-out mount mechanism provides access to display connections and internal components for maintenance without disturbing the wall finish.

The KIP746 is compatible with digital wall signage applications across retail, corporate, government, healthcare, and transportation environments. The maximum 74.96 lb load capacity covers commercial 46" displays, and the VESA 200 x 200 to 600 x 400 mm compatibility range matches the mounting patterns of all major commercial display manufacturers in this size class. RoHS certification confirms compliance with environmental standards.

Key Features

• Sub-1" Front Profile — Less than 1" wall protrusion creates a minimalistic digital wall signage aesthetic and meets ADA protrusion requirements.
• Thermostat-Controlled Fan — Active airflow management pulls fresh air into the kiosk, maintaining safe operating temperatures for the display and electronic components.
• Extending Arms for Ease of Installation — Integral extending arms allow the installer to position and secure the enclosure in the wall opening before final display mounting.
• Three-Axis Adjustability — Adjustable height, width, and depth accommodate field tolerances in wall construction without shimming.
• Pull-Out Mount for Maintenance Access — Display assembly pulls out from the wall for access to rear connections, media players, and wiring.
• 74.96 lb Maximum Load Capacity — Supports commercial 46" displays including those with integrated media player sleds or rear-mounted devices.
• VESA 200 x 200 to 600 x 400 mm — Covers the standard mounting pattern range for commercial 46" portrait signage panels.
• Multi-Device Accommodation — Supports flat panel displays, media players, fans, and associated electronic equipment within the kiosk enclosure.
• New Construction and Retrofit Compatible — Designed for installation in standard wood stud walls in both new build and existing construction.
• RoHS Compliant — Meets Restriction of Hazardous Substances environmental standards.

Typical Applications

• Retail digital signage and point-of-purchase display installations
• Corporate lobby, corridor, and wayfinding digital displays
• Hospitality property information and guest-facing signage
• Government facility public information kiosks
• Healthcare wayfinding and patient information systems
• Transportation hub departure and information displays

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the KIP746, KIP747, and KIP748?

A: The KIP746, KIP747, and KIP748 are in-wall portrait kiosks sized for 46", 47", and 48" displays respectively. They share the same design architecture, sub-1" front profile, and feature set; the difference is the maximum display size each enclosure accommodates. Select the model that matches your chosen display's diagonal measurement.

Q: Can the KIP746 accommodate a touchscreen display?

A: Yes, provided the touch display falls within the supported size and VESA compatibility range. USB touch interface cables and additional power cables for touch controllers should be accounted for in the cable routing plan during system design.

Q: How is the fan controlled, and can it be disabled?

A: The circulation fan is thermostat-controlled and operates automatically based on internal temperature. It is not recommended to disable the fan in enclosed wall installations, as thermal management is critical to display longevity in this mounting configuration.

Q: Is the KIP746 suitable for 24/7 commercial operation?

A: The kiosk is designed for commercial digital signage applications, which typically include extended or continuous operating hours. Ensure the display specified for the installation is also rated for 24/7 operation.

Q: What rough opening dimensions are required for installation?

A: Rough opening dimensions should accommodate the 49.3" H x 31.5" W x 5.1" D unit with appropriate clearance for the wall finish. Refer to the KIP746 installation guide or contact Creation Networks for installation drawings.
