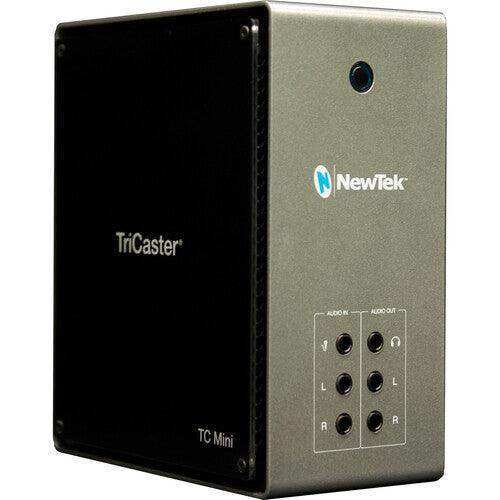

Vizrt TCMXHDMI TriCaster Mini X HDMI - FG-003265-R001

Product Overview

The Vizrt TriCaster Mini X HDMI is a desktop live production system that accepts four HDMI inputs and up to eight NDI IP sources simultaneously, processing video at up to DCI 4K resolution for broadcast, streaming, and AV installation deployments. Designed for AV integrators, broadcast engineers, and production directors working in HDMI-native environments, the Mini X HDMI delivers switching, streaming, recording, chroma keying, virtual sets, graphics, and audio mixing within a single compact chassis. Its 1 to 1.5 frame processing latency and 4:4:4 YCbCr color processing maintain broadcast-quality signal integrity from input through output.

Product Description

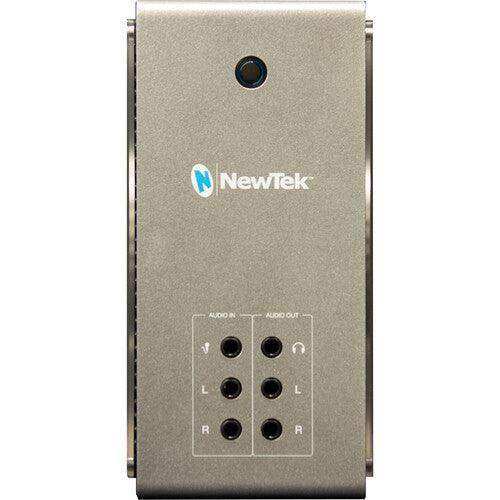

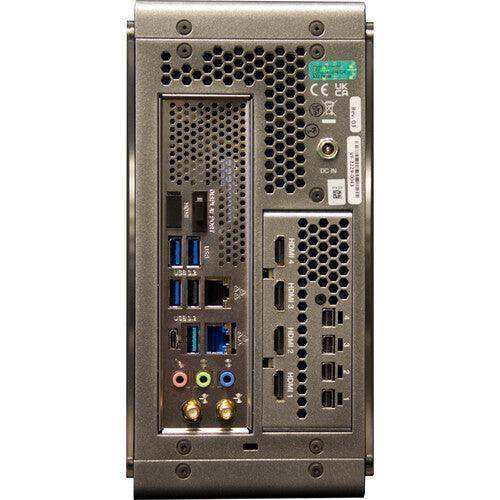

The TriCaster Mini X HDMI (SKU: FG-003265-R001) handles four direct HDMI video connections at resolutions up to DCI 4K at 25/29.97fps and 1080p at up to 59.94fps, plus eight concurrent NDI sources over its dual RJ45 network ports. Four mini DisplayPort outputs — each shipping with HDMI adapters — simultaneously drive program, preview, and multiview monitoring feeds to connected displays. The integrated software provides complete production control: four M/E buses with video re-entry, LiveMatte chroma and luma keying on all source channels, 30+ professional virtual sets via LiveSet technology, five media players, 15 media buffers, and DataLink real-time data injection for automated graphics. Live Link renders web pages as live sources directly in the production interface for HTML graphics, training content, and data-driven lower thirds. Skype TX software integration supports up to two simultaneous video call inputs. Multi-channel audio processing runs at 96kHz with 1/4" TRS analog inputs and outputs, HDMI embedded audio, and headphone monitoring. Five USB-A 3.2 Gen 2 ports plus one USB-C 3.2 port connect the included keyboard, mouse, and external storage devices. Built-in Wi-Fi extends network connectivity for environments without direct Ethernet access. At 8.4 lb in a form factor under 10 inches per side, the Mini X HDMI deploys in boardrooms, broadcast studios, conference rooms, and field production environments without rack mounting.

Key Features

• 4x HDMI Video Inputs — Direct HDMI camera and device connectivity at resolutions from 480p through DCI 4K 29.97fps and 1080p 59.94fps.
• 8x NDI IP Video Inputs — Handles NDI cameras, encoders, and converters over standard Gigabit Ethernet simultaneously with HDMI sources.
• 4x Mini DisplayPort Outputs (HDMI Adapters Included) — Four independent outputs simultaneously drive program, preview, and multiview monitoring to HDMI displays.
• DCI 4K Internal Processing — Processes video at DCI 4K with 4:4:4 YCbCr color for high-fidelity compositing, keying, and output.
• 1 to 1.5 Frame Processing Latency — Low-latency signal path for synchronized multi-source live production.
• LiveMatte Chroma and Luma Keying — Integrated keying engine on all source channels and M/E buses for virtual set compositing without external hardware.
• 30+ Live Virtual Sets — Professional 3D environments with animated camera moves, reflections, and augmented reality effects included.
• 4 M/E Buses with Re-Entry — Four mix/effect buses support complex layered compositions and downstream keying configurations.
• Live Link Web Integration — Renders web pages directly as live sources for HTML-based graphics, training content, and data overlays.
• 5x USB-A 3.2 + 1x USB-C 3.2 Ports — Keyboard, mouse, and external storage all connect without USB hubs.
• Built-in Wi-Fi — Wireless network connectivity for NDI and streaming in environments without dedicated Ethernet runs.
• Keyboard and Mouse Included — Ships ready for operation with all accessories needed for immediate deployment.

Typical Applications

• Broadcast studio
• House of worship
• Boardroom
• Conference room
• Training room
• Auditorium
• Multi-purpose room
• Campus athletics

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What HDMI input formats does the Mini X HDMI support?

The Mini X accepts DCI 4K at 25/29.97fps, 1080p at 25/29.97/50/59.94fps, 1080i at 50/59.94fps, 720p, and 480p on all four HDMI inputs.

Does the Mini X HDMI support 4K output?

The Mini X processes internally at DCI 4K. Output via the four mini DisplayPort ports (with included HDMI adapters) carries the full-resolution program feed to connected displays. Check your downstream display or recorder's supported input resolutions for delivery confirmation.

Can the Mini X HDMI connect to SDI cameras?

No. The Mini X HDMI accepts HDMI inputs on the chassis only. SDI cameras require a separate SDI-to-HDMI or SDI-to-NDI converter such as the Vizrt Spark Plus series.

How does the Mini X HDMI differ from the Mini X HDMI Bundle?

The standalone Mini X HDMI (FG-003265-R001) and the bundle (TCMXHDMIB) both include the chassis, keyboard, mouse, and display adapters. The bundle may include additional accessories. Check current bundle contents for the specific SKU at the time of purchase.

What streaming platforms are supported?

The Mini X HDMI supports YouTube Live, Facebook Live, Twitch, and any RTMP-compatible streaming service.

What warranty does the Mini X HDMI include?

The TriCaster Mini X HDMI includes a 1-year limited manufacturer warranty from Vizrt.
