Vizrt Flex Control Panel for TriCaster Devices

Product Overview

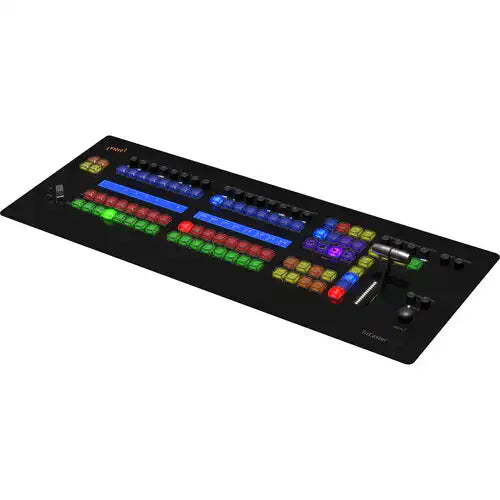

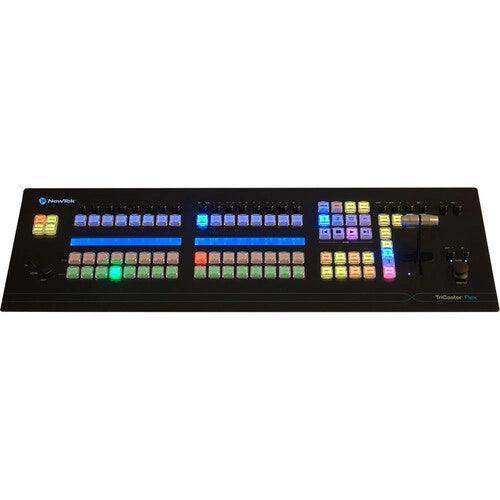

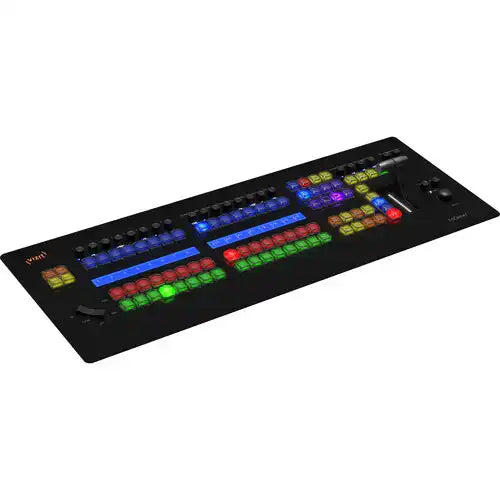

The Vizrt Flex Control Panel (FG-003262-R001) is a compact, full-featured hardware controller designed for TriCaster live production systems including the TriCaster 2 Elite, 1 Pro, TC1, 410 Plus, Mini 4K, and Mini X. It delivers 16 direct crosspoints, a T-bar, NDI connectivity via RJ45, and integrated audio I/O in a single desktop unit — making it one of the most versatile TriCaster control panels for mid-size broadcast studios and live event production teams. The Flex panel supports PTZ camera control, talkback, and audio mixing, consolidating operator functions that previously required separate hardware.

Product Description

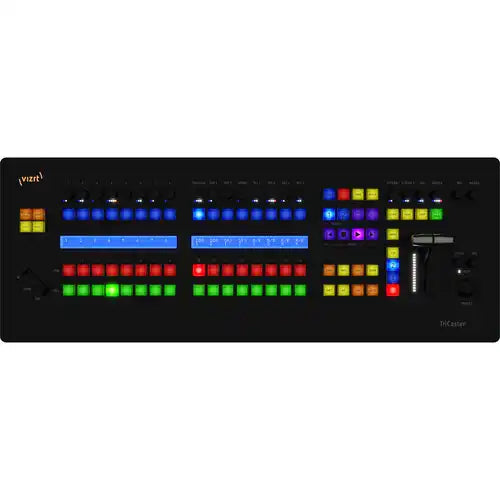

The Flex Control Panel provides 16 direct crosspoint buttons with Bank and Stripe function, giving operators fast access to a full range of sources in any TriCaster-based production setup. Two rows of backlit LCD screens display dynamic source labels, reducing errors during fast-paced live switching. The T-bar and manual control layout follow industry-standard conventions, minimizing retraining time for experienced switcher operators. Audio connectivity is built in: two pairs of 1/4" stereo inputs and two pairs of 1/4" stereo outputs allow the panel to serve as an integrated audio interface alongside video switching. A dedicated talkback and microphone input with headphone output enables private communication between the operator desk and talent positions. NDI connectivity via the RJ45 port makes the Flex panel compatible with IP-based production workflows without additional adapters. For system integrators, the broad TriCaster compatibility — spanning six current models — simplifies procurement and sparing across multi-venue installations.

Key Features

• 16 Direct Crosspoints — Bank and Stripe function enables direct access to full source lineup without paging through menus.
• Dual LCD Row Displays — Two rows of labeled LCD screens display source names dynamically for fast, accurate switching.
• NDI Connectivity via RJ45 — Native NDI support over standard Ethernet for IP-based production workflows.

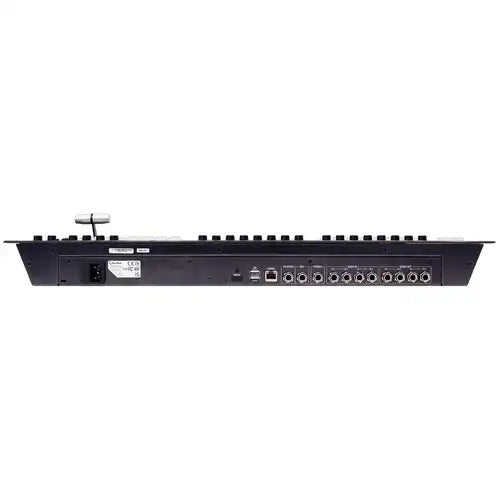

• Integrated 1/4" Stereo Audio I/O — Two pairs of stereo inputs and outputs built into the panel for combined audio/video control.
• Talkback and Microphone Input — Dedicated talkback circuit with headphone out for private production communications.
• PTZ Camera Control — Direct PTZ control from the panel eliminates the need for a separate camera control unit.
• T-Bar and Manual Controls — Standard broadcast T-bar layout with tactile buttons provides precise transition control.
• Broad TriCaster Compatibility — Works with six TriCaster models: 2 Elite, 1 Pro, TC1, 410 Plus, Mini 4K, and Mini X.

Typical Applications

• Mid-size broadcast studios with TriCaster-based production infrastructure
• Live event and conference production
• Houses of worship with TriCaster Mini 4K or Mini X installations
• University media departments and training facilities
• Corporate AV production suites
• Mobile and fly-pack live productions

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Which TriCaster models does the Flex Control Panel support?

The Flex panel is compatible with TriCaster 2 Elite, TriCaster 1 Pro, TriCaster TC1, TriCaster 410 Plus, TriCaster Mini 4K, and TriCaster Mini X.

Does the Flex panel require any additional software or drivers?

No. The panel connects via NDI over the RJ45 Ethernet port and is recognized natively by compatible TriCaster systems without additional driver installation.

Can the Flex panel control PTZ cameras directly?

Yes. PTZ camera control is built into the panel, eliminating the need for a separate camera control unit in small-to-mid production setups.

Is the audio I/O on the panel separate from the TriCaster audio engine?

The panel's 1/4" stereo audio inputs and outputs interface with the TriCaster audio system, providing additional analog audio connectivity at the operator position.

Can this panel replace the TC1SP for TriCaster TC1 installations?

Yes. B&H Photo notes the Flex panel (FG-003262) as the recommended replacement for the TC1SP (FG-001589), with broader compatibility and expanded features.
