Sharp LED-FE019I2-165 – 165" FHD 1.9mm FE-Series LED Video Wal...
Product Overview

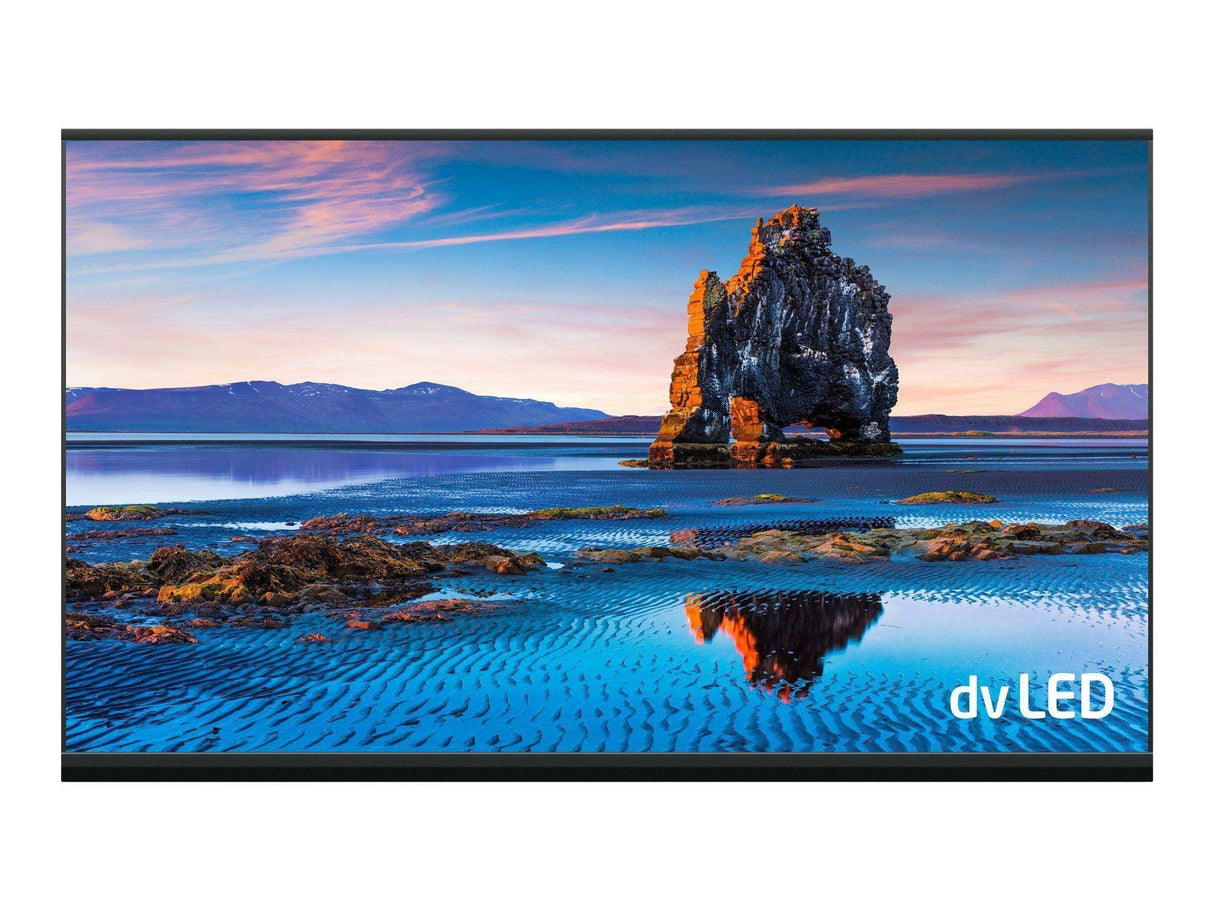

The Sharp LED-FE019I2-165 is a 165-inch Full HD direct-view LED video wall kit built on the FE-Series 1.9mm platform. It delivers 1920x1080 resolution across a seamless 16:9 canvas at 700 cd/m² typical brightness, making it the cost-optimized single-controller option in the 165-inch 1.9mm LED video wall category. With viewing distances of 4 to 10 feet, it is suited for boardrooms, auditoriums, all-hands rooms, and large conference rooms where high-availability redundancy is not required and budget efficiency is the primary consideration.
Product Description
The LED-FE019I2-165 uses 1.9mm FE-Series 3-1 SMD black pixel modules producing 1920x1080 FHD at 165 inches. Brightness is rated at 700 cd/m² typical and 770 cd/m² peak, with a 4000:1 contrast ratio and 80°/80° viewing angles. Refresh rate reaches 3840 Hz. 16-bit color processing supports 281 trillion displayable colors with adjustable gamma (1.0–4.0) and color temperature (3000K–9500K). Front-serviceable modules and hot-swappable pixel cards provide ongoing serviceability. The bundle includes LED modules, single LED controller, power bar, wall mount, overframe kit, spare parts kit, and pixel card removal tool. At 3.2 inches installed depth, the system meets ADA guidelines. Installation is included with this kit (standard).
Key Features
- 165-Inch FHD Canvas — 1920x1080 seamless direct-view LED at 165 inches, 16:9 aspect ratio.
- 1.9mm Pixel Pitch — Optimized for 4 to 10 foot viewing distances in boardrooms and auditoriums.
- 700 cd/m² Typical Brightness — 770 cd/m² peak for ambient-lit commercial spaces.
- 4000:1 Contrast Ratio — 3-1 SMD black pixel modules for accurate dark levels and color.
- 80°/80° Viewing Angles — Wide-angle coverage for multi-row seating.
- Up to 3840 Hz Refresh Rate — Flicker-free rendering for video and presentations.
- Standard Installation Included — Installation labor is included with this kit.
- Front-Serviceable, Hot-Swap Pixel Cards — Maintenance without rear access; live pixel card replacement.
- Hardware Bundle — Single controller, modules, power bar, wall mount, overframe kit, spare parts, and tools included.
- 3.2" ADA-Compliant Depth — Slim installed depth for flush wall integration.
- 100,000-Hour LED Lifetime — Industrial longevity for permanent installations.
Typical Applications
- Boardroom
- All-hands room
- Conference room
- Training room
- House of worship
- Lobby display
- Digital signage
Technical Specifications
| Spec | Value |
|---|---|
| Model | LED-FE019I2-165 |
| Screen Size | 165 inches diagonal |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Pixel Pitch | 1.9 mm |
| Pixel Configuration | 3-1 SMD (Black) |
| Module Resolution | 640 x 360 |
| Brightness (Typical) | 700 cd/m² |
| Brightness (Maximum) | 770 cd/m² |
| Contrast Ratio | 4000:1 |
| Refresh Rate | Up to 3840 Hz |
| Viewing Angle | 80° H / 80° V |
| Color Processing | 16-bit (281 Trillion colors) |
| Color Temperature Range | 3000K – 9500K |
| Dimming | 256 levels |
| LED Lifetime | 100,000 hours |
| Active Screen Area | 143.4 x 81 in. (3648 x 2052 mm) |
| Installed Depth | 3.2 in. (81 mm) |
| Operating Temperature | -4° to 104°F (-20° to 40°C) |
| IP Rating | IP20 (Indoor) |
| Certifications | ETL, FCC, CE, CCC, RoHS |
| Warranty | 3 years |
| Installation | Standard installation included |
Frequently Asked Questions
What is the difference between FE019I2-165 and FE019I3-165?
Both use the same 1.9mm FE-Series module. The I2 variant (this product) includes standard installation. The I3 variant is the hardware-only configuration. Confirm which variant applies to your procurement at Creation Networks.
How does FE-Series compare to FA-Series at 1.9mm?
The FA-Series adds dual-controller redundancy and higher brightness/contrast specs. The FE-Series is the cost-optimized single-controller option for non-critical deployments.
What is the optimal viewing distance?
4 to 10 feet for 1.9mm pixel pitch at 165 inches diagonal.
