Middle Atlantic UPS-2200R-HHIP – 2200VA Hardwire UPS with IP Management

Product Overview

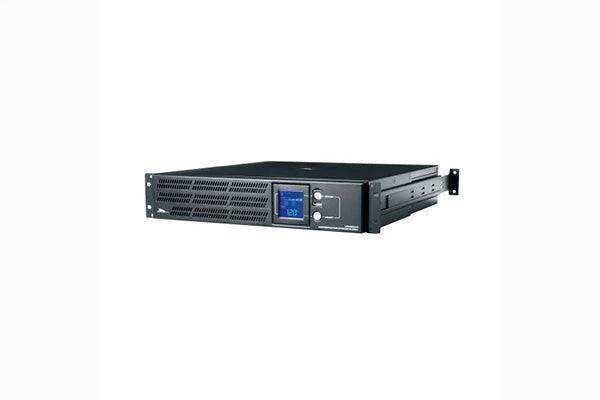

The Middle Atlantic UPS-2200R-HHIP is a 2200VA rackmount UPS with hardwire input and output terminations plus an integrated IP network management card for remote monitoring and control. It is designed for commercial AV, broadcast, and IT installations where permanent hardwired power protection is required alongside network-based UPS management. The IP management card enables SNMP integration, web-based monitoring, outlet scheduling, and remote shutdown without physical access to the rack.

Product Description

The UPS-2200R-HHIP shares the same 2200VA / 1980W hardwire platform as the UPS-2200R-HH, adding an embedded IP management module that connects the UPS to a local area network via Ethernet. This enables facilities teams and remote monitoring systems to track UPS status, battery health, load percentage, and input voltage from a web browser or SNMP-compatible network management system. Automated alerts via email or SNMP trap notify administrators of utility faults, low battery conditions, or overload events without requiring on-site personnel.

Like the base model, both input and output connections are hardwire terminations with no NEMA plugs, requiring installation by a licensed electrician. The line-interactive topology with automatic voltage regulation (AVR) corrects voltage sags and surges before transferring to battery, extending battery runtime and service life. Field-replaceable battery cartridges support in-rack battery swaps without removing the UPS from service. An internal bypass mode keeps connected equipment live during UPS maintenance.

This model is particularly suited for unmanned machine rooms, remote facilities, and distributed AV systems where a technician cannot be on-site to respond to power events. The combination of hardwire connectivity and IP management addresses the requirements of both the electrical contractor and the network operations team in the same device. Available from Creation Networks with pre-sales support for rack power and network integration planning.

Key Features

• 2200VA / 1980W Capacity — Supports mid-to-large AV and IT rack loads in permanent installations.
• Hardwire Input and Output — No NEMA plugs; requires conduit wiring for code-compliant permanent installation.
• Integrated IP Network Management — Ethernet-connected card provides web UI, SNMP, and email alerting for remote monitoring.
• Line-Interactive with AVR — Automatic voltage regulation corrects sags and surges without switching to battery.
• Remote Shutdown and Scheduling — IP interface supports graceful shutdown commands and outlet scheduling from the network.
• Replaceable Battery Cartridges — Field-serviceable batteries minimize downtime during lifecycle maintenance.
• Internal Bypass — Keeps downstream equipment live during UPS servicing or battery replacement.

Typical Applications

• Unmanned machine rooms and remote facilities requiring network-monitored power protection
• Broadcast head-end bays with SNMP integration to network operations centers
• Distributed AV systems where on-site response to power events is not practical
• Permanent control room racks requiring both hardwired power and IP UPS management

Technical Specifications

Frequently Asked Questions

What is the difference between this model and the UPS-2200R-HH?

Both units are identical in power capacity and hardwire connectivity. The UPS-2200R-HHIP adds an integrated IP network management card that enables SNMP monitoring, web-based status, email alerts, and remote shutdown. If network management is not required, the UPS-2200R-HH is the appropriate choice.

Does the IP management card require a separate license or subscription?

No. The IP management capability is built into the unit. Contact Creation Networks to confirm current firmware and feature details.

Does this UPS require a licensed electrician for installation?

Yes. Both input and output use hardwire terminations; installation must be performed by a licensed electrician per local electrical codes, regardless of the network management capability.

Can this unit send alerts if utility power fails at 2 AM?

Yes. The IP management card supports SNMP traps and email notifications for utility faults, low battery, and overload conditions — delivering alerts to administrators without requiring anyone on-site.
