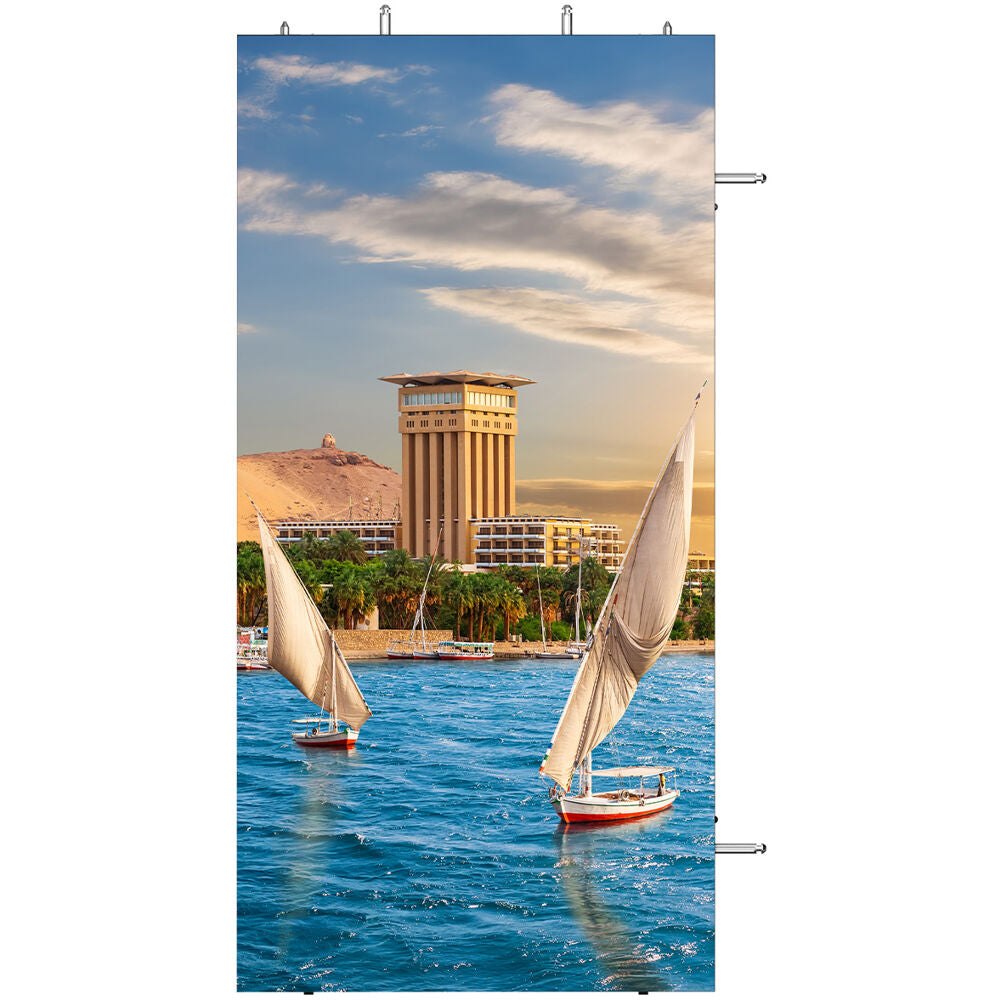

LG LSBC039-GD – TAA LSBC Series DVLED, P3.91 128x256 resolution

Product Overview

The LG LSBC039-GD is a TAA-compliant 3.91 mm pixel pitch direct-view LED standard panel cabinet with a 128x256 resolution, designed for large-format indoor commercial video wall installations. Rated at 1,000 nits with HDR support, it delivers high-brightness, vivid imagery suited to hotel ballrooms, retail atriums, corporate auditoriums, and transportation hubs. Front or rear serviceability and an optional 90-degree corner installation design provide operational and architectural flexibility. This is the largest standard cabinet configuration in the LSBC039 series.

Product Description

The LSBC039-GD is the standard (GD) panel configuration in LG's LSBC P3.91 cabinet line, providing the largest per-cabinet pixel count (128x256) of the three available LSBC039 formats. The larger cabinet size means fewer total cabinets are required to build a given video wall, which can reduce installation labor and mechanical complexity for large-scale deployments. The 3.91 mm pixel pitch is designed for large indoor environments where viewing distances of 12 feet or more are standard. At 1,000 nits, the display maintains strong brightness and color accuracy under moderate ambient lighting conditions, making it legible and impactful in environments such as hotel lobbies, retail floors, transit concourses, and sports venue interiors. HDR support enables content with expanded dynamic range to display accurately, with brighter highlights, deeper blacks, and more saturated colors than standard dynamic range content on conventional displays. Front or rear serviceability accommodates both wall-flush installations where rear access is blocked, and freestanding or rear-accessible structures where technicians can work from behind the display. The 90-degree corner installation option allows two sections of the video wall to meet at a right angle, enabling room-wrap, L-shaped, or V-shaped configurations in immersive retail, hospitality, and exhibit environments. TAA compliance qualifies the LSBC039-GD for procurement under GSA Schedule contracts and U.S. federal, state, and education programs. Contact Creation Networks for multi-cabinet system design and pricing.

Key Features

• 3.91 mm Pixel Pitch — Designed for large-format indoor environments with typical viewing distances of 12 feet or more.
• 1,000 Nit Brightness — High luminance output maintains display legibility and color accuracy in ambient-light environments such as retail floors and hotel lobbies.
• HDR Support — Vivid color expression with expanded dynamic range for deeper contrast and more accurate content reproduction.
• 128x256 Standard Cabinet Resolution — Largest LSBC039 cabinet format reduces total cabinet count and installation complexity for large video wall deployments.
• Front or Rear Serviceability — Dual access options accommodate wall-flush and freestanding mounting configurations for practical ongoing maintenance.
• 90-Degree Corner Installation Design — Supports L-shaped and wrap-around video wall configurations for retail, hospitality, and immersive display environments.
• TAA Compliant — Qualifies for U.S. federal, state, and education procurement under GSA Schedule and Trade Agreements Act programs.
• LG Software Solutions Compatible — Integrates with LG's commercial display management platform for centralized monitoring and control.

Typical Applications

• Hotel ballrooms and large event space feature walls
• Retail atrium and flagship store large-format displays
• Corporate auditoriums and large presentation venues
• Airport and transit concourse public information systems
• Entertainment venue and sports arena interior signage
• Higher education campus and auditorium video walls
• U.S. government and defense facility display installations

Technical Specifications

Frequently Asked Questions

What is the GD configuration in the LSBC039 series?

The GD designation indicates the standard panel cabinet format with a 128x256 per-cabinet pixel resolution. It is the largest cabinet option in the LSBC039 line, which means fewer total cabinets are needed for a given video wall size compared to the CD or DD configurations.

Why would I choose the GD over the CD or DD format?

The GD format is most efficient for large-scale video walls where minimizing cabinet count and installation time is a priority. The larger per-cabinet size means fewer mechanical joints and faster assembly for wide-format displays.

What is the minimum viewing distance for a 3.91 mm pixel pitch display?

A comfortable minimum viewing distance is approximately 12 feet for a 3.91 mm pitch. At this distance and beyond, individual pixels are not distinguishable and the image reads as a continuous surface.

Is the LSBC039-GD suitable for outdoor installations?

No. This cabinet is rated for indoor use only. For outdoor applications, a separate IP-rated outdoor DVLED product is required. Contact Creation Networks to discuss outdoor display options.

Does this product require a separate video processor to operate?

Yes. DVLED cabinets require a compatible video wall processor or LED controller to receive, process, and distribute signal to the display. Contact Creation Networks for compatible controller recommendations and full system design.

How do I get a complete system quote for a large video wall using the LSBC039-GD?

Contact Creation Networks at creationnetworks.net. Our team can provide a full cabinet layout, controller specification, cabling plan, and total system pricing for your project.
