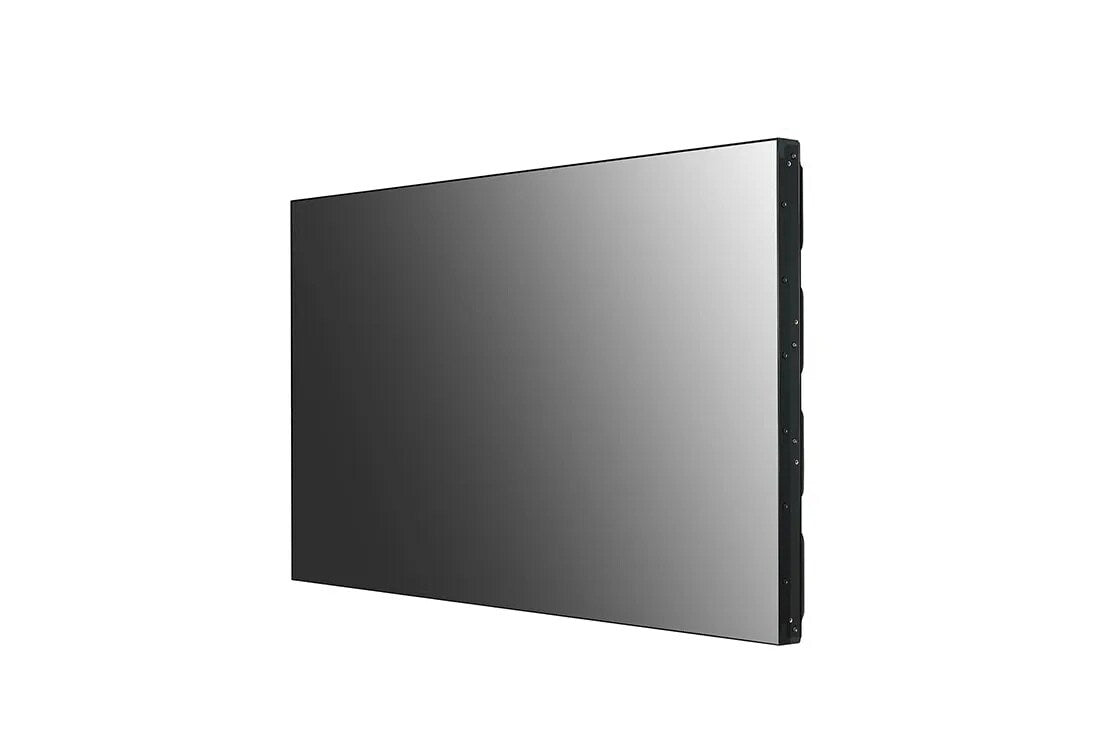

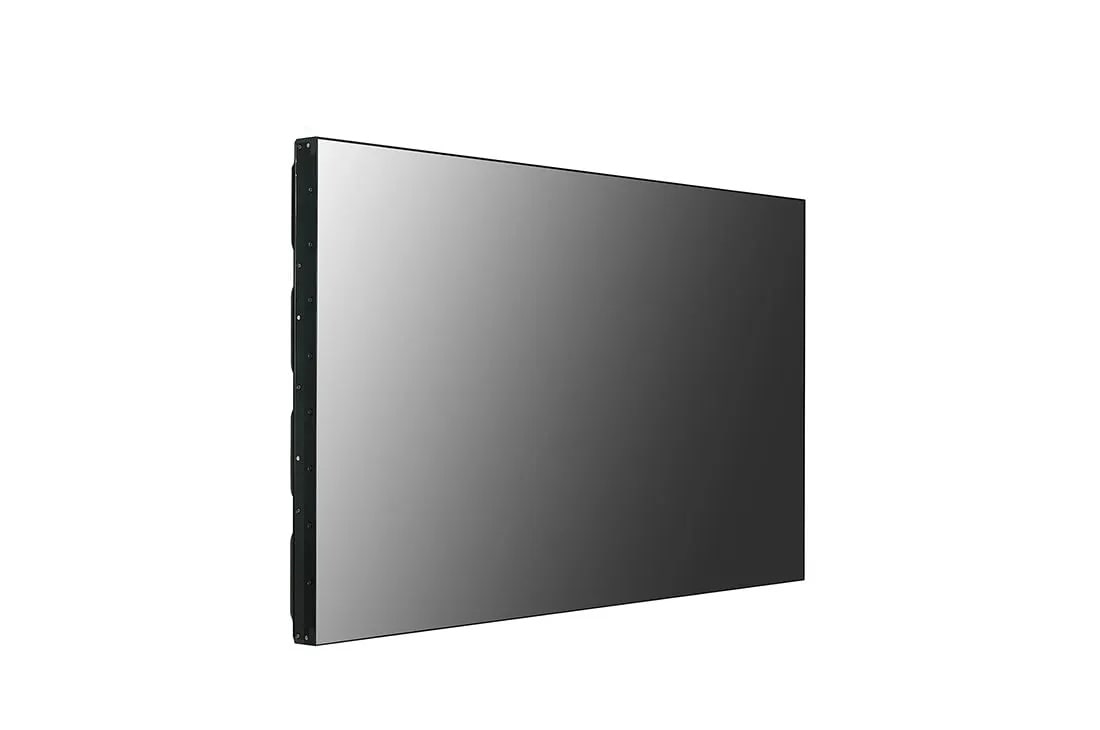

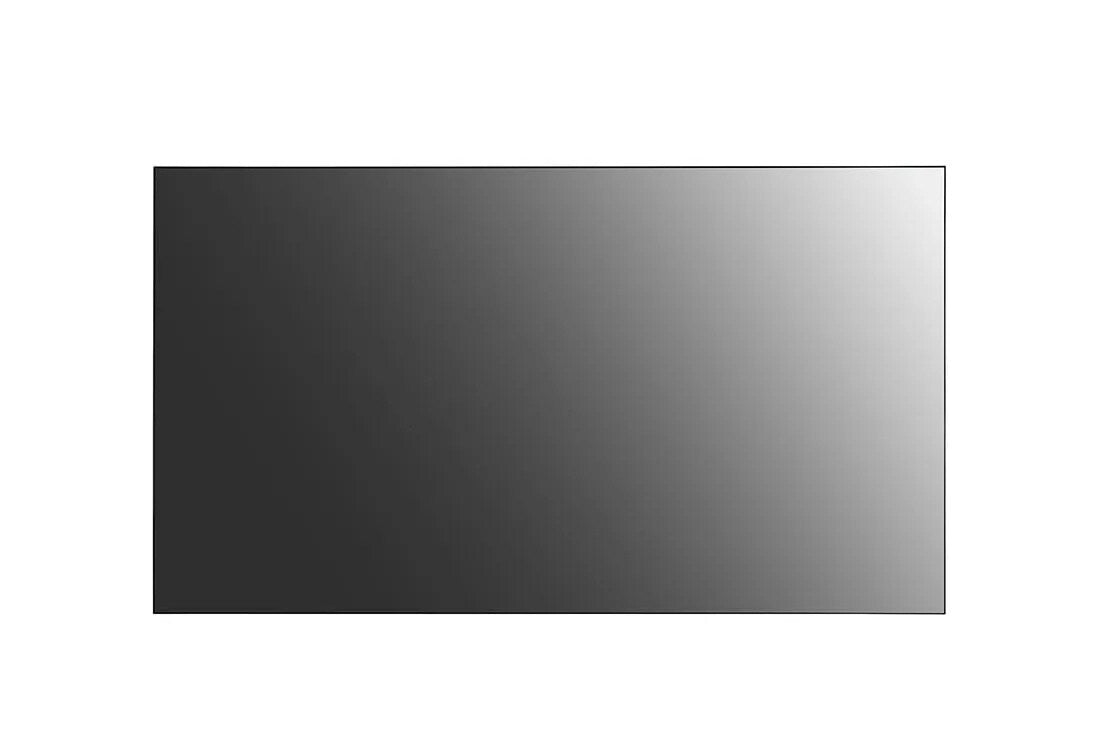

LG 49VL5G-MRBX – 49" 1920 x 1080 FHD Video Wall LED Backlit LCD Large Format Monitor

Product Overview

The LG 49VL5G-MRBX is a 49-inch Full HD LED-backlit LCD large-format display engineered for commercial video wall applications. With an ultra-narrow bezel design, IPS panel technology, and a built-in image gap reduction algorithm, this display is designed to be tiled into multi-panel video wall configurations that create visually continuous large-screen surfaces for retail, corporate, hospitality, and public-space environments. The VL5G-M series combines commercial-grade display reliability with the visual performance characteristics — wide viewing angles, accurate color, and bezel-minimized tiling — that video wall installations require.

Product Description

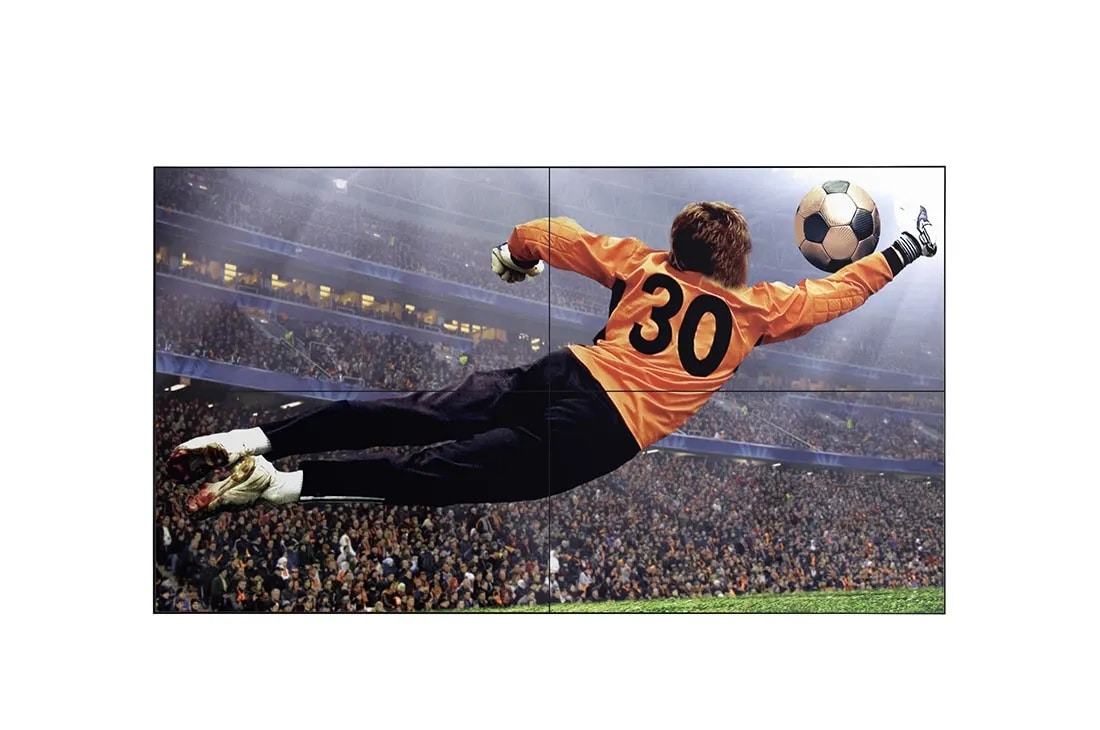

The 49VL5G-MRBX is purpose-built for video wall deployment in commercial environments where the goal is to create a large, contiguous display surface from multiple panels. The ultra-narrow bezel design — 88.6mm on the top and left edges, 49.2mm on the bottom and right — minimizes the physical gap between adjacent panels in a tiled configuration, reducing visual interruption across the assembled video wall surface. For viewers at typical commercial distances, the result is a display wall that reads as a single large image rather than a collection of individual screens.

The integrated image gap reduction algorithm addresses a common video wall challenge: when video content crosses bezel boundaries, objects appear misaligned or discontinuous. The VL5G-M series processes content to compensate for the physical gap between panels, adjusting the image data at bezel boundaries so that objects in motion or spanning multiple panels appear correctly positioned. This processing step is important for high-quality video wall deployments where content is expected to span the full display array rather than being subdivided into individual panel zones.

IPS panel technology provides the wide viewing angle performance that is essential for video walls installed at height or in spaces where viewers approach from a wide range of positions. Color rendering accuracy and consistency across viewing angles is maintained through the IPS liquid crystal control mechanism, which avoids the color shift and contrast loss that affects TN-panel displays at off-axis viewing angles. Color temperature can be adjusted in increments of 100K via remote control, providing installation flexibility for environments with specific color calibration requirements.

For large screens positioned above eye level — a common installation scenario in retail, transportation, and lobby environments — uniform picture quality at upward viewing angles is critical. The IPS panel's viewing angle characteristics directly address this requirement, delivering vivid, consistent color throughout the screen even when viewed from below the center of the display.

Key Features

• Ultra-Narrow Bezel Design — Minimizes visual interruption between tiled panels for a more continuous video wall surface in commercial installations.
• Image Gap Reduction Algorithm — Adjusts content at bezel boundaries to reduce visible misalignment of objects and video content spanning multiple panels.
• IPS Panel Technology — Wide viewing angles and consistent color accuracy across the full display surface, including upward viewing angles typical of wall-mounted commercial displays.
• Video Wall Compatible — Designed for tiled multi-panel configurations in commercial retail, corporate, hospitality, and public-space environments.
• Color Temperature Adjustment — Fine 100K increment color temperature control via remote supports calibration to specific environmental or content requirements.
• Commercial-Grade Reliability — Built for extended-hours commercial deployment in high-traffic environments.
• LED Backlit LCD — Consistent backlighting across the panel surface for uniform brightness in tiled video wall configurations.

Typical Applications

• Retail store video wall
• Corporate lobby and reception display wall
• Transportation hub information display
• Hospitality venue feature wall
• House of worship media wall
• Command center and control room display
• Shopping mall digital signage wall
• Government public information display

Technical Specifications

Frequently Asked Questions

What is the total gap between panels in a tiled video wall with this display?

In a standard tiled configuration, the combined gap between two adjacent panels is the sum of the adjoining bezel widths. For example, a top panel's bottom bezel (49.2mm) plus the bottom panel's top bezel (88.6mm) equals approximately 137.8mm total gap. The image gap reduction algorithm compensates for this gap in video content.

What video wall controller or processor is required?

The 49VL5G-MRBX can be driven by a compatible video wall controller or processor. Common options include Datapath, Extron, and similar video wall management solutions. Contact Creation Networks for a complete video wall system recommendation including controller and mounting hardware.

Can this display be used in portrait orientation?

Portrait orientation capability depends on the mounting hardware and installation configuration. Confirm orientation support and any impact on image processing with Creation Networks before finalizing your video wall design.

What content management options are available for a VL5G-M video wall?

The VL5G-M series is compatible with LG's commercial signage management platforms and standard video wall controller software. Contact Creation Networks for guidance on content management system integration for your specific deployment.

Is this model rated for extended commercial hours of operation?

The VL5G-M series is designed for commercial deployment. Confirm the specific duty cycle rating with the LG data sheet or contact Creation Networks for details relevant to your installation requirements.
