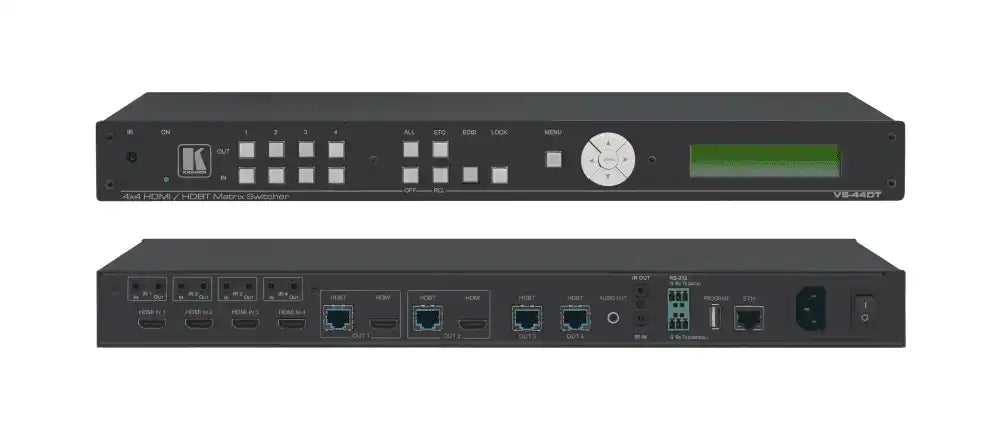

Kramer VS-44DT 4x4 HDMI, HDBaseT Matrix Switcher

VS44DT is a 4x4 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher that transmits video, audio, Ethernet, RS232 and IR signals over extended distances. The unit accepts up to four HDMI and four IR inputs as well as Ethernet and RS232 network and control. The inputs can be routed to any or all of the four HDBaseT outputs, the first two of which also have simultaneous HDMI outputs. VS44DT connects to compatible HDBaseT receivers such as, TP780RXR, TP580RXR and TP588D. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.

• Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel)
• Max. Resolution - 4K@60Hz (4:2:0) and WUXGA
• HDBaseT Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BCUNIKAT cables
• Cables - For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VS44DT
• HDBaseT Extension - Includes Video, Audio, Ethernet, RS232 and IR signals
• Outputs - 4 HDBaseT with outputs 1 and 2 having simultaneous HDMI outputs
• PoE Support - PoE provider to HDBaseT receivers such as the TP588D and TP780RXR
• HDTV Compatible
• HDCP Compliant
• EDID Capture - Copies and stores the EDID from a display device
• HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTSHD® and 7.1 PCM
• Non-Volatile Memory - Stores and recalls preset matrix configurations
• Automatic Output Shutdown - If no input signal is detected after a configurable idle period
• Kramer Protocol 3000 Support
• Lock Button - Prevents unwanted tampering with the settings
• Flexible Control Options - Embedded Web server, RS232, IR remote (available upon request)
• Worldwide Power Supply - 100240V AC
