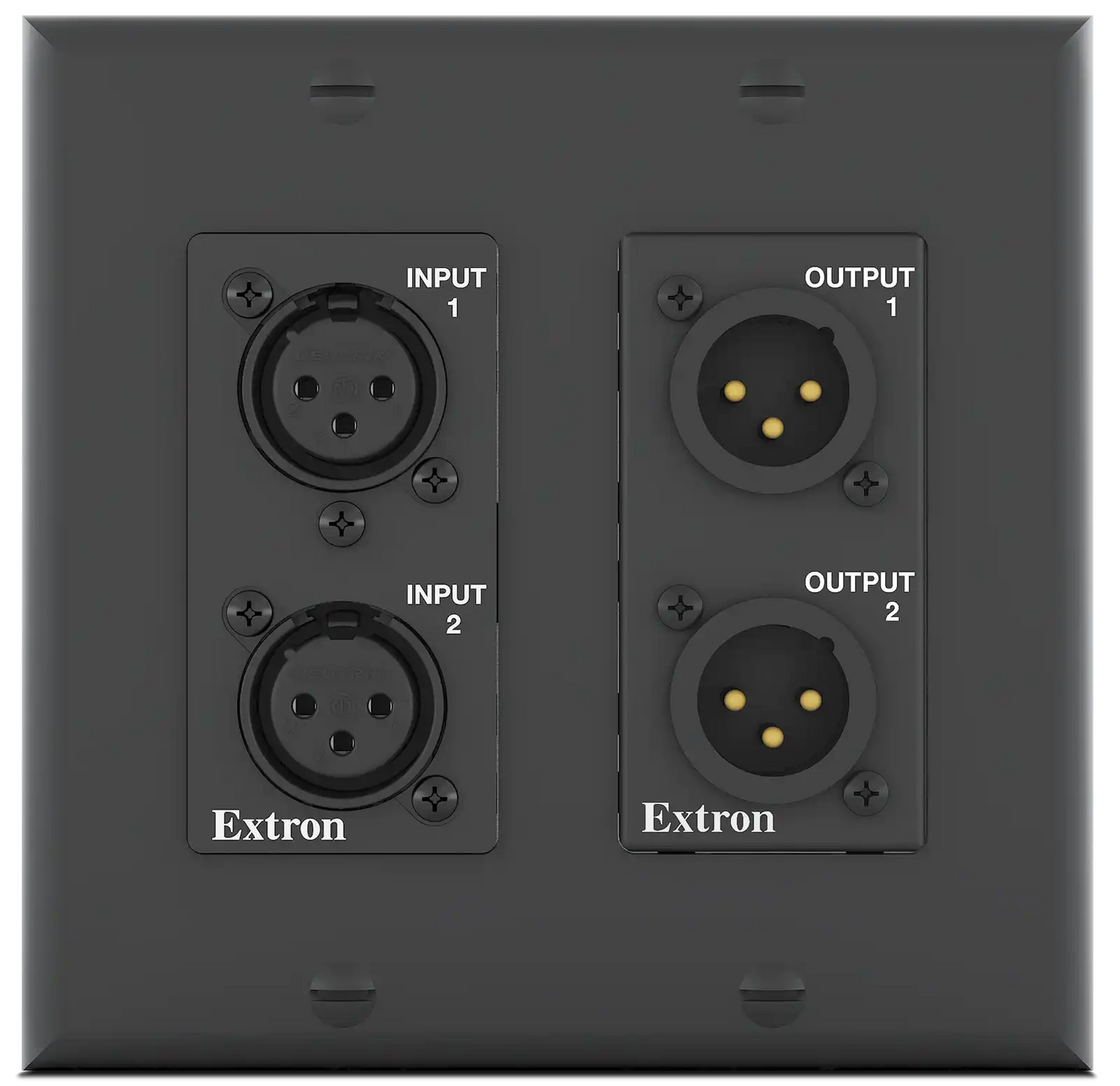

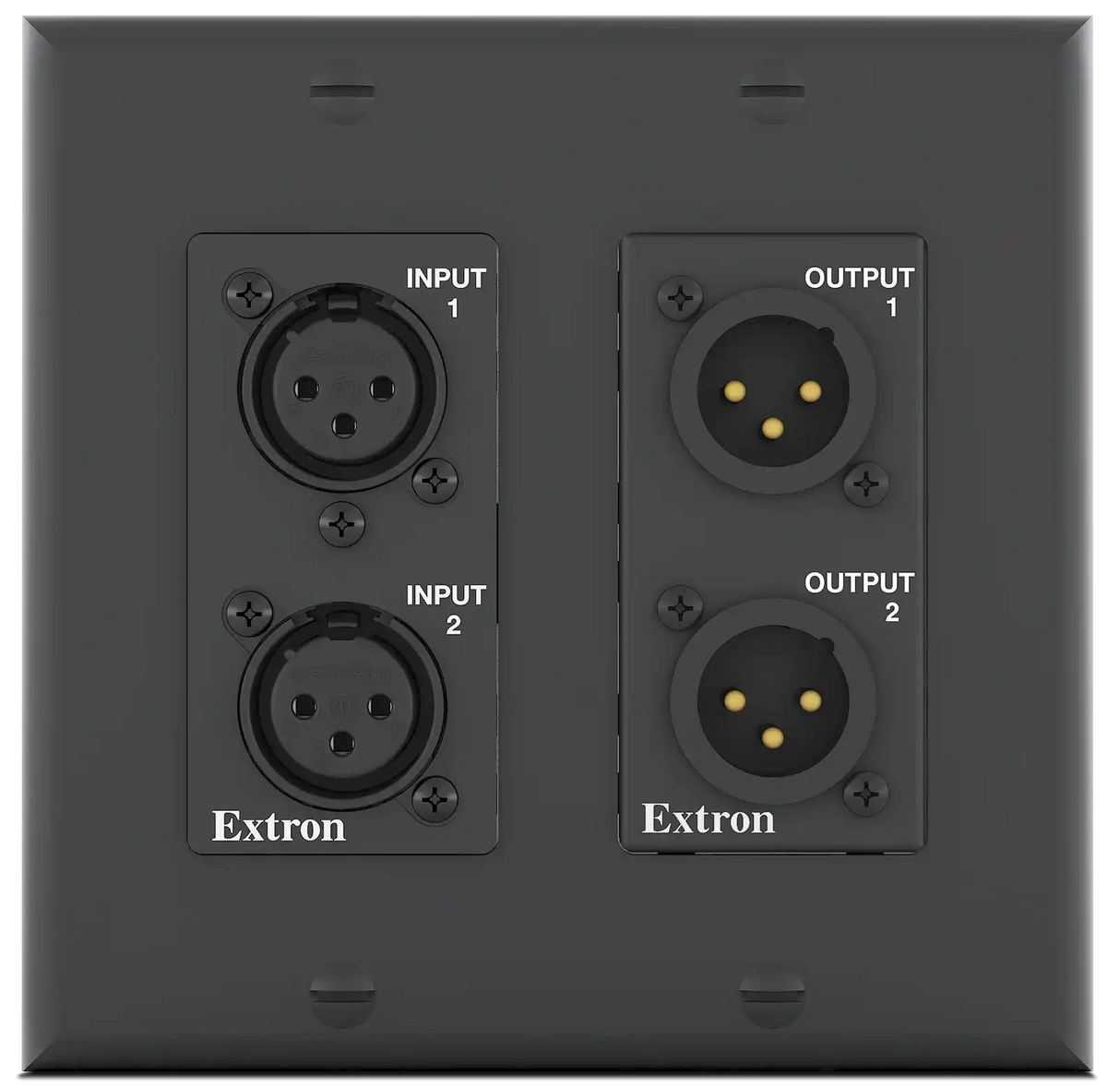

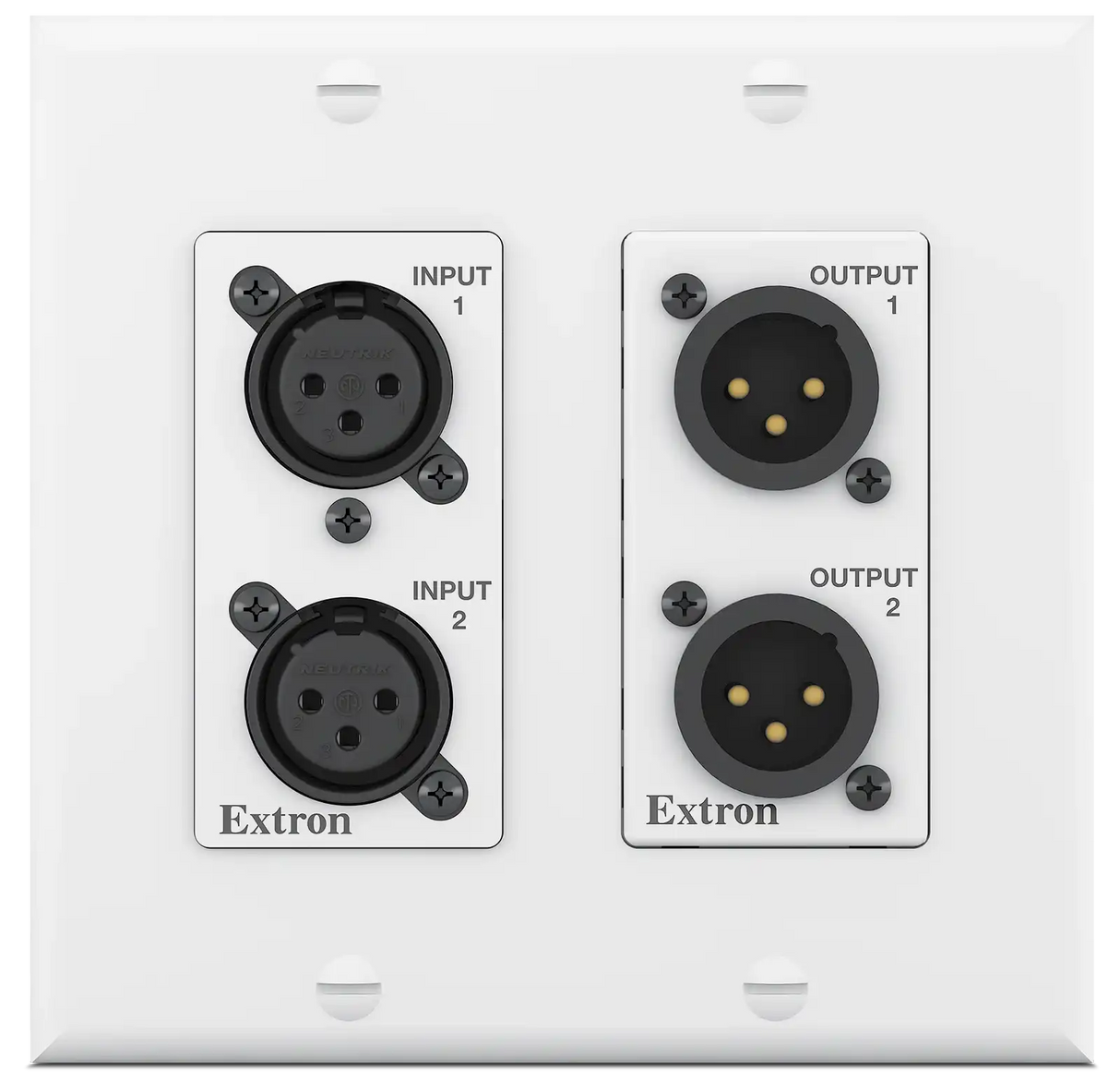

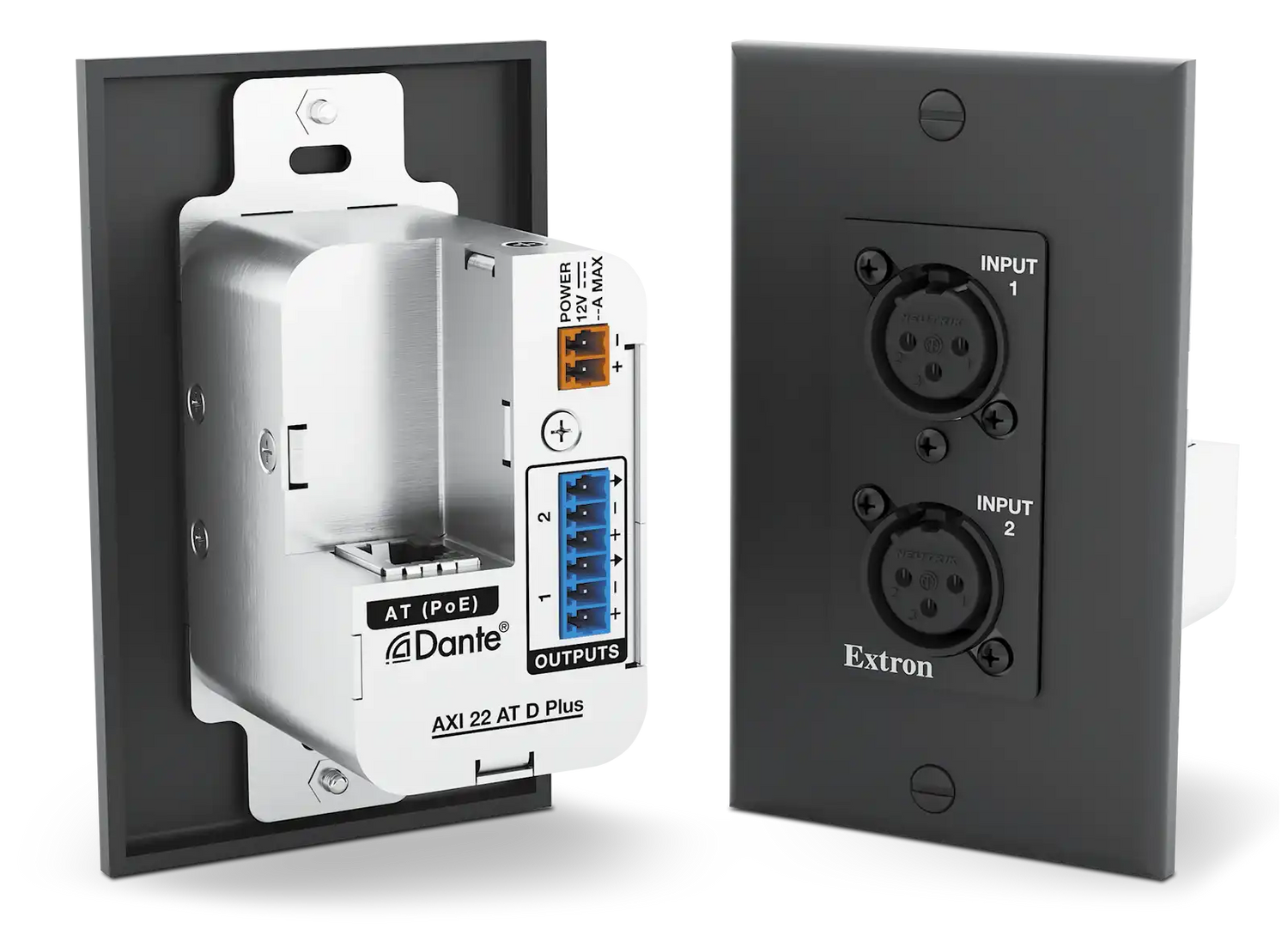

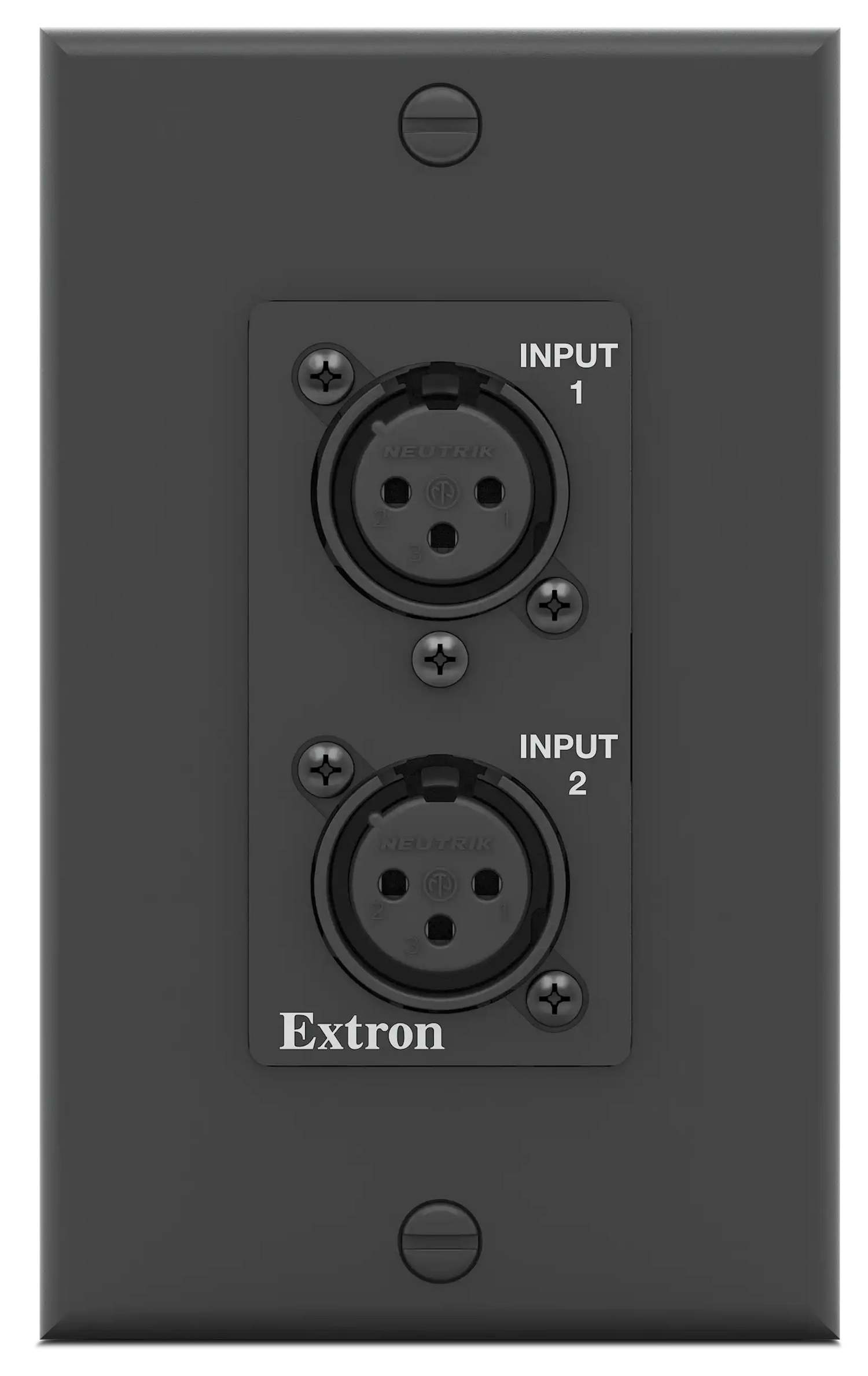

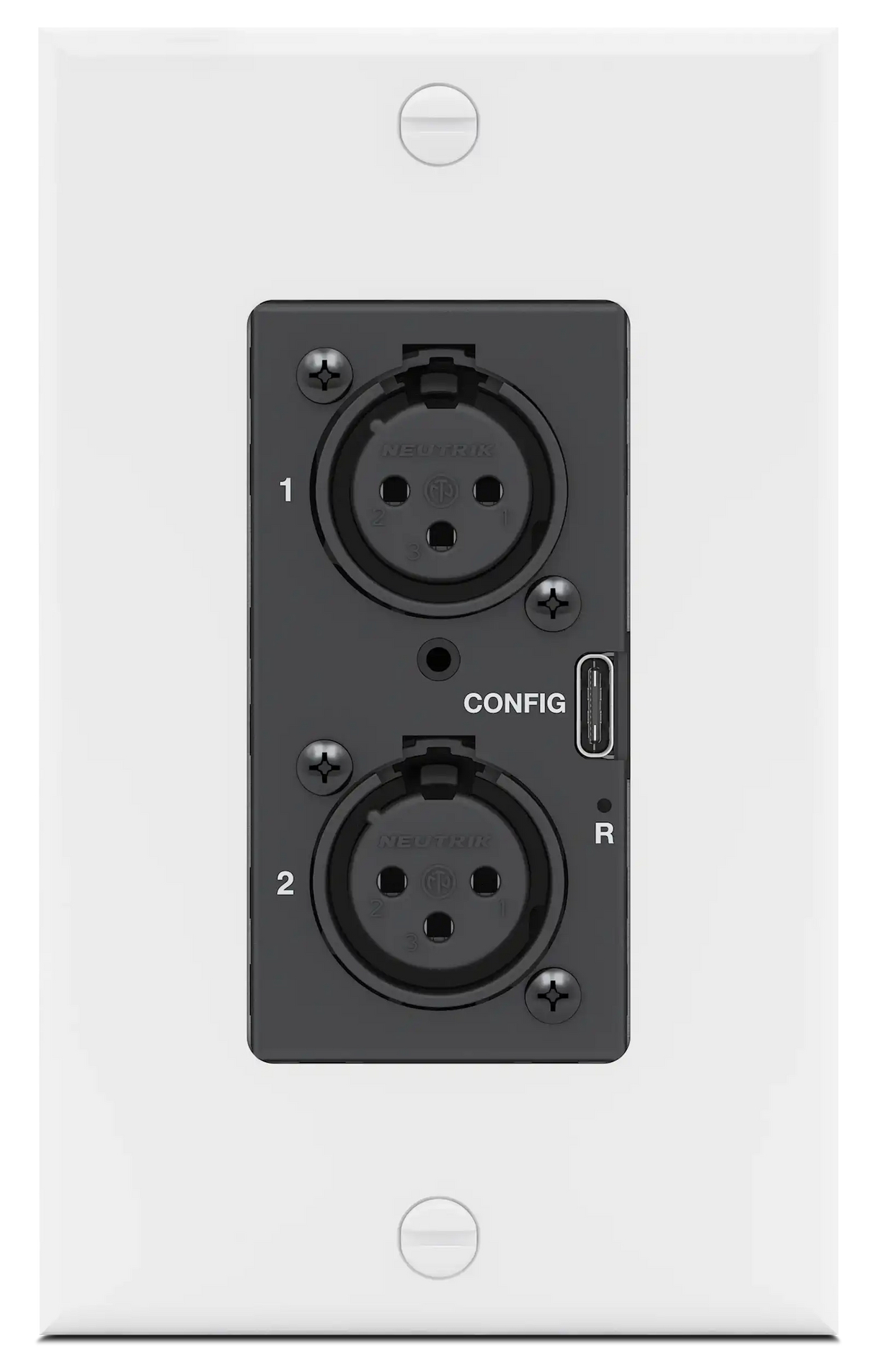

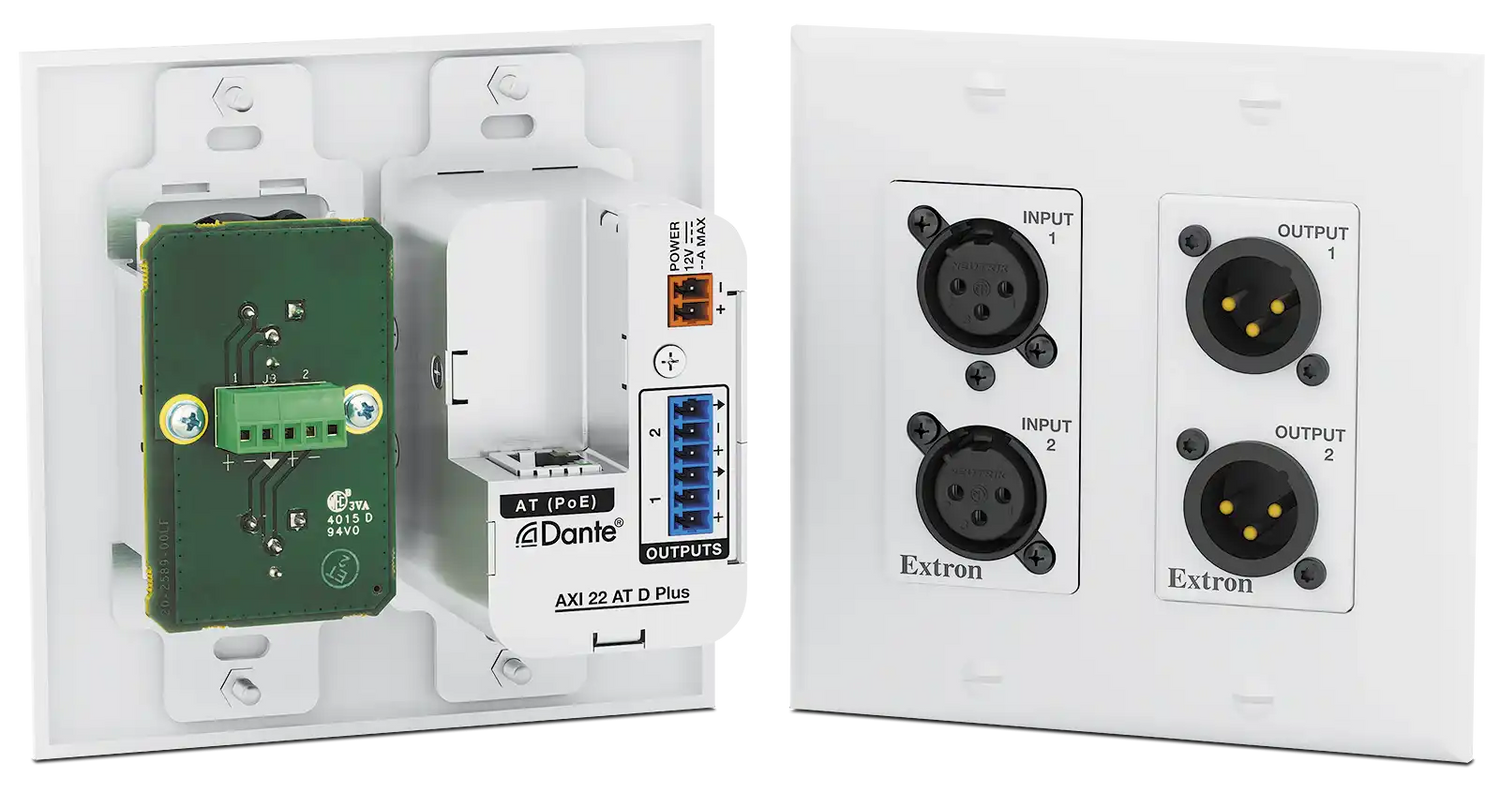

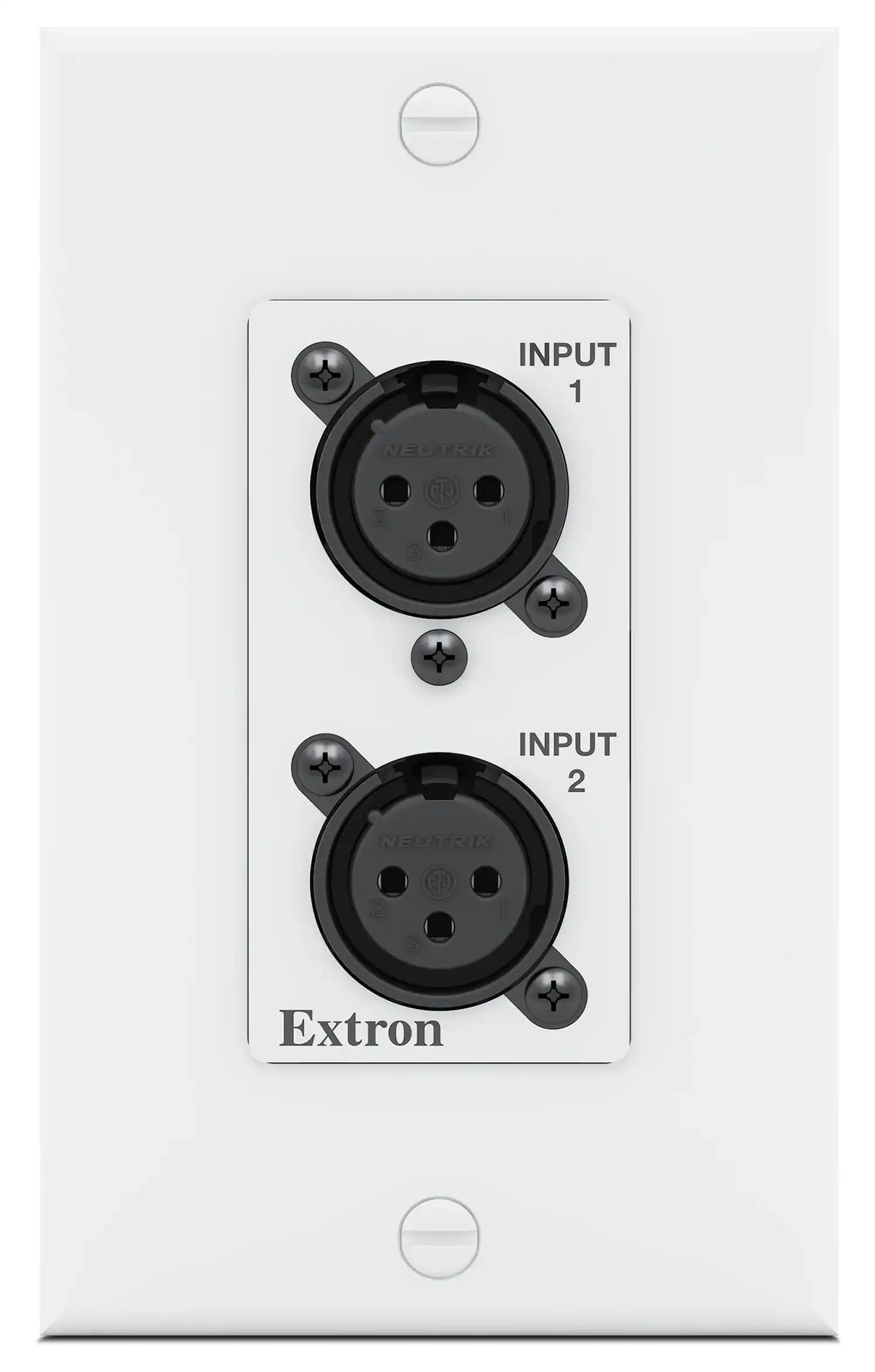

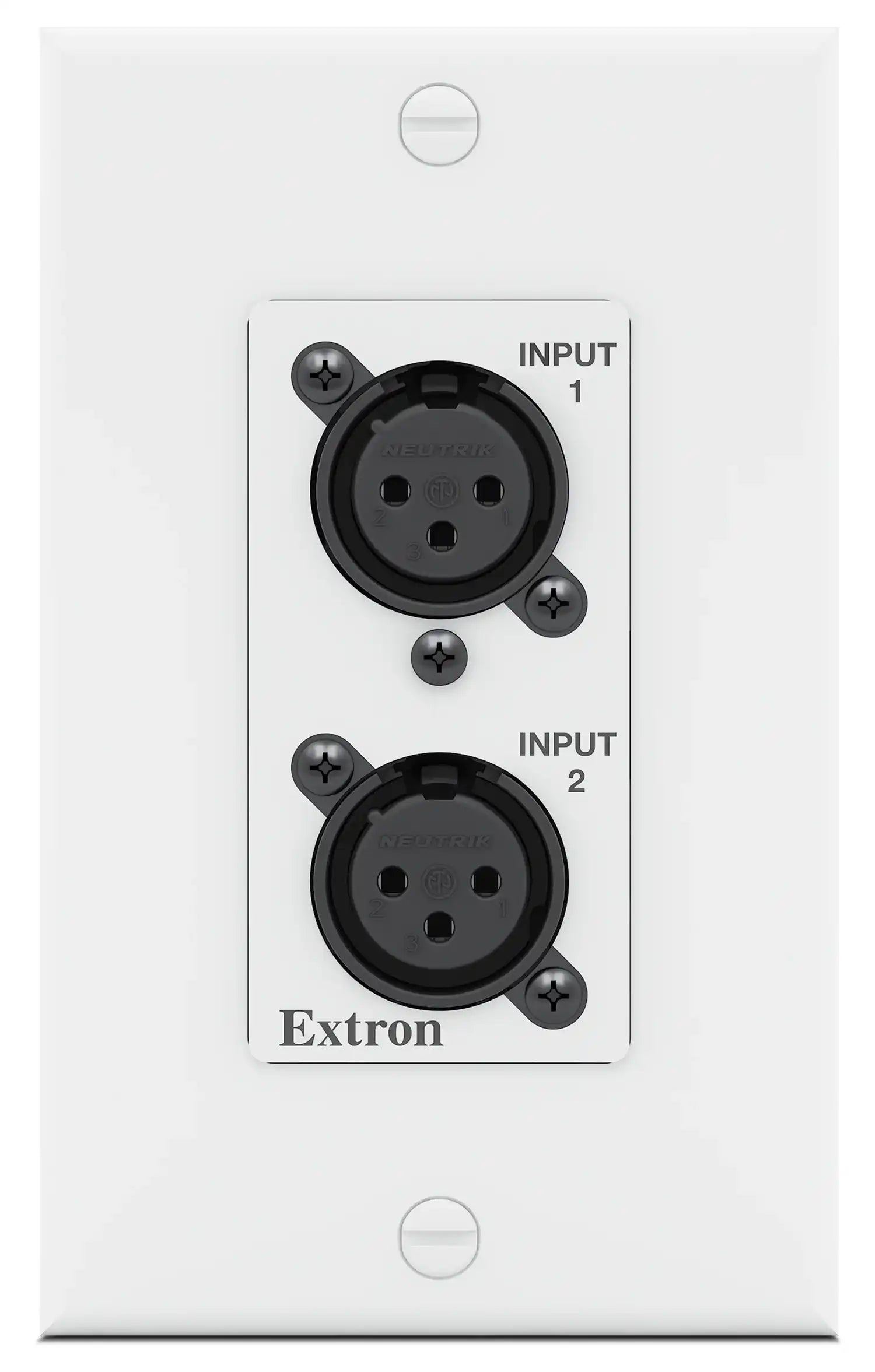

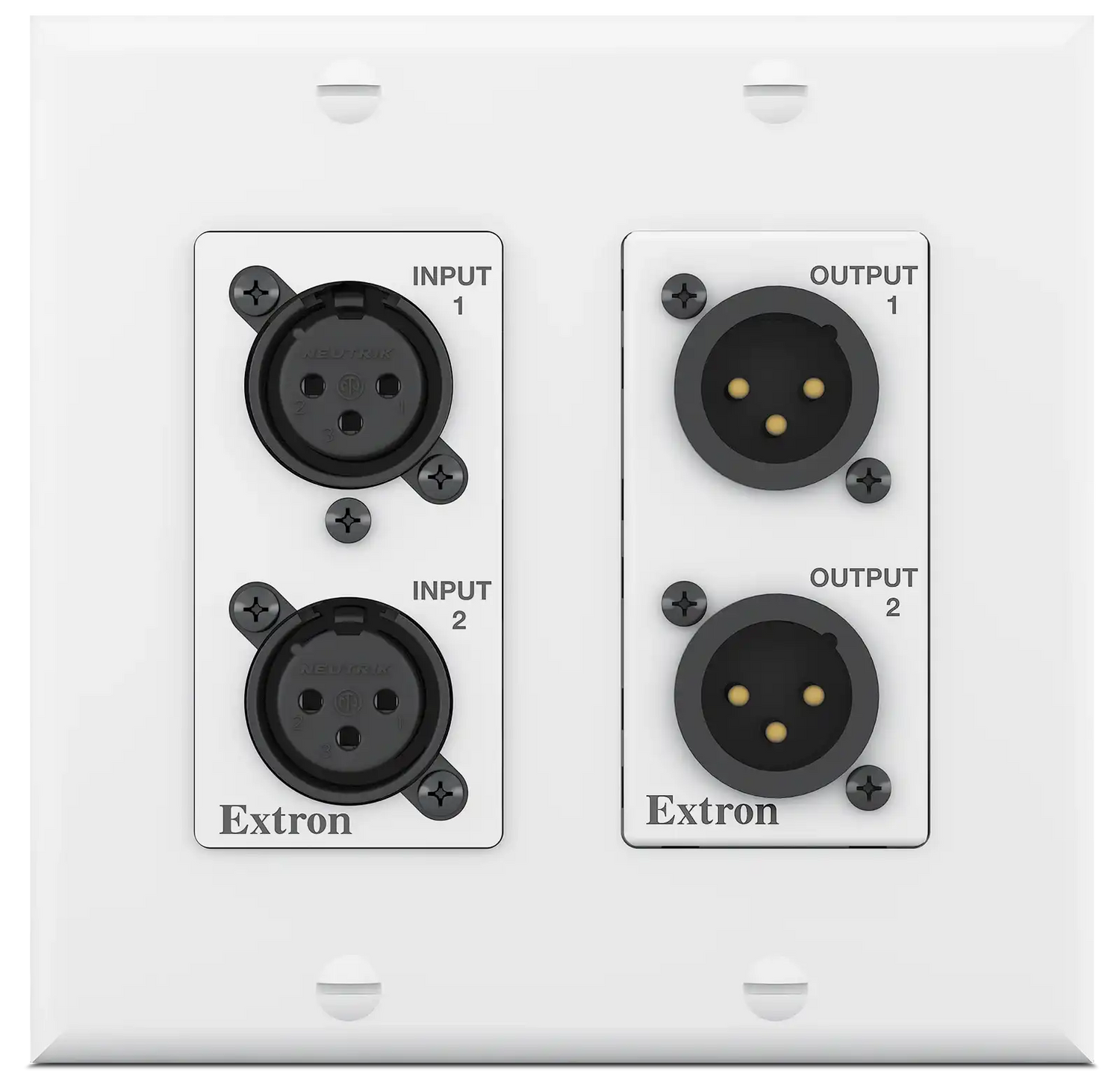

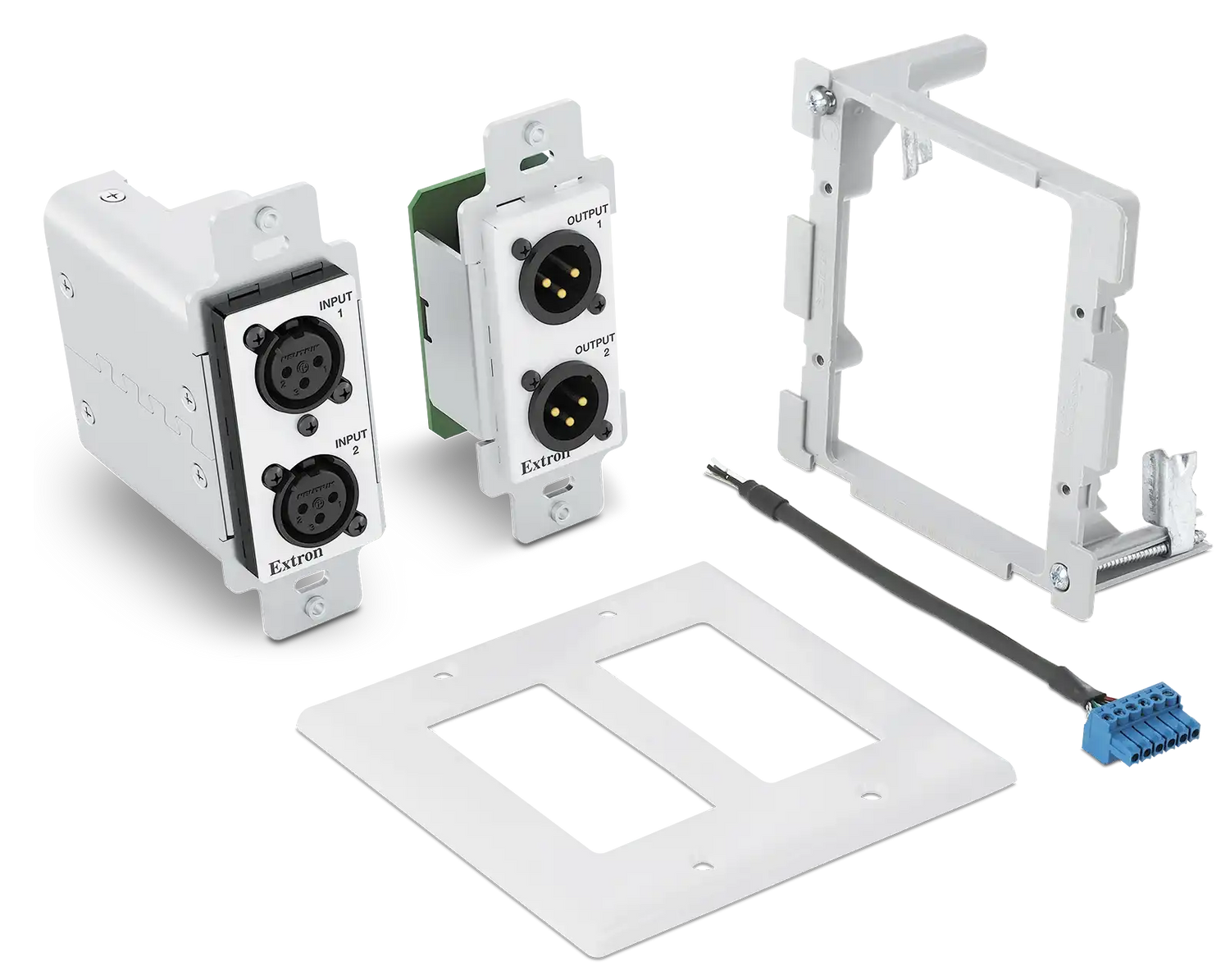

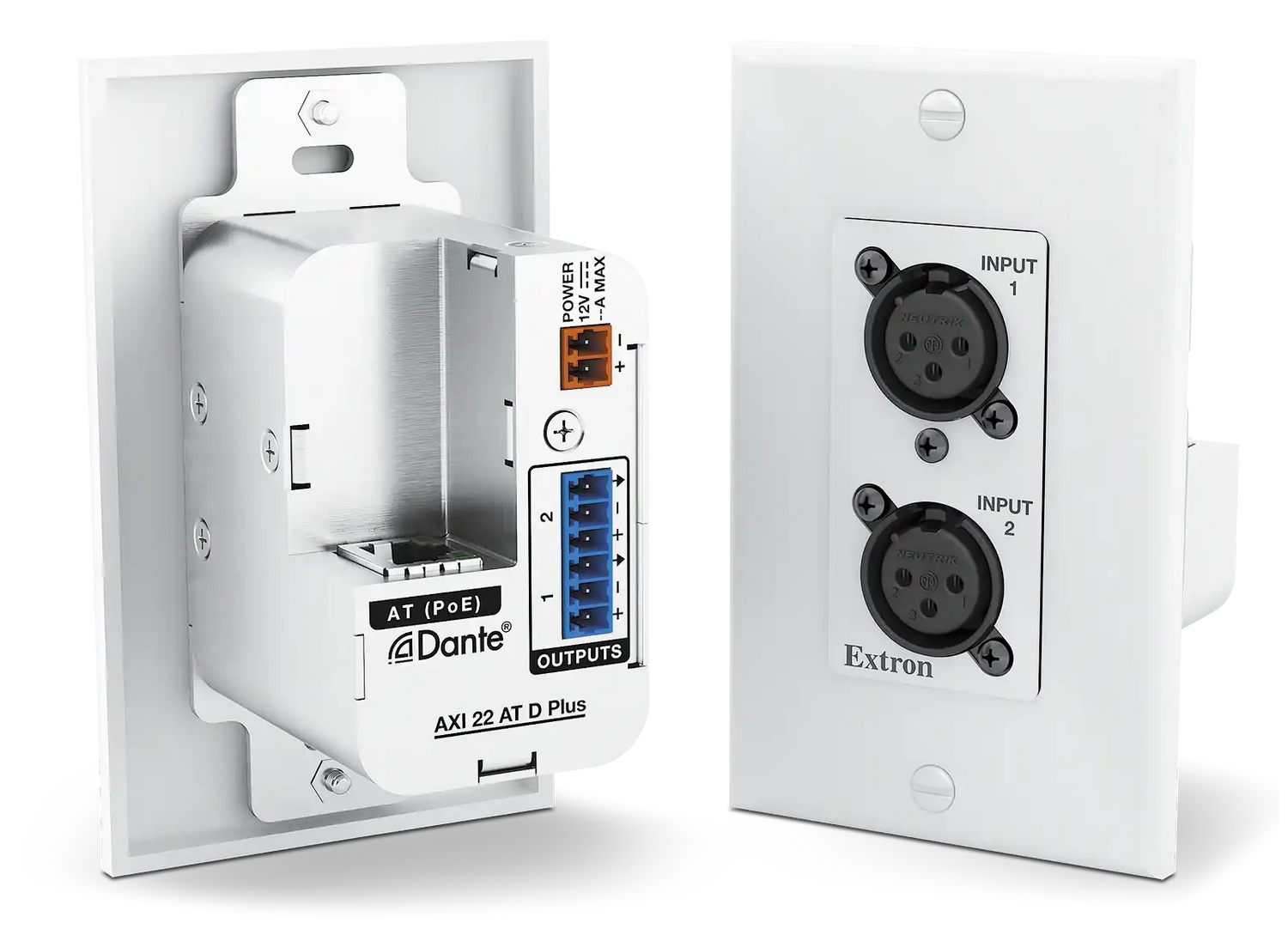

Extron AXI 22 AT D Plus Dual-Channel Analog Audio Interface with Transformer Isolation AXI 22 AT D Plus & WPD 102 XLRM Kit - Black

The Extron AXI 22 AT D Plus is a compact, dual-channel analog stereo audio interface that converts unbalanced stereo audio from consumer sources to balanced stereo audio for professional AV systems. It accepts two independent stereo audio inputs on dual RCA connectors per channel and outputs balanced stereo audio on captive screw terminals, providing clean signal conversion with transformer isolation to eliminate hum and ground loops. This interface is ideal for integrating multiple consumer devices with RCA outputs—such as media players, laptops, DVD/Blu-ray players, or set-top boxes—into balanced audio chains with amplifiers, DSPs, mixers, matrix switchers, or presentation systems in classrooms, conference rooms, boardrooms, training facilities, and control environments.

Featuring transformer-based galvanic isolation on each channel, independent adjustable gain control (±12 dB per channel) for precise level matching, and a rugged metal enclosure, the AXI 22 AT D Plus ensures reliable, low-noise performance in mixed consumer-professional AV setups. Its small form factor allows easy mounting under tables, in racks, or behind equipment, while captive screw terminals provide secure, vibration-resistant connections for permanent installations.

Features Chart

Specifications Table

Compare Chart

FAQ

• What is the main purpose of the AXI 22 AT D Plus? It converts two independent unbalanced stereo audio sources from RCA to balanced stereo audio for professional AV systems, with transformer isolation per channel.
• Does it require power? No, the AXI 22 AT D Plus is fully passive and requires no external power supply.
• How is gain adjusted? Independent rear-panel trim pots provide ±12 dB gain adjustment per channel to match input and output levels precisely.
• What type of isolation does it use? Transformer isolation per channel provides galvanic isolation and ground lift to eliminate hum and ground loop noise.
• What connectors are used? Inputs are four RCA female (two stereo channels, unbalanced), and outputs are two 3.5 mm captive screw terminals (balanced stereo, one per channel).
• Can it be used in rack installations? Yes, its compact size and mounting options make it suitable for rack, under-table, or surface mounting in AV systems.
