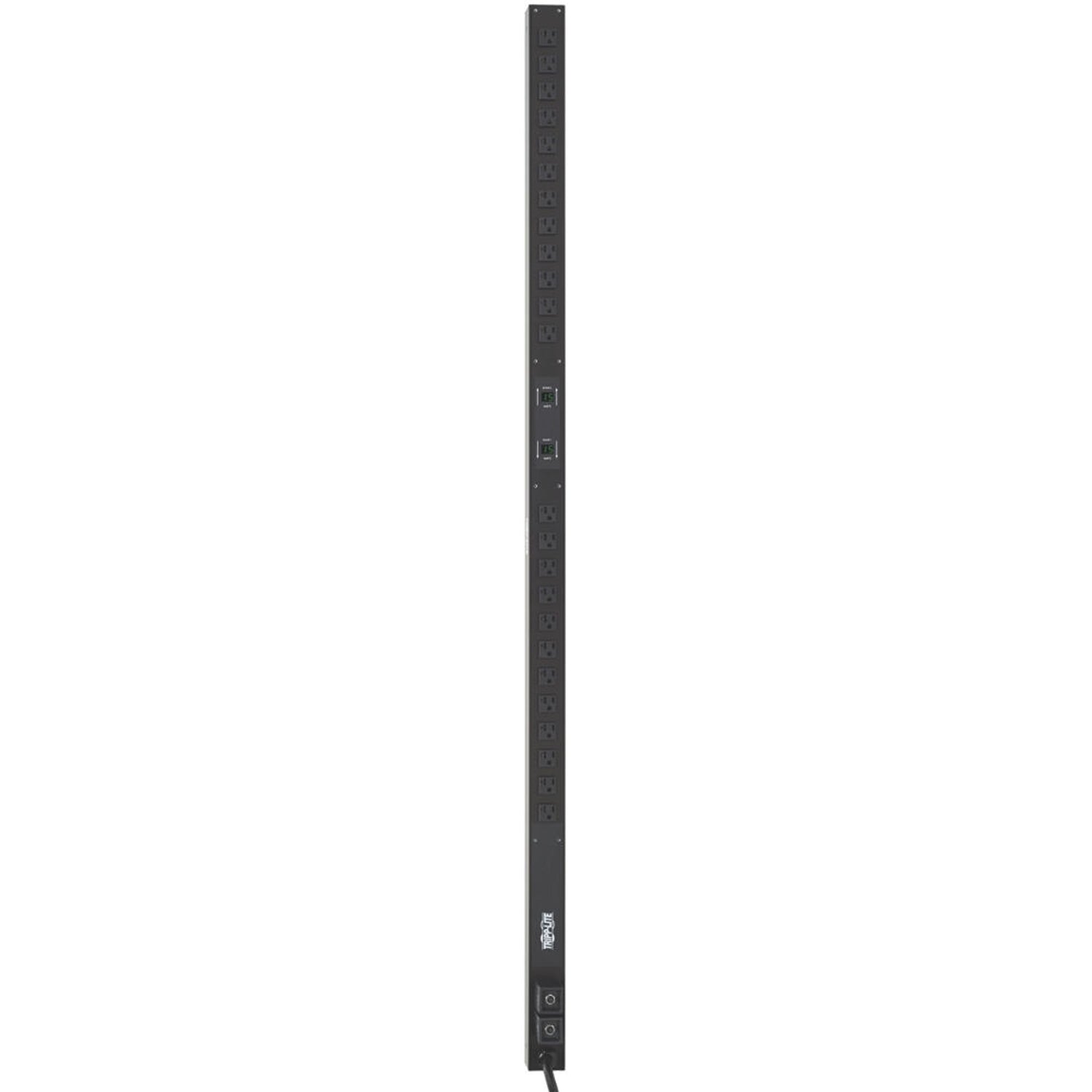

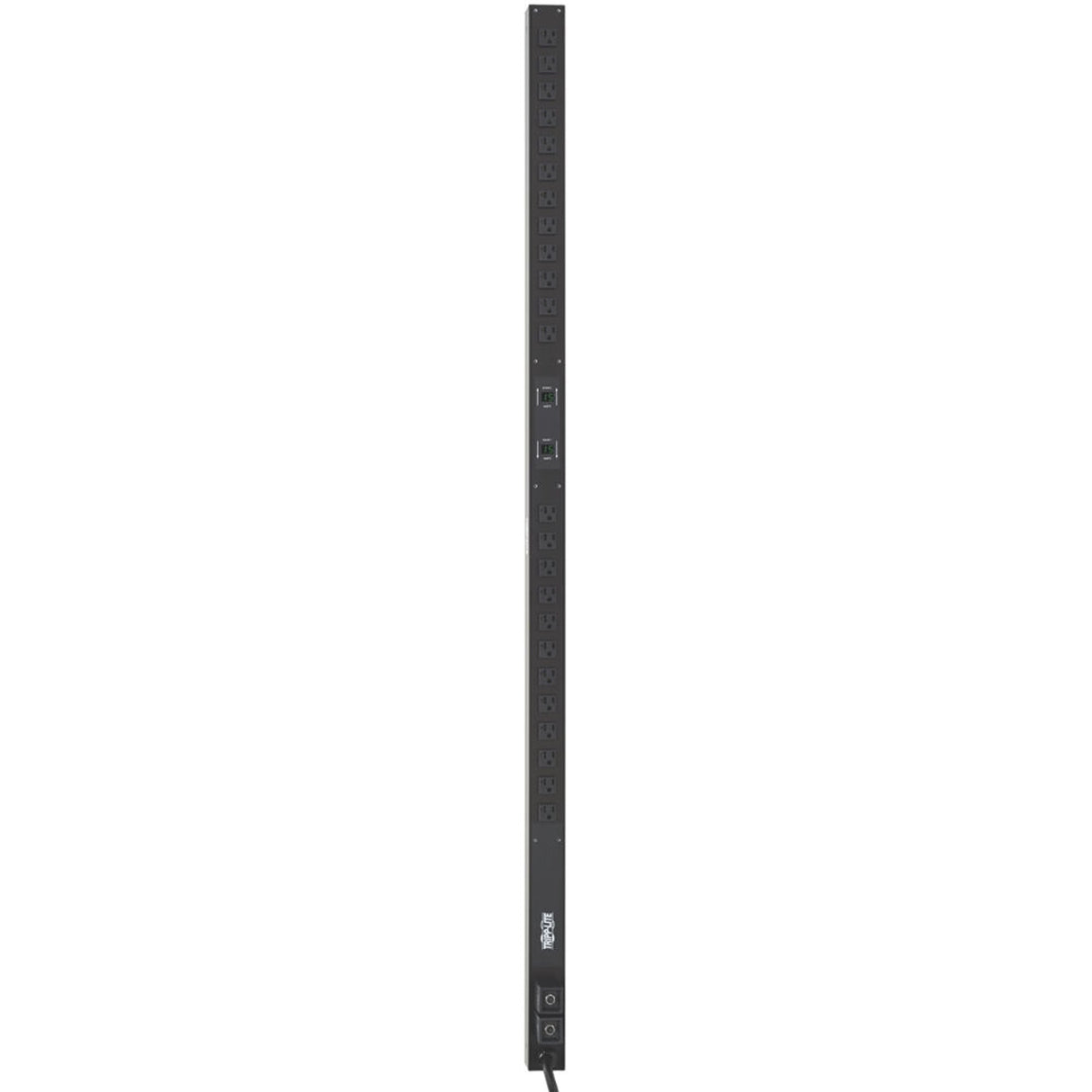

Eaton PDUMV30 – 120V 30A Metered Vertical 0U PDU

Product Overview

The Eaton PDUMV30 is a 120V metered vertical 0U rack PDU built to give IT managers continuous visibility into network power consumption without occupying horizontal rack space. Supporting 30A maximum capacity (agency de-rated to 24A) across 24 NEMA 5-15/20R outlets, this vertical PDU distributes UPS or generator power to multiple servers in data centers, server rooms, and network closets while its built-in two-character LED displays report current draw in one-amp increments.

Product Description

Vertical 0U PDUs are a common choice in dense server racks because they free up horizontal rack units for compute and storage, and the PDUMV30 is built specifically for that role. The unit measures 63.75 inches and mounts vertically using included brackets compatible with standard 2 and 4 post racks, as well as under-counter or wallmount configurations. Its 24 5-15/20R outlets are arranged into two separately metered and breakered 20A load banks, each with 12 outlets, and each bank includes its own two-character LED display for continuous, easy-to-read current monitoring in one-amp increments. This lets IT staff track load on each bank independently and rebalance connected equipment before a breaker trips. A 10-ft. attached line cord with L5-30P input plug connects to facility power, a generator, or a UPS, and the switch-free, unfiltered pass-through design reliably distributes that power to servers and networking equipment without introducing a switching point of failure. Toolless button-mount installation simplifies setup in compatible racks, and plug retention brackets keep connected equipment securely plugged in even in high-traffic cabinets. This metered PDU is well suited for complex, redundant power applications in data centers, server rooms, and network closets where phase and load balance need ongoing monitoring.

Key Features

• Dual LED Ammeter Displays — Two built-in two-character displays report current draw in one-amp increments for each of the PDU's two load banks.
• 24 NEMA 5-15/20R Outlets — Outlets are split into two separately breakered and metered 20A load banks for balanced power distribution.
• Toolless Button Mounting — Compatible mounting brackets allow quick, toolless installation into 2 or 4 post racks.
• Plug Retention Brackets — Retention hardware keeps connected equipment securely plugged in and continuously powered.
• Switch-Free Pass-Through — Unfiltered electrical pass-through reliably distributes UPS or generator power without a switching point of failure.
• 0U Vertical Form Factor — 63.75-inch vertical design preserves horizontal rack space for servers and networking gear.

Typical Applications

• Data centers
• Server rooms
• Network closets

Technical Specifications

Frequently Asked Questions

What racks is the PDUMV30 compatible with?

The included mounting brackets support vertical installation in standard 2 and 4 post racks, as well as under-counter or wallmount configurations.

Can I monitor each load bank separately?

Yes, each of the two 20A load banks has its own dedicated breaker and LED display for independent current monitoring.

What equipment can connect to this PDU?

Its 5-15/20R outlets support standard networking and server equipment cords using 5-15P or 5-20P plugs.

Is the PDUMV30 compatible with UPS and generator power sources?

Yes, the switch-free pass-through design reliably distributes power from any protected UPS, generator, or mains source.

How is the unit installed without tools?

Toolless mounting buttons allow the PDU to snap into button-mount compatible racks without additional hardware.

What warranty applies to this unit?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
