Eaton PDUMNV20LX – 0U Vertical Monitored PDU

Product Overview

The Eaton PDUMNV20LX is a 0U vertical, single-phase monitored rack PDU built for server racks and network cabinets that need a high outlet count without consuming horizontal rack unit space. It uses the LX platform interface for local monitoring of load and voltage. Integrators researching a 0U vertical PDU or 24-outlet monitored rack PDU for a data center or server room rack will find this model well suited to compact and mid-size racks. It is commonly deployed in server rooms, network closets, and AV equipment racks.

Product Description

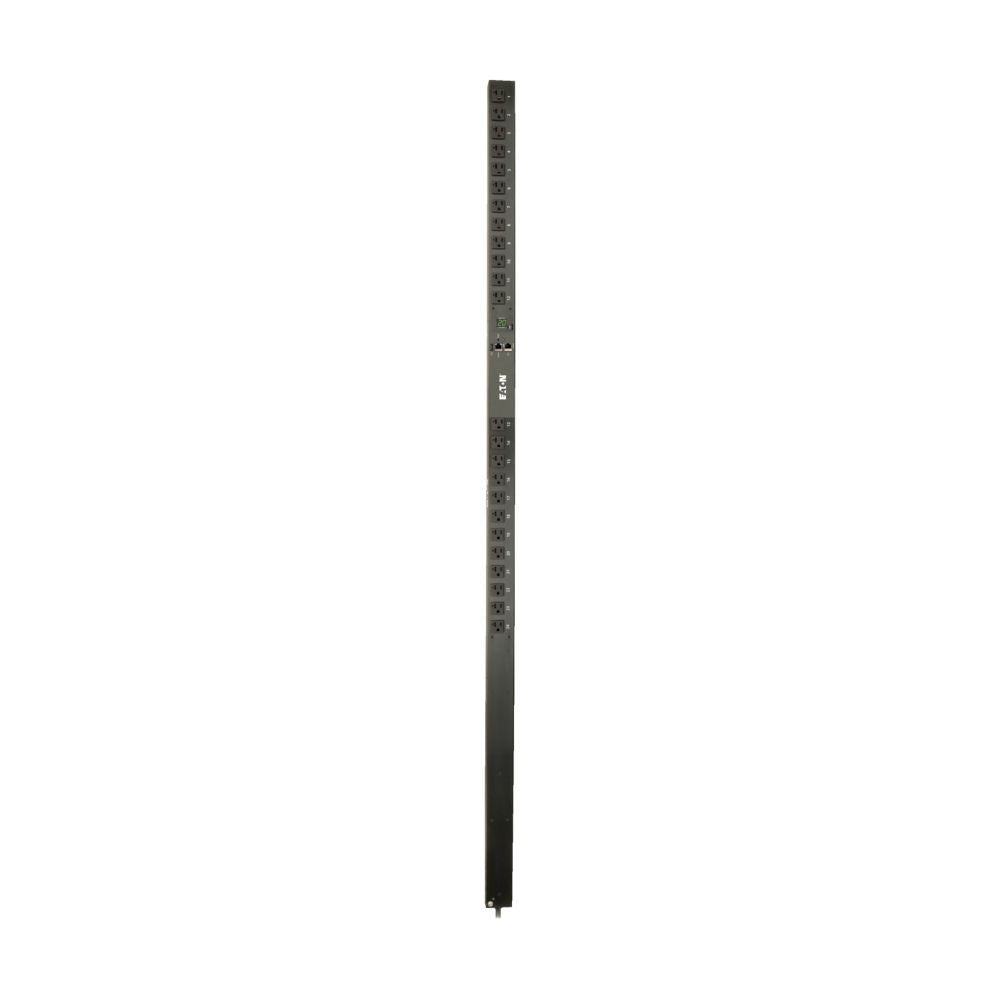

The PDUMNV20LX mounts vertically along the rear rail of a standard rack in a 0U profile that measures 70 inches tall, delivering 1.9kW of capacity across 24 NEMA 5-20R outlets from a single 120V, 16A circuit. Input is via a NEMA L5-20P locking plug on a 10 ft. cord, giving installers flexible reach to nearby power sources. As a monitored PDU, it reports load data through the LX interface, letting rack occupants track current draw without needing a separate power monitoring appliance. The tall, narrow 0U vertical design keeps all 24 outlets accessible along the height of the rack while leaving every rack unit free for servers, switches, and other active equipment. This makes the PDUMNV20LX a good fit for racks that need many individual outlets — such as racks with numerous small network appliances, PoE injectors, or single-corded devices — rather than a smaller number of high-draw devices. It suits server rooms, IT closets, and commercial AV racks running on standard 120V circuits.

Key Features

• 24 NEMA 5-20R Outlets — High outlet density for racks with many individually corded devices.
• 0U Vertical Mounting — 70-inch vertical profile preserves horizontal rack unit space.
• 1.9kW Capacity on a 120V Circuit — Sized for standard single-phase server room and network closet power.

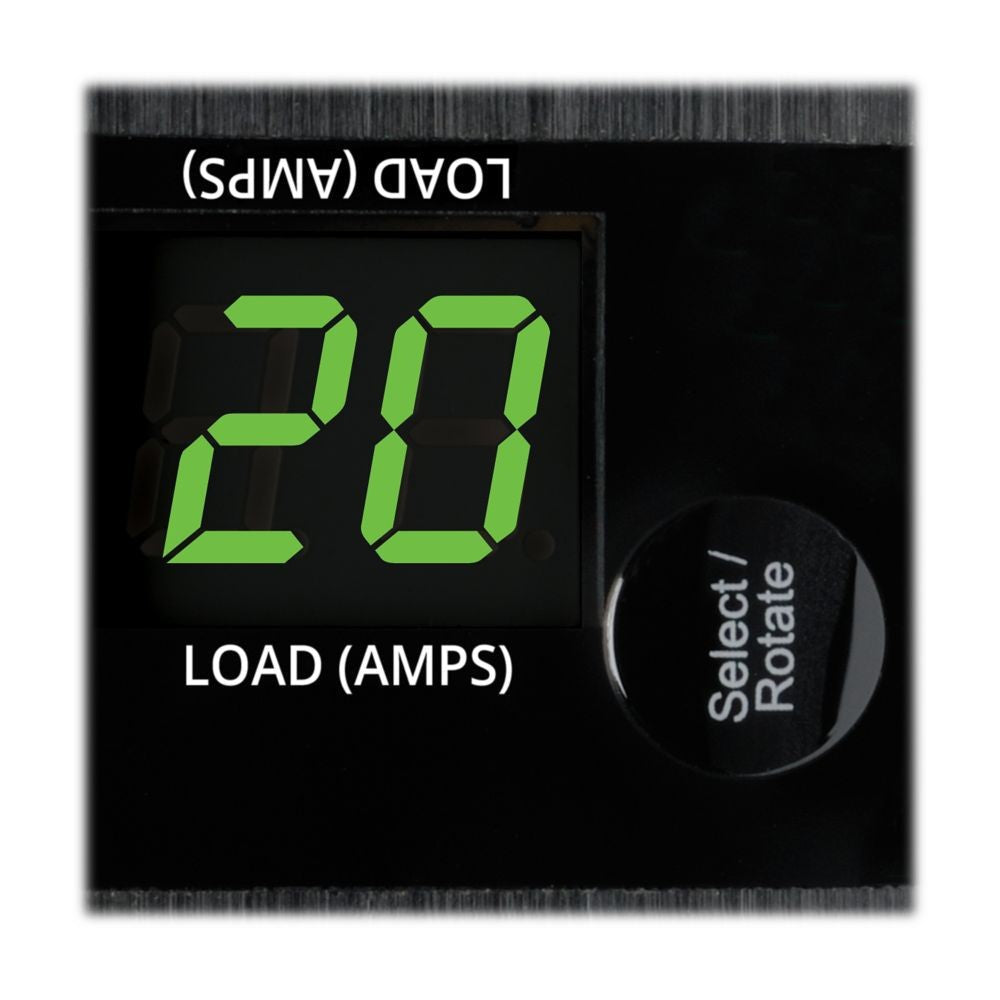

• LX Platform Monitoring — Local visibility into load without a separate monitoring device.

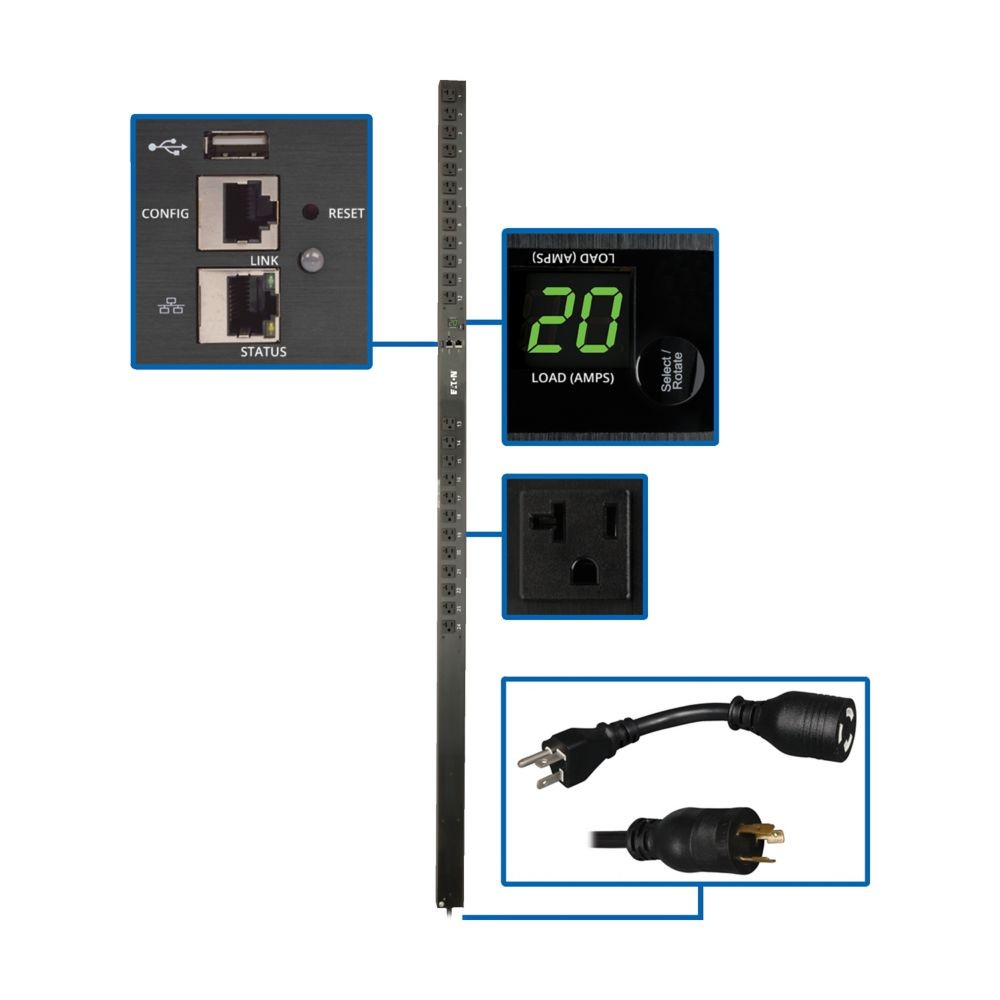

• NEMA L5-20P Input, 10 ft. Cord — Locking plug with extended reach for flexible installation.

Typical Applications

• Server room
• Network closet
• Data center
• Huddle room

Technical Specifications

Frequently Asked Questions

Does the PDUMNV20LX fit standard 19-inch racks?

Yes. The 0U vertical chassis mounts along the rear rail of standard 19-inch server racks and equipment cabinets.

Can this PDU support many low-draw devices in one rack?

Yes. Its 24-outlet NEMA 5-20R layout is designed for racks with numerous individually corded devices such as network appliances or PoE injectors.

Does the PDUMNV20LX provide remote outlet switching?

No. It is a monitored PDU that reports load through the LX interface; it does not offer per-outlet switching or remote control.

What circuit does this PDU require?

A dedicated 120V, single-phase circuit rated at 16A, connected via the included NEMA L5-20P plug.

Is this PDU suitable for AV equipment racks?

Yes. Its 0U vertical profile and 120V outlet configuration make it a practical fit for commercial AV racks alongside server and networking gear.

What warranty does Eaton provide on this PDU?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
