Eaton EVMAGU23X-3 – G3 Universal-Input PDU, 42 Outlets

Product Overview

The Eaton EVMAGU23X-3 is a G3-platform universal-input managed rack PDU built to accommodate both single-phase and 3-phase power environments in 120V and 230V regions. Rated from 5kVA single-phase to 23kVA 3-phase, this managed PDU is designed for 42-outlet server and network racks where flexible voltage support matters more than a fixed regional configuration. It suits data centers and colocation facilities that need one PDU model to serve deployments across different power standards without maintaining separate SKUs.

Product Description

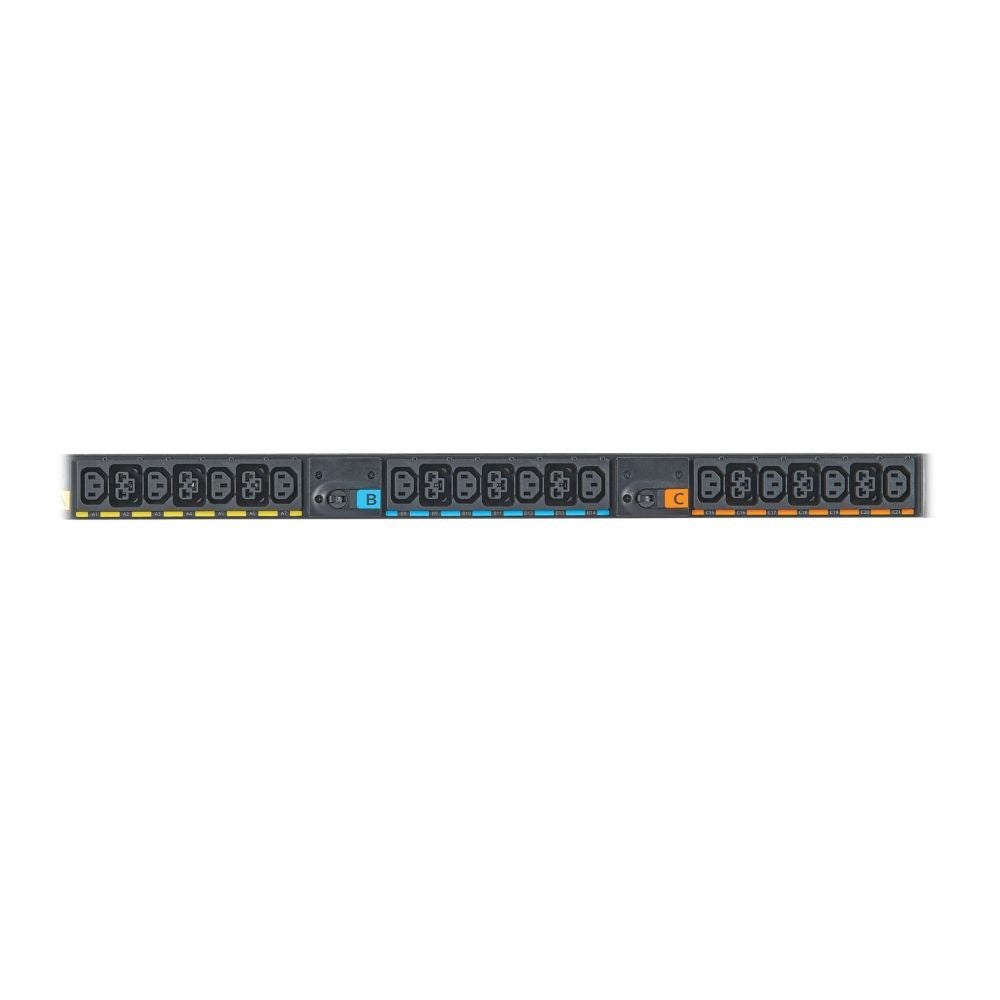

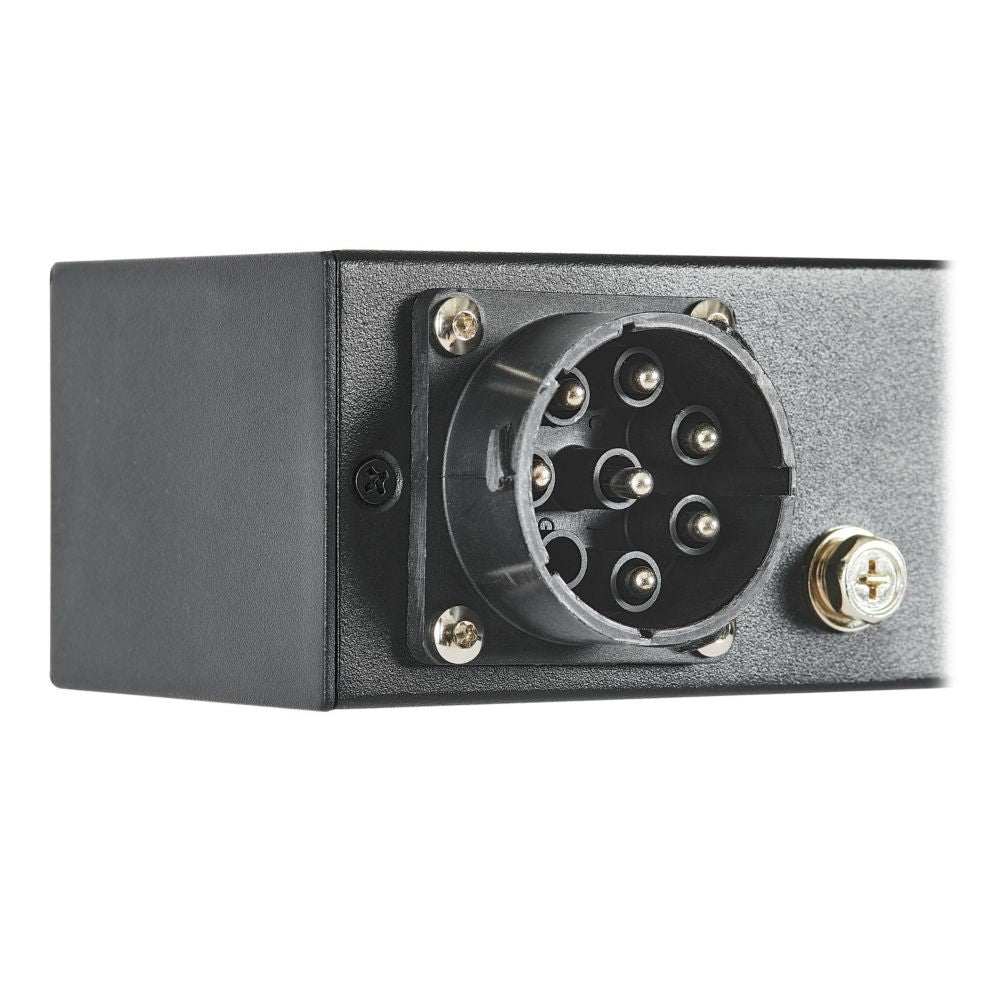

The EVMAGU23X-3 supports universal input with 12 available plug types — including 332P6W, 360P6W, 460P9W, 516P6W, 532P6W, 560P6W, 560P9W, Hubbell CS8365C 50A, and NEMA L-series connectors — with a 10 ft. locking-connector cord sold separately to match the exact facility power standard. Output is delivered across 42 total outlets: 24 IEC 60320 C13 and 18 high-retention, P-Lock cable-compatible C39 combo outlets, giving integrators flexibility to power a wide range of connected equipment. The 72-inch aluminum chassis mounts in a 0U vertical orientation along the rear rack rail.

All 42 outlets on the EVMAGU23X-3 provide metering, monitoring, and switching, supported by six low-profile circuit breakers (20A US / 16A Europe) for circuit protection. Remote management is available through a standard web browser or SNMP integration, and the hot-swappable eNMC module with an integrated LCD display gives on-unit visibility into load without requiring network access. Measurement accuracy of plus or minus 1% for amps, volts, and watts makes this PDU suitable for data centers that need precise power reporting for capacity planning and billing in colocation environments.

Key Features

• Universal Input, 12 Plug Types — Offers flexible input cabling that covers single-phase and 3-phase deployments.
• 5kVA to 23kVA Range — Scales from lighter single-phase loads to full 3-phase capacity.
• 42 Total Outlets — Combines 24 C13 and 18 high-retention P-Lock C39 combo outlets.
• All-Outlet Metering — Provides monitoring and switching on every outlet, not just select circuits.
• Hot-Swappable eNMC Module — Pairs an on-unit LCD display with a network card that is replaceable without downtime.
• +/-1% Measurement Accuracy — Delivers reliable data for capacity planning or colocation billing.
• Aluminum 0U Chassis — Uses a lightweight, durable 72-inch vertical rack mount.
• Six Low-Profile Breakers — Provides circuit-level protection across the outlet banks.
