Eaton EMAGFFA5A5A5A5L – 0U Vertical 3-Phase Managed Rack PDU

Product Overview

The Eaton EMAGFFA5A5A5A5L managed rack PDU is built for data centers and server rooms that need remote power monitoring and individual outlet control in a 0U vertical footprint. As a 3-phase managed PDU, it distributes power across a high-density rack while giving IT teams visibility into consumption at the outlet level. This model fits well in colocation racks, server rooms, and enterprise data center deployments where rack space is limited and remote management is a requirement. Commercial AV and IT integrators specifying a managed rack PDU for 3-phase environments will find this configuration suited to high-outlet-count installations.

Product Description

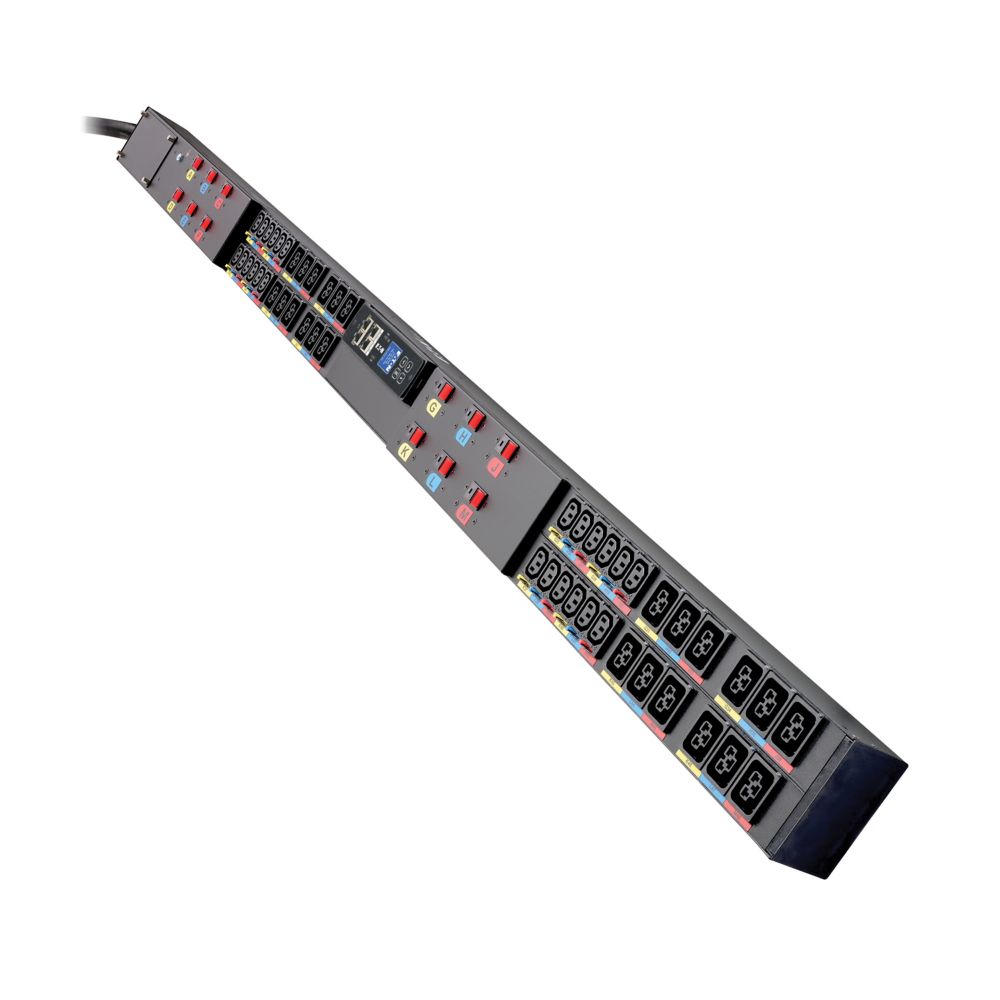

This Eaton managed rack PDU (see the product photo for outlet layout and physical form factor) belongs to Eaton's configurable managed PDU line, identifiable by the "EMA" prefix that Eaton uses to designate its managed rack PDU family. The specific configurator code EMAGFFA5A5A5A5L was not found published verbatim on Eaton's site during research; the closest publicly documented configuration, EMAGLFA5A5A5A5L, is a 3-phase, 0U vertical managed PDU rated 208V/48A/17kW with a 460P9W input plug and 48 total outlets (24 C13 and 24 C39 receptacles), a 6 ft. input cord, and outlet-level control. Given the shared EMAG...FA5A5A5A5L naming pattern, this SKU is very likely the same or a closely related configuration, differing only in a single configurator character (input cordset or outlet-group option). Buyers should confirm the exact input plug, cordset, and outlet breakdown with Eaton or an authorized distributor before final specification. As a managed PDU, this unit is designed to support remote power cycling and outlet-level monitoring through Eaton's network management module, letting facilities staff reboot hung equipment without a site visit. The 0U vertical form factor mounts in the rear channel of the rack, preserving 1U/2U rack space for servers, switches, and other IT equipment. This class of PDU is typically deployed in dense 3-phase data center racks where balancing load across phases and monitoring per-outlet draw is essential for capacity planning.

Key Features

• 0U Vertical Form Factor — Mounts in the rack's rear vertical channel, freeing horizontal rack units for servers and network gear.
• 3-Phase Input — Distributes load across three phases for higher-density power delivery to a single rack.
• High Outlet Count — 48 total outlets support large numbers of connected devices in dense server or network racks.
• Managed/Outlet-Level Control — Enables remote monitoring and outlet switching for reboot-without-a-truck-roll operations.
• Mixed Receptacle Types — C13 and C39 outlet mix (per the closest documented configuration) accommodates both standard C14 and higher-amperage C20 device cords.
• Commercial-Grade Construction — Designed for continuous-duty operation in data center and server room environments.

Technical Specifications
