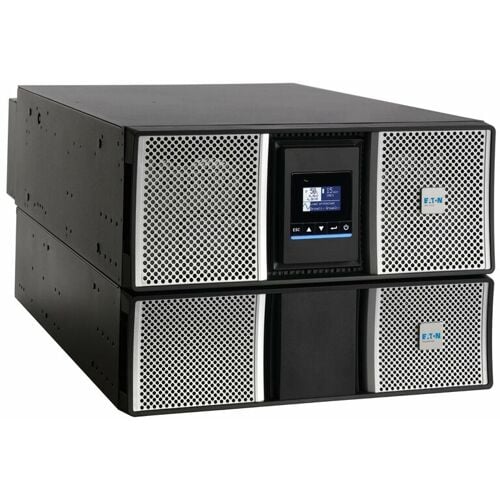

Eaton 9PX8KTF5G2 – 8kVA Rack UPS for Edge Networks

Product Overview

The Eaton 9PX8KTF5G2 is an 8kVA/8kW online double-conversion UPS built for distributed IT and edge network deployments, including larger AV racks that combine switching, processing, and display infrastructure. As a 208/120V UPS for edge networks, it delivers true sine wave output with no transfer time, positioning it as a dependable rack-mount UPS for AV rack rooms that require enterprise-grade backup power. At 7U, it fits a commercial UPS battery backup installation in a data closet or centralized AV equipment room serving multiple downstream zones.

Product Description

The 9PX8KTF5G2 is rated 8 kVA / 8 kW with a 208V default input that can be configured across 200/208/220/230/240V, and delivers 120/240V output through eighteen 5-20R outlets and three L6-30R outlets, giving integrators flexibility to serve a wide range of connected AV and IT equipment from a single UPS. As an online double-conversion system, the load runs continuously off the inverter, so switching, control processors, and display infrastructure never experience a transfer gap during a utility disturbance. Housed in a 7U rack/tower chassis, it fits into a centralized AV rack room or data closet serving multiple rooms or zones in a facility such as a broadcast studio or auditorium. Full-load runtime is 5.4 minutes, extending to 8.3 minutes at half load, which is typical for online UPS systems designed primarily to ride through short outages and bridge to generator power rather than provide extended standalone runtime; sites needing longer backup should plan for external battery expansion. The unit ships with a NETWORK-M3 gigabit network card for remote monitoring and management, hardwired input connection for permanent commercial installation, and operates at up to 96.5 percent efficiency at maximum load, reducing heat load in the equipment room. A 3-year limited warranty covers parts, electronics, and batteries on this 8kVA online double-conversion UPS.

Key Features

• 8kVA/8kW online double-conversion topology — Continuous inverter operation eliminates transfer time, protecting connected AV and IT loads through utility disturbances.
• 208/120V flexible voltage configuration — Input voltage is configurable across 200-240V, and output is available at 120/240V to match a range of connected equipment.
• 21 total output receptacles — Eighteen 5-20R and three L6-30R outlets provide flexibility for mixed AV, network, and higher-amperage equipment.
• 7U rack/tower form factor — This chassis suits centralized equipment rooms and data closets serving multiple downstream AV zones.
• Included NETWORK-M3 card — Gigabit network connectivity enables remote monitoring and management out of the box.
• True sine wave output — The unit delivers utility-quality power suitable for sensitive AV amplifiers and processing equipment.
• High operating efficiency — Up to 96.5 percent efficiency at maximum load reduces heat generated in the rack room.
• 3-year limited warranty — This warranty covers parts, electronics, and batteries.

Typical Applications

• Broadcast studio
• Auditorium
• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Is the 9PX8KTF5G2 compatible with the 9PXPPDM1G2 distribution module?

The 9PXPPDM1G2 is documented for 9PX G2 systems in the 3kVA to 6kVA range; for this 8kVA unit, contact Creation Networks to confirm the correct distribution accessory for your configuration.

How long will this UPS run connected equipment during an outage?

At full load it provides approximately 5.4 minutes of runtime, extending to 8.3 minutes at half load. This UPS is designed primarily to ride through short outages or bridge to backup generator power rather than provide extended standalone runtime.

Can this UPS be monitored remotely across a facility network?

Yes, it ships with a NETWORK-M3 gigabit network card installed, enabling remote monitoring and management through standard network infrastructure.

Does this unit require hardwired electrical installation?

Yes, the input connection is hardwired, which typically requires installation by a licensed electrician into a dedicated circuit.

What rack space does this UPS require?

It occupies 7U of rack space in a 7U rack/tower chassis, so plan rack elevation accordingly for equipment rooms or data closets.

What warranty coverage applies to this UPS?

Eaton provides a 3-year limited warranty covering parts, electronics, and batteries on the 9PX8KTF5G2.

Who can help size this UPS for a multi-room AV or broadcast facility?

Contact Creation Networks for load calculation and system design support to confirm this 8kVA UPS matches your facility's total connected AV and IT load.
