Da-Lite DL15685L 156" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (HD Progressive 0.9)
Da-Lite DL15685L 156" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (HD Progressive 0.9) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite DL15685L 156" Tensioned Advantage with SightLine Ultra...
Product Overview

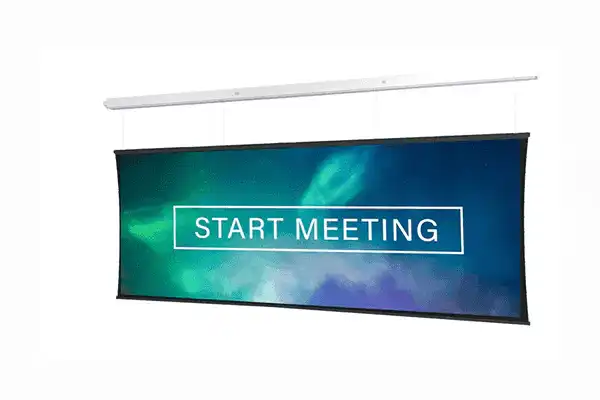

The Da-Lite Tensioned Advantage with SightLine 156" 21:9 Ultra-Wide Projection Screen (DL15685L) with HD Progressive 0.9 surface is a ceiling recessed 21:9 ultra-wide projection screen designed for commercial spaces with variable or mixed lighting conditions. This Da-Lite SightLine floating screen commercial AV product offers a versatile 0.9 gain surface compatible with most commercial laser and LED projectors, making it a widely applicable specification for corporate boardrooms, multi-purpose conference rooms, and training facilities. The 21:9 ultra-wide format serves hybrid video conferencing projection screen installations where in-room and remote participants share a single display surface. At 156" diagonal (approximately 71" H x 133" W), this Da-Lite Tensioned Advantage electric screen boardroom model delivers a large-format viewing experience for audience groups of varied sizes.
Product Description
The Da-Lite Tensioned Advantage with SightLine is a ceiling-recessed electric projection screen engineered for commercial AV installations requiring architectural integration and high performance. At 156" diagonal in 21:9 ultra-wide format (approximately 71" H x 133" W viewing surface), this screen suits large boardrooms and all-hands facilities with mixed lighting. The SightLine cable-drop system replaces traditional black drop fabric with 3-4 thin cables, creating a floating screen appearance and enabling variable vertical positioning within a 70"/180cm range. The two-stage installation installs the case during rough-in and the surface assembly during finishing. The 21:9 ultra-wide format supports hybrid video conferencing. The HD Progressive 0.9 surface with 0.9 gain delivers versatile performance across commercial projectors in mixed-lighting environments. TruGuide electric tensioning, Smooth Roll Technology, LVC control, and UL 2043 Plenum Rated case are standard. This ceiling recessed 21:9 ultra-wide projection screen carries a 5-year limited warranty.
Key Features

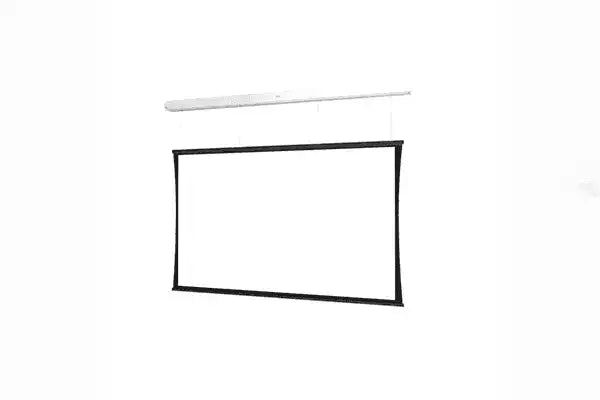

- SightLine Cable-Drop System — Replaces black drop fabric with 3–4 thin cables, creating a floating screen appearance and allowing variable vertical positioning up to 70" from ceiling to screen top edge.
- 21:9 Ultra-Wide Format — Designed for hybrid video conferencing solutions displaying in-room and remote participants simultaneously on a single surface.
- Two-Stage Installation — Case installs during rough-in construction; surface assembly during finishing stage, reducing coordination requirements between trades.
- TruGuide Electric Tensioning System — Maintains uniform surface tension across the full viewing area to eliminate wrinkles and surface distortion.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles, maintaining flat viewing surface over the product’s service life.
- Standard Low Voltage Control (LVC) — Integrates with third-party AV control systems via dry contact relay without requiring high-voltage switching at the control point.
- UL Plenum Rated Case — Approved for installation in plenum air spaces per UL 2043, meeting commercial building code requirements in most jurisdictions.

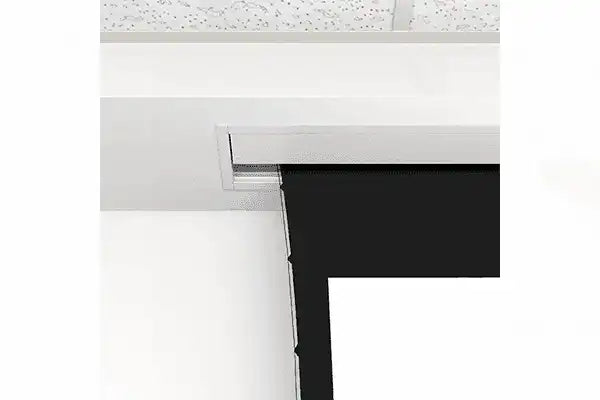

- Ceiling Trim-in-Place Design — White powder-coated aluminum case with closure door conceals the ceiling opening; no additional trim work required after screen installation.
- HD Progressive 0.9 Versatile Surface — 0.9 gain matte surface compatible with most commercial laser and LED projectors; performs in rooms with mixed natural and artificial light.
- Seamless Viewing Surface — No center seam; maintains visual continuity across the full 156" ultra-wide viewing area.
Typical Applications
- All-hands rooms and large conference facilities deploying hybrid video conferencing
- Boardrooms requiring a premium ceiling-recessed projection solution
- Multi-purpose rooms configured for video collaboration and content display
- Corporate training rooms with ceiling-recessed AV infrastructure
- Government conference spaces with architectural ceiling requirements
Technical Specifications
| Specification | Value |
|---|---|
| Model | DL15685L |
| Screen Type | Electric / Motorized (Ceiling Recessed) |
| Format | 21:9 Ultra-Wide |
| Diagonal Size | 156" |
| Screen Surface | HD Progressive 0.9 |
| Gain | 0.9 |
| Drop System | SightLine Cable-Drop (variable 0–70" / 0–180cm) |
| Motor | Standard 120V |
| Control | Low Voltage Control (LVC), 3-button Decora wall switch included |
| Case Material | White powder-coated aluminum |
| UL Plenum Rating | UL 2043 Plenum Rated |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: What is the SightLine feature and how does it differ from standard black drop?
A: SightLine replaces the traditional black fabric drop with 3–4 thin cables, creating a floating screen appearance, 70" variable positioning range, and open space above the screen for cameras or speakers.
Q: Is this screen compatible with standard AV control systems?
A: Yes. LVC integrates with Crestron, AMX, Extron, QSC via dry contact relay. Contact creationnetworks.net for integration assistance.
Q: What projectors are compatible with the HD Progressive 0.9 surface?
A: Compatible with most commercial laser and LED projectors. The 0.9 gain works across a wide range of brightness levels in rooms with mixed natural and artificial lighting.
Q: Can this screen be installed in a plenum air handling space?
A: Yes. UL 2043 Plenum rated for HVAC plenum return air spaces per IBC and NFPA 90A.
Q: What is the two-stage installation process?
A: Case installs during rough-in; surface assembly installs during finish phase after painting and ceiling tile work, eliminating coordination issues between trades.
Q: What warranty does Da-Lite provide on this product?
A: 5-year limited warranty. Contact Creation Networks at creationnetworks.net for support.
