Da-Lite 14079EF - Tensioned Advantage, HDTV (16:9), 108" x 192" (220" Diagonal), HD Progressive 0.6

Product Overview

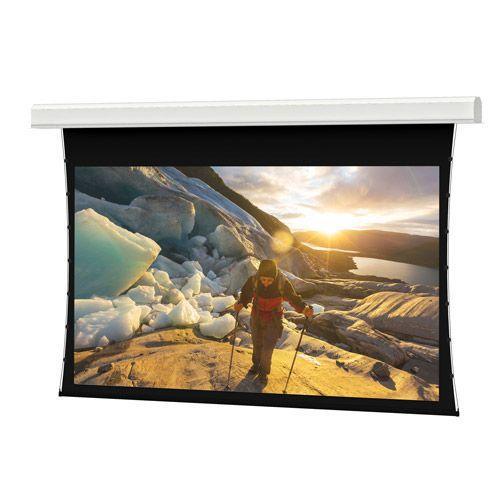

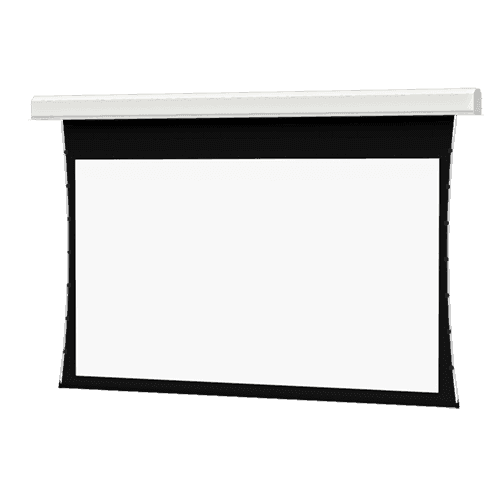

The Da-Lite 14079EF Tensioned Advantage Electrol is a ceiling-recessed electric projection screen engineered for large-format commercial AV installations requiring a 220" diagonal image. Designed for high-lumen 4K/UHD projectors, the HD Progressive 0.6 surface actively rejects ambient light, making it the correct choice for conference rooms, boardrooms, and multi-purpose spaces that cannot achieve full blackout. The tensioned screen system maintains a flat, wrinkle-free image surface for precise edge-to-edge image quality. As a ceiling-recessed model, the housing integrates into the ceiling plane for a clean, finished appearance when the screen is retracted.

Product Description

The Da-Lite 14079EF is built for permanent ceiling-recessed installation in large commercial environments. The 108" x 192" viewing area delivers a 220" diagonal image at a true 16:9 HDTV aspect ratio, covering auditoriums, large all-hands rooms, and high-capacity training facilities. The HD Progressive 0.6 surface carries a 0.6 gain rating, which concentrates reflected light toward viewers while rejecting off-axis ambient light from windows or overhead fixtures. This surface is specifically selected for high-output projectors operating in rooms where lighting control is limited. The TruGuide tensioning system holds the screen material under consistent lateral tension, eliminating waves and maintaining a consistently flat projection surface over the life of the installation. The steel case mounts flush with the ceiling and opens via a closure door that conceals the screen when retracted. Low-voltage motor control is standard, allowing integration with control systems from AMX, Crestron, Extron, and similar platforms via dry contact or RS-232. The unit ships with a standard IR and RF remote and is compatible with Da-Lite's low-voltage control accessories for multi-screen deployments.

Key Features

• HD Progressive 0.6 Surface — Gain 0.6 surface rejects ambient light for improved contrast in high-lumen commercial installations.
• TruGuide Tensioning System — Lateral tensioners maintain a flat, wrinkle-free image plane across the full 108" x 192" surface.

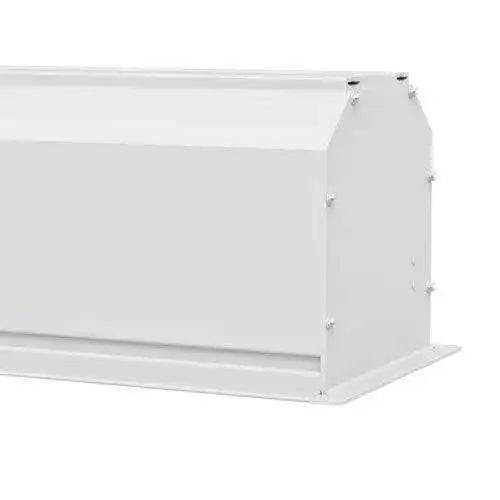

• Ceiling-Recessed Steel Case — Housing mounts flush with the ceiling; closure door conceals the screen when not in use.
• 220" Diagonal / 16:9 HDTV Format — Correct aspect ratio for all standard HD and UHD projector outputs without geometric cropping.
• Low-Voltage Motor Control — Compatible with AMX, Crestron, Extron, and other control systems via dry contact trigger.
• IR and RF Remote Included — Provides direct control without a separate control system for straightforward installations.
• Commercial-Grade Construction — Steel housing and motor assembly rated for continuous-use commercial AV environments.

Typical Applications

• Large-format auditoriums and all-hands presentation rooms
• Conference rooms and boardrooms with ceiling integration requirements
• Training rooms requiring large-format HDTV projection
• Multi-purpose rooms with permanent AV infrastructure
• Government and corporate meeting spaces with ambient light management needs

Technical Specifications

Frequently Asked Questions

Q: What projector output level is recommended for the HD Progressive 0.6 surface?

A: The HD Progressive 0.6 surface is designed for high-lumen projectors typically rated 6,000 lumens or above. Lower-output projectors may not achieve adequate brightness at 220" diagonal.

Q: Is this screen compatible with control systems like Crestron or AMX?

A: Yes. The low-voltage motor accepts a dry contact trigger signal, which is the standard interface for Crestron, AMX, Extron, and other commercial AV control systems. A 12V trigger input is also available.

Q: Does the ceiling-recessed case require a specific ceiling depth?

A: Da-Lite recommends confirming rough-in dimensions before installation. The 14079EF requires sufficient plenum depth to accommodate the rolled screen and motor assembly. Consult Da-Lite installation documentation for exact rough-in specifications.

Q: Can the screen drop height be adjusted after installation?

A: Yes. Drop length can be set during installation, and most models allow limited adjustment via the motor limit switches post-installation. Contact a certified Da-Lite installer for adjustments.

Q: What warranty does Da-Lite provide on this screen?

A: Da-Lite projection screens are covered by a limited warranty. Contact Creation Networks or Da-Lite directly for current warranty terms applicable to the 14079EF.

Q: Is the 14079EF available with other screen surfaces?

A: The Tensioned Advantage Electrol platform supports multiple surface options. Contact Creation Networks to inquire about surface alternatives for this housing size.
