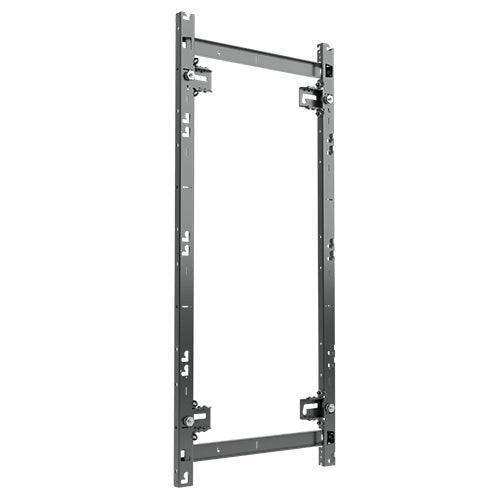

Chief Led Mount 1X4 Lg Las & Leyard Tvf - TIL1X4PT

Product Overview

The Chief TIL1X4PT is a TiLED dvLED video wall mounting system designed to mount four vertically stacked LED displays from the LG LAS Fine-pitch and Leyard TVF Series. It is built for direct view LED video walls in commercial AV environments such as broadcast studios, auditoriums, and lobby signage. The modular design attaches to the top, bottom, and sides of other mounts to support a wide range of configurations. Variable X, Y, and Z-axis adjustments deliver precise positioning and alignment for a flat, seamless wall.

Product Description

The TiLED LED Video Wall Mounting System mounts four vertically stacked LED displays from the LG LAS Fine-pitch and Leyard TVF Series, so you stack displays to create one continuous video wall. Chief's modular design attaches to the top, bottom, and sides of other mounts to support a wide range of design configurations. Integrated z-axis plumb adjustment helps compensate for wall imperfections, while lateral and vertical shift enable both mount and LED adjustments. Keyhole slots allow fast, easy mount installation, and offset mounting slots ease installation and protect LED sides from damaging friction. The depth range with a display is between 3.59 and 4.34 inches (91 to 110 mm) for a low-profile finish. As a standard, off-the-shelf solution, the system is stockable and ready to ship with no custom lead times or project registration required. It is compatible with LG LAS012DB2-F through LAS025DB7-F fine-pitch models and Leyard TVF0.9, TVF1.2, TVF1.5, TVF1.8, and TVF2.5 displays. Browse the full Chief collection for compatible dvLED mounts and accessories.

Key Features

• 1x4 stacked dvLED — Mounts four vertically stacked LED displays into one continuous video wall.
• Modular design — Attaches to the top, bottom, and sides of other mounts for flexible configurations.
• Z-axis plumb adjustment — Integrated adjustment compensates for wall imperfections.
• Lateral and vertical shift — Enable both mount and LED adjustments for precise alignment.
• Keyhole and offset slots — Speed installation and protect LED sides from damaging friction.
• Low-profile depth — Depth with display is 3.59 to 4.34 inches (91 to 110 mm).
• Stock-ready — A standard, off-the-shelf solution with no custom lead times or project registration.

Typical Applications

• Direct view LED video walls in broadcast studios
• Auditorium and commercial meeting space dvLED displays
• Lobby and government space digital signage
• House of worship and all-hands room video walls

Frequently Asked Questions

Q: Which displays does the TIL1X4PT support?
It supports LG LAS Fine-pitch models (LAS012DB2-F through LAS025DB7-F) and Leyard TVF Series displays (TVF0.9 through TVF2.5). Confirm your exact model before ordering.

Q: How many displays does it hold?
It mounts four vertically stacked LED displays in a 1x4 configuration to form one continuous video wall.

Q: How is the video wall aligned?
Integrated z-axis plumb adjustment plus lateral and vertical shift allow precise mount and LED alignment for a flat result.

Q: How deep does it sit with a display?
The depth range with a display is 3.59 to 4.34 inches (91 to 110 mm) for a low-profile finish.

Q: What is the lead time?
It is a standard, off-the-shelf solution that is stockable and ships with no custom lead times or project registration required.

Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
