Chief LCD TABLE STAND - LCD2TS
Product Overview

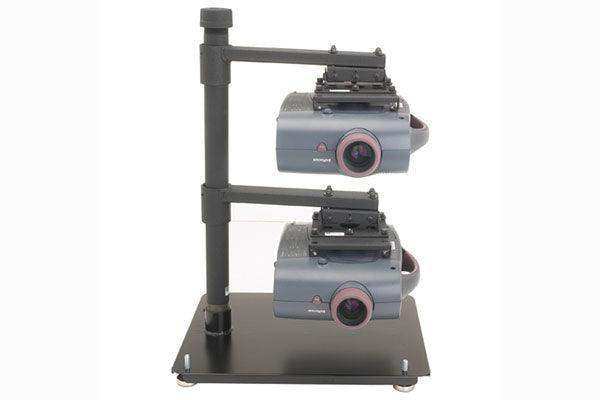

The Chief LCD2TS is a commercial-grade table stand engineered for stacking and operating two projectors in a single footprint. Designed for fixed installations where dual-projector output is required—such as large-format presentation environments, simulation setups, or edge-blending configurations—this stand provides the structural platform and independent adjustment axes needed to align stacked projectors with precision. The LCD2TS is the table-mounted variant; AV integrators who require a ceiling-mounted equivalent should specify the LCD2C model. Projector mounts are not included and must be ordered separately to complete the installation.
Product Description
The Chief LCD2TS addresses the stable, adjustable co-location of two projectors on a single surface-mounted platform. A key operational feature is the quick projector connect/disconnect system, which allows either projector to be removed and reinstalled without disturbing overall mount alignment—valuable during lamp replacement or servicing. The arm mechanism provides 12 degrees of rotation, combined with independent roll, pitch, and yaw adjustments for each projector position. Adjustable vertical projector spacing allows the physical gap between the two units to be set per the thermal, optical, or aesthetic requirements of the installation.
Chief offers this platform in two configurations: the LCD2TS for table or surface mounting, and the LCD2C for ceiling mounting. Both share the same adjustment architecture. Additional Chief projector mounting accessories are available at Creation Networks.
Key Features
- Dual Projector Stacking Platform — Provides a single, unified structural base for two projectors, eliminating alignment variability from using two independent stands.
- Quick Projector Connect/Disconnect — Enables either projector to be removed and remounted rapidly without losing the mount’s angular settings, reducing service downtime.
- 12° Arm Rotation — The arm mechanism rotates 12 degrees, providing meaningful angular adjustment for non-standard surface orientations.
- Independent Roll, Pitch, and Yaw Adjustments — Each projector position offers all three rotational axes independently, essential for accurate stacking registration or edge-blend geometry.
- Adjustable Vertical Projector Spacing — The vertical distance between stacked projectors can be set to meet thermal clearance, optical alignment, or installation aesthetic requirements.
- Table Stand Configuration — Designed for surface or table mounting; the ceiling-mount equivalent is the LCD2C.
- Commercial-Grade Construction — Built to Chief’s commercial AV standards for structural rigidity and long-term stability in fixed installations.
Typical Applications
- Large conference rooms requiring dual-projector output for wide-format or redundant presentation
- Boardrooms with stacked projector configurations for high-brightness or edge-blended displays
- Training rooms using dual projectors for simultaneous multi-screen content delivery
- Multi-purpose rooms with portable or semi-permanent dual-projector table setups
- Commercial meeting spaces where surface-mounted projection is preferred over ceiling installation
- Houses of worship or auditoriums using stacked projectors for brightness layering
Technical Specifications
| Specification | Detail |
|---|---|
| SKU | LCD2TS |
| Mount Type | Table Stand |
| Projector Capacity | 2 (stacked) |
| Arm Rotation | 12° |
| Adjustment Axes | Independent roll, pitch, and yaw per projector position |
| Vertical Projector Spacing | Adjustable |
| Projector Mounts Included | No (ordered separately) |
| Ceiling-Mount Equivalent | LCD2C |
| Brand | Chief |
Frequently Asked Questions
Q: Are projector mounts included with the LCD2TS?
A: No. The LCD2TS is the structural table stand platform only. Compatible projector mounts must be ordered separately. Contact Creation Networks for guidance on selecting the correct Chief projector mounts.
Q: What is the difference between the LCD2TS and the LCD2C?
A: The LCD2TS is for table or surface mounting; the LCD2C is the ceiling-mount variant. Both share the same dual-projector stacking architecture and adjustment system.
Q: Can I adjust each projector independently?
A: Yes. Each projector position offers independent roll, pitch, and yaw adjustments, allowing each projector to be aligned separately for stacking registration or edge-blend geometry.
Q: How does the quick connect/disconnect feature work?
A: It allows either projector to be detached for servicing and reattached without disturbing the stored alignment settings of the mount itself.
Q: What warranty applies to the LCD2TS?
A: The LCD2TS is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks directly for current warranty terms.
