Chief CEILING STORAGE BOX 1X2 W/COLUMN W/POWER - CMS491CP2

Product Overview

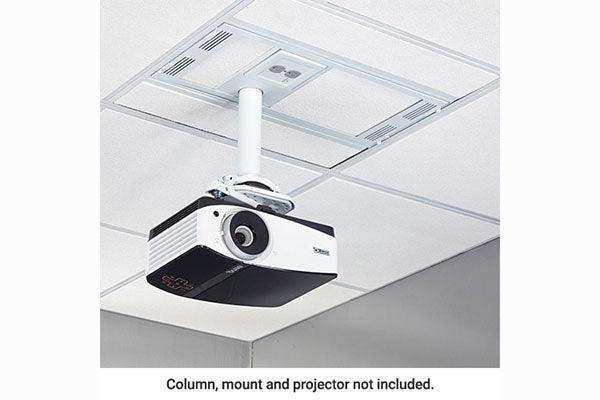

The Chief CMS491CP2 ceiling storage box conceals AV equipment above a standard 2' x 2' ceiling tile while supporting a projector column drop within the same tile grid. It is built for conference rooms, classrooms, and commercial meeting spaces that need a clean, professional ceiling without exposed gear. The integrated power housing delivers surge protection and multi-stage filtration to keep connected equipment running reliably. Column is sold separately.

Product Description

The CMS491CP2 is a plenum-rated in-ceiling AV storage enclosure that hides switchers, players, and other components above the ceiling line while accepting a 1.5" NPT column for a projector mounted in the same tile. Optimal pipe flexibility within the tile reduces reliance on digital image correction, helping preserve image quality in projection rooms. A drop carriage door provides full access to equipment for faster service. The detachable power housing can be pre-wired by electricians on site and assembled to the storage box later, simplifying the installation sequence. Inside the box or facing the room, you can configure up to two single-gang or one dual-gang outlet, supported by four nested knockouts for 1-1/4", 1", and 1/2" conduit. Built-in ventilation and an AV tray support a range of components, with a second shelf available separately (CMSUNV1). The included surge and filter module protects against high-energy transients, lightning strikes, and electronic noise that degrade gear over time. Lightweight construction allows one-person installation using the included speed-connect hardware. The enclosure is UL evaluated for air-handling spaces and is TAA compliant. Compare ceiling mount options across the Chief collection.

Key Features

• In-ceiling concealment — Hides AV equipment above a standard 2' x 2' ceiling tile for a clean, professional look.
• Projector column support — Accepts a 1.5" NPT column drop to mount a projector within the same tile grid.
• Surge and filtration module — Non-sacrificial multi-stage protection with an LED power indicator safeguards connected gear.
• Flexible outlet configuration — Supports up to two single-gang or one dual-gang outlet, with four nested conduit knockouts.
• Serviceable drop carriage door — Improves accessibility and serviceability with full access to mounted equipment.
• Detachable power housing — Allows electricians to pre-install wiring on site and assemble to the box later.
• 100 lb weight capacity — Supports 50 lb at the projector ceiling plate and 25 lb per shelf location.
• Plenum-rated and TAA compliant — UL evaluated for use in air-handling spaces under NEC Article 300.22(C).

Typical Applications

• Conference room
• Training room
• Commercial meeting space
• Multi-purpose room
• Auditorium

Technical Specifications

Frequently Asked Questions

Does the CMS491CP2 include the projector column?
No. The column must be purchased separately. The box accepts a 1.5" NPT column drop for mounting a projector within the same ceiling tile.

Is this enclosure safe to install in a plenum air-handling space?
Yes. It is UL evaluated for use in air-handling spaces as defined by NEC Article 300.22, sub-clause (C).

How much equipment can it hold?
Overall capacity is 100 lb (45 kg), with 50 lb allotted to the projector ceiling plate and 25 lb per shelf location. It ships with one shelf; a second shelf (CMSUNV1) is sold separately.

Can the power wiring be installed ahead of the box?
Yes. The detachable power housing can be pre-installed by electricians on site and assembled to the storage box at a later time.

Is it compatible with other Chief ceiling mount accessories?
Yes. It is part of Chief's ceiling storage and projector mounting system. Browse compatible options in the Chief collection.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
