Biamp Vocia ELD-1 End of Line Device - 909.0263.900
Product Overview
The Biamp Vocia ELD-1 is a networked end-of-line safety device for use with a Vocia amplifier such as the VA-8600 or VA-8600c, and it is an integral part of standard-compliant voice evacuation and mass notification systems. The ELD-1 tests and reports speaker line integrity between itself and the Vocia amplifier. It can be surface mounted and uses IEEE-compliant Power over Ethernet (PoE).
Product Description
The ELD-1 looks for an inaudible signal from the Vocia amplifier module and reports shorts or opens in the speaker line to the network. It is compatible with both constant-voltage and low-impedance systems and does not rely on the speaker line as a power source. The device uses a removable terminal block connector, includes a status LED, and is surface-mountable. It is CE marked and RoHS compliant.
Key Features
- Line monitoring — The ELD-1 tests and reports speaker line integrity between itself and a Vocia amplifier.
- Fault reporting — It reports shorts or opens in the speaker line to the network.
- Inaudible test signal — The device looks for an inaudible signal from the Vocia amplifier module.
- PoE powered — IEEE-compliant Power over Ethernet powers the device without relying on the speaker line.
- Broad compatibility — It works with both constant-voltage and low-impedance systems.
- Five-year warranty — The ELD-1 is covered by Biamp Systems' five-year warranty.
Typical Applications
The ELD-1 suits commercial meeting spaces, multi-purpose rooms, and government spaces using Vocia voice-evacuation and mass-notification systems.
Technical Specifications
| Function | Networked end-of-line speaker-line monitoring device |
| Amplifier compatibility | Vocia amplifiers (e.g. VA-8600 / VA-8600c) |
| Monitoring method | Detects inaudible signal; reports shorts and opens |
| System types | Constant-voltage and low-impedance |
| Power | Power over Ethernet (PoE) |

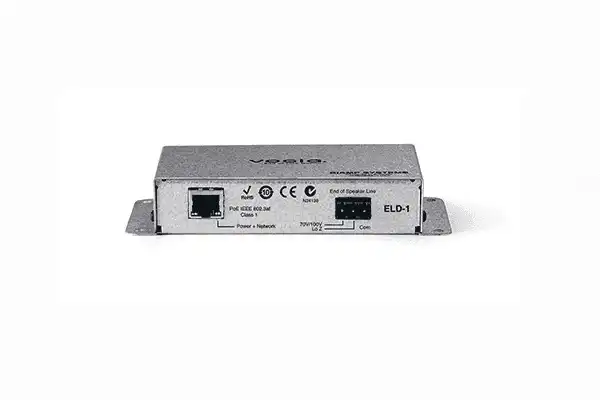

| Connector | Removable terminal block |
| Indicator | Status LED |
| Mounting | Surface mountable |
| Compliance | CE marked, RoHS compliant |
| Warranty | Biamp Systems five-year warranty |
Frequently Asked Questions
What does the ELD-1 do?
It tests and reports speaker line integrity between itself and a Vocia amplifier, reporting shorts or opens to the network.
How is it powered?
It uses IEEE-compliant Power over Ethernet and does not rely on the speaker line as a power source.
Is it compatible with constant-voltage systems?
Yes. It is compatible with both constant-voltage and low-impedance systems.
