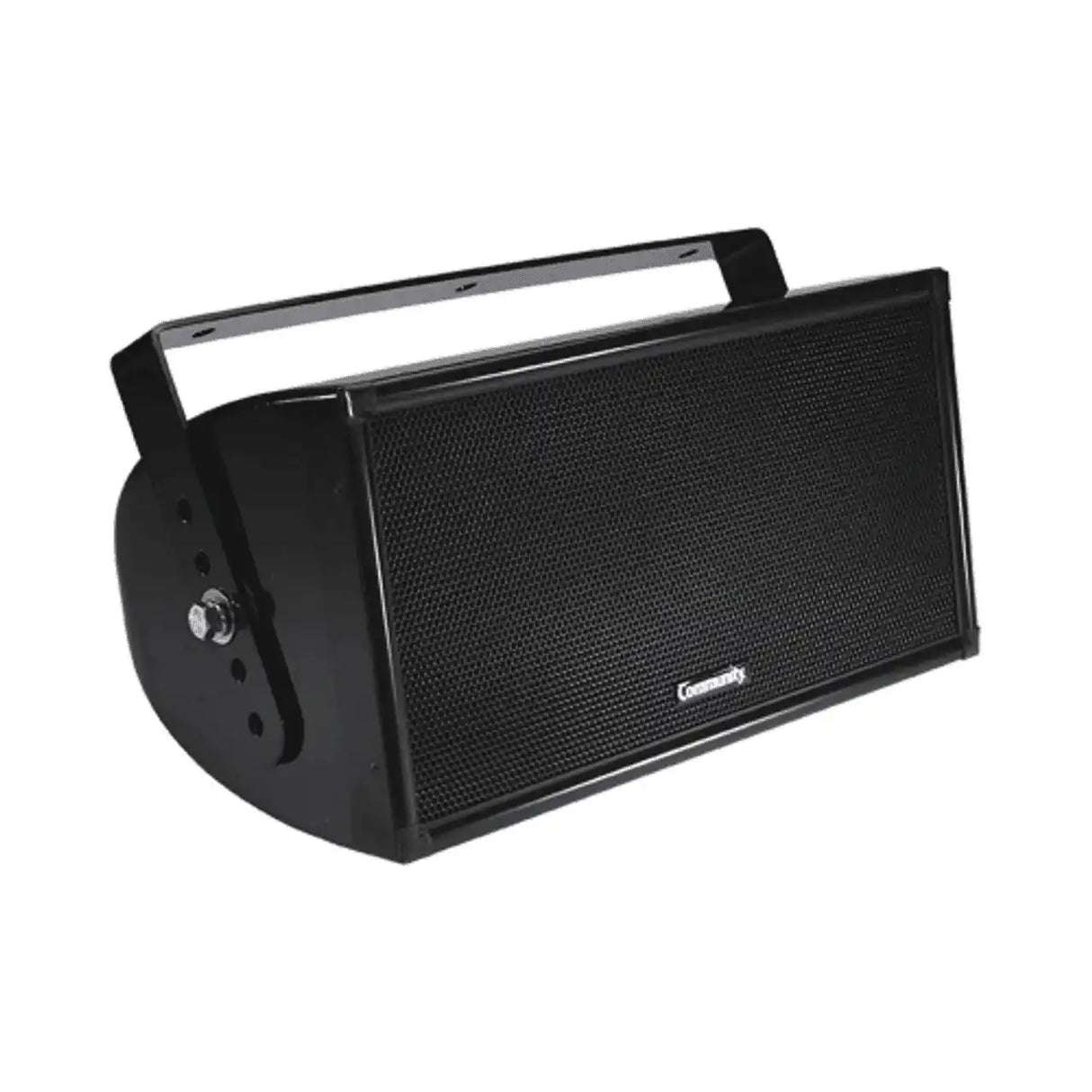

Biamp Community W2-2W8 Two-Way 8-Inch "Wide" Compact System (Black) - 911.1346.900
Biamp Community W2-2W8 Two-Way 8-Inch "Wide" Compact System (Black) - 911.1346.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community W2-2W8 Two-Way 8-Inch "Wide" Compact Syst...
Product Overview
The Biamp Community W2-2W8 is a two-way, 8-inch wide-coverage compact loudspeaker delivering a true 120-degree horizontal pattern. As a weather-resistant installation loudspeaker for sound reinforcement, down-fill, under-balcony, and stage-edge fill applications, it serves houses of worship, auditoriums, and large multi-purpose venues that require uniform wide-angle coverage.
Product Description
Exhibiting a true 120-degree wide coverage pattern, the W2-2W8 is an innovative two-way loudspeaker that satisfies a variety of sound reinforcement, down-fill, under-balcony, stage-edge fill, and monitoring applications. The LF drivers and centrally placed 120-degree HF pattern-control horn are engineered to provide uniform pattern over the widest possible bandwidth. The unique molded Super-V configuration of the LF drivers provides uniform mid-range coverage and prevents collapse of the horizontal pattern throughout its range, especially in the critical voice range. Engineered for permanent installations, the enclosure and faceplate are constructed of multi-layer glass composite for high structural strength, a three-layer Weather-Stop grille protects internal components, and all exposed hardware is stainless steel or powder-coated aluminum. This model is finished in black and a stainless-steel mounting yoke is included.
Key Features
- True 120-degree coverage — The Super-V LF configuration and pattern-control horn maintain wide, uniform horizontal coverage.
- All-weather enclosure — The multi-layer glass composite enclosure provides extreme structural strength for permanent installation.
- Weather-Stop grille — A three-layer Weather-Stop grille provides weather resistance to the internal components.
- Stainless-steel hardware — All exposed hardware is stainless steel or powder-coated aluminum extrusion.
- Ferrofluid cooling — Ferrofluid-cooled transducers and a high-power passive crossover support continuous operation.
- Mounting yoke included — A stainless-steel mounting yoke is supplied with the loudspeaker.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
Technical Specifications
| Format | Two-way, full-range |
| Operating Range | 65 Hz - 18 kHz |
| Frequency Response | 80 Hz - 15 kHz (+/-3 dB) |
| Dispersion (-6 dB) | 120 H x 60 V |
| Maximum SPL @ 1m | 121 dB continuous / 128 dB peak |
| Crossover Frequency | 1 kHz |
| Sensitivity (1W/1m) | 97 dB (100 Hz - 13 kHz); 98 dB (speech range) |
| Max Power Handling | 250W RMS / 600W program |
| Impedance | Nominal 8 ohm / min. 4.6 ohm at 190 Hz |
| Low Frequency | 2x 8" (203 mm) carbon fiber |
| High Frequency | 1" (25.4 mm) |
| Enclosure | Hand-laminated fiberglass |
| Rigging | Two 1/2-13 rigging points; yoke bracket included |
| Grille | Three-layer Weather-Stop |
| Dimensions | 10.13" H x 20" W x 11.5" D (257 x 508 x 292 mm) |
| Net Weight | 40.4 lbs (18.3 kg) |
| Finish | Black |
Frequently Asked Questions
What makes the W2-2W8 'wide'?
Its Super-V LF driver configuration and centrally placed horn deliver a true 120-degree horizontal coverage pattern.
Is it suitable for outdoor or harsh environments?
Yes. The multi-layer glass composite enclosure, three-layer Weather-Stop grille, and stainless-steel hardware are engineered for weather resistance in permanent installations.
What are typical applications?
It is used for sound reinforcement, down-fill, under-balcony fill, stage-edge fill, and monitoring.
Is a mounting bracket included?
Yes. A stainless-steel mounting yoke is included.
