Biamp Community IS8-112 High Power 12-Inch Subwoofer (White) - 911.1145.900

Biamp SKU: 911.1145.900
No reviews

Price:
Sale price$2,420.00

Description

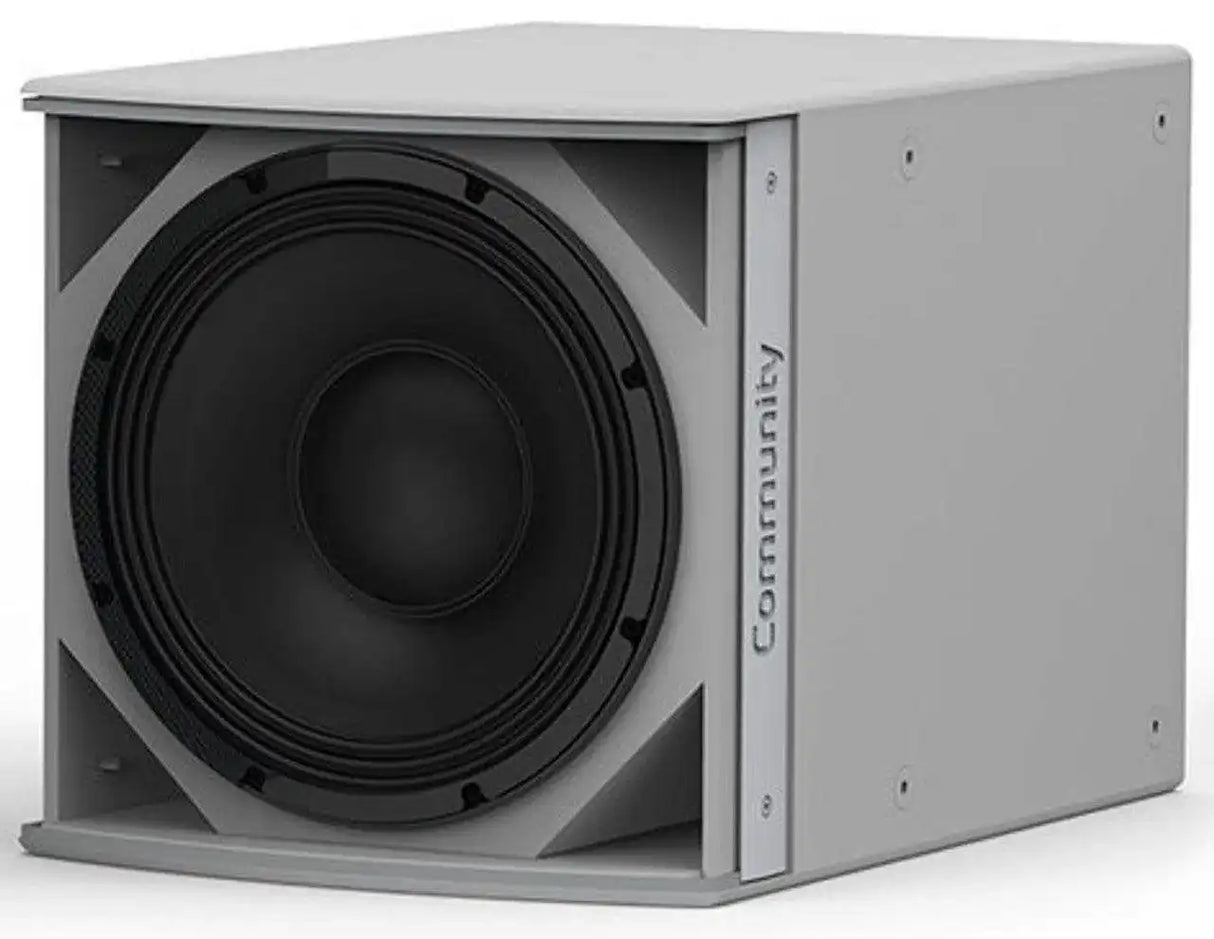

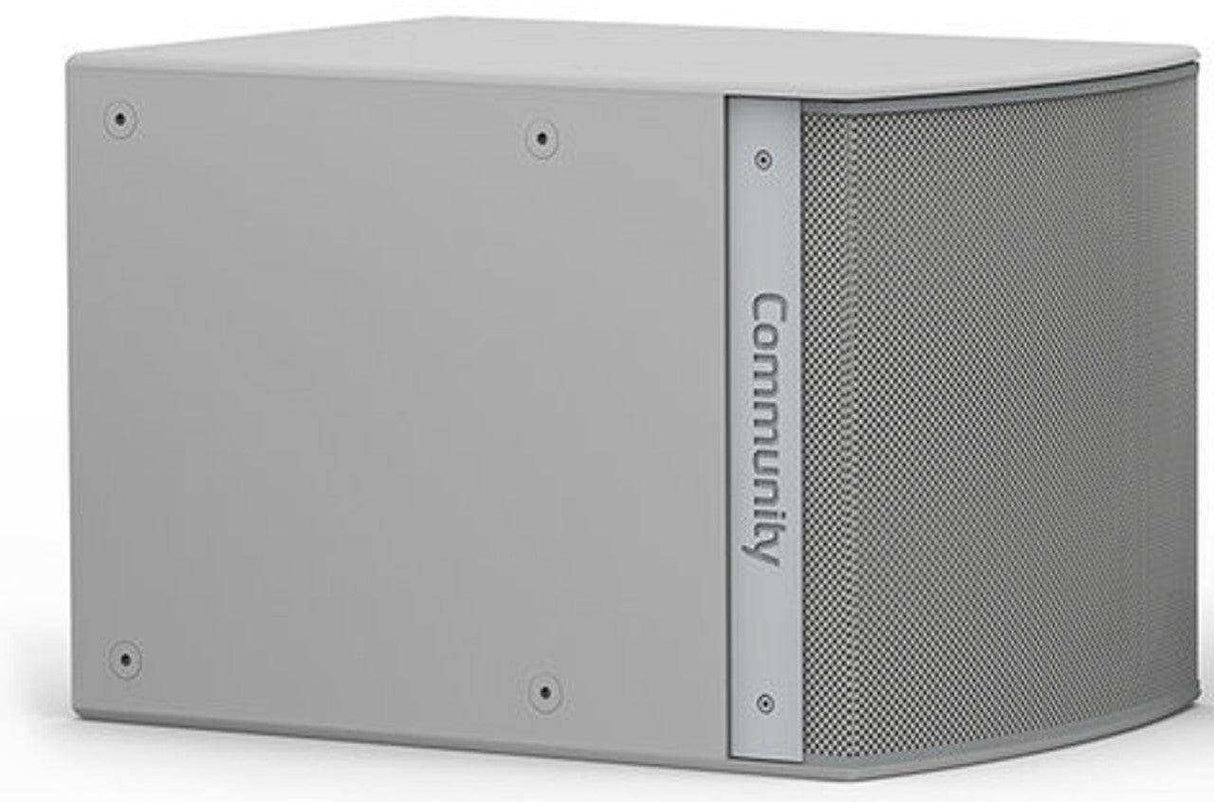

The Community IS8-112 is an I Series Subwoofer 800 12" 1000W (8 Ohms) passive installation loudspeaker. This subwoofer is well-suited for applications such as houses of worship, auditoriums, restaurants, meeting rooms, corporate A/V systems, arenas, stadiums, or any application where extended low-frequency reinforcement is required.

I Series Subwoofer 800 loudspeakers provide exemplary acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

The compact, low-profile single driver I Series subwoofers are ideal for distributed or concealed sub-bass and are the perfect choice for ground stack applications. Additionally, each cabinet was carefully designed to provide matching face widths and suspension point locations for seamless integration into flown arrays with I Series full-range models when additional LF extension is needed but a compact appearance is required. The broad range of optional low profile fly rails, fly frames and modular array brackets reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

The IS8-112 is a compact, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cones, reducing distortion and extending system longevity. FEA optimized linear suspensions and high flux neodymium motors with long linear excursion capabilities provide exceptionally deep bass for the enclosure’s diminutive size.

  • High-flux, linear neodymium motor with demodulation ring for very low distortion
  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 1000W continuous power handling (4000W peak)
  • Long, linear excursion ensures deep, clean bass extension at maximum output
  • Operating Mode:  Single Amp
  • Operating Environment:  Indoor
  • Operating Range:  38 Hz - 148 Hz
  • Transducer:  1 x 12" (305 mm) double-treated cone with 4" (102 mm) voice coil, demodulation ring, neodymium construction
  • Continuous Power Handling @ Nominal Impedance, Single Amp, 89V:  1000W @ 8 Ohms (4000W peak)
  • Nominal Sensitivity:
    • Half Space:  95dB @ 1W/2.83V
    • Whole Space:  89dB @ 1W/2.83V
  • Nominal Maximum SPL:
    • Half Space:  125dB continuous; 131dB peak
    • Whole Space:  119dB continuous; 125dB peak
  • Equalized Sensitivity:
    • Half Space:  94dB @ 1W/2.83V
    • Whole Space:  88dB @ 1W/2.83V
  • Equalized Maximum SPL:
    • Half Space:  124dB continuous; 130dB peak
    • Whole Space:  118dB continuous; 124dB peak
  • Recommended Amplifier:  1000W - 2000W @ 8 Ohms (89V - 126V)
  • Physical:
    • Input Connection:  (2) Screw terminal blocks (4-position)
    • Mounting Points:  (24) M10 threaded rigging points
    • Environmental:  IPX4 per IEC 60529, designed in accordance with MIL-STD-810G
    • Dimensions (H x W x D): 14.30" x 14.50" x 21.00" (363 x 368 x 533 mm)
