ASHLY NE24.24M 8X8 Protea DSP Audio Matrix Processor 8-In x 8-Out

Product Overview

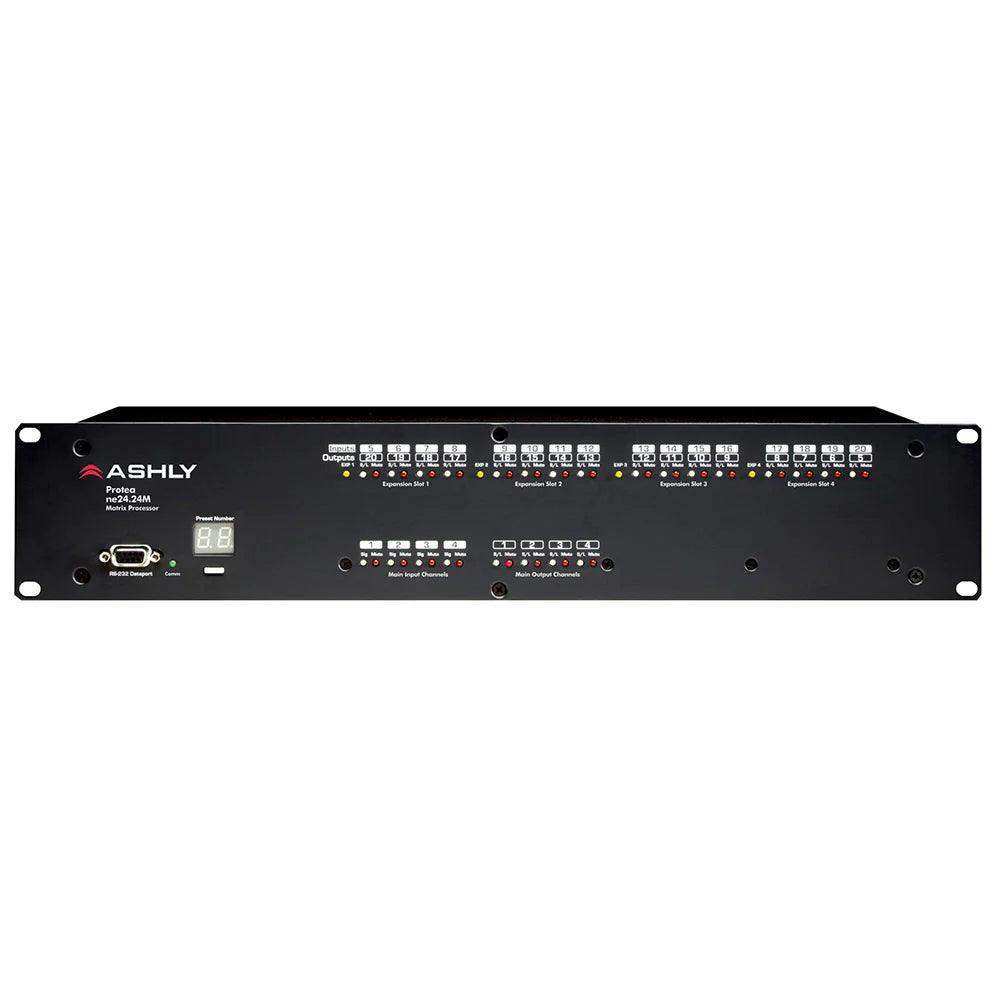

The Ashly NE24.24M 8X8 is a Protea DSP audio matrix processor configured with 8 inputs and 8 outputs, built on the modular NE24.24M platform that expands from a 4x4 base to up to 24x24 channels using field-installable expansion cards with individual DSP processors. This audio matrix processor is a dedicated signal processor without amplification, designed for commercial AV installations in boardrooms, conference rooms, houses of worship, and multi-purpose facilities that require complete matrix routing and DSP processing in a standalone unit. The Protea DSP engine delivers equalization, dynamics, crossover filtering, delay up to 1365ms, automatic feedback suppression, and matrix mixing, with 10/100 Ethernet and RS-232 control, 31 preset locations, and compatibility with Crestron, AMX, and other third-party room control systems.

Product Description

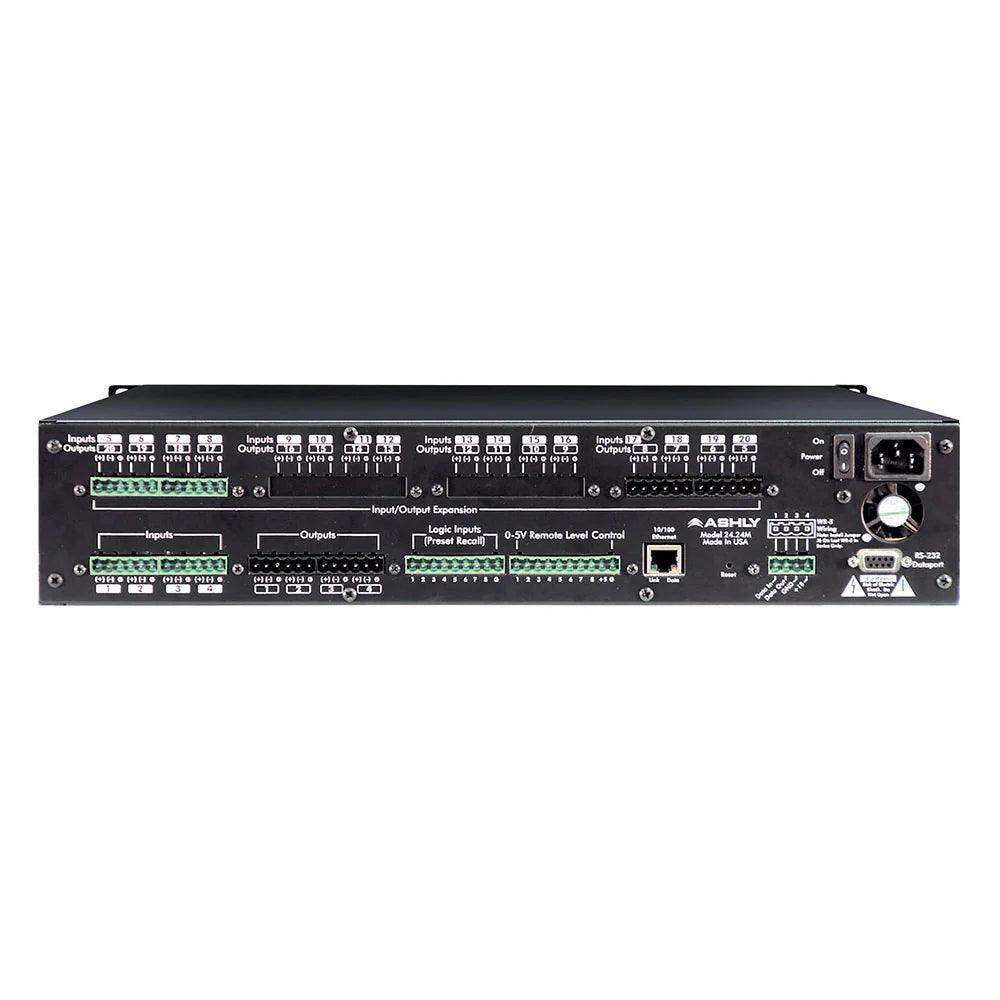

The NE24.24M 8X8 provides 8 balanced analog inputs and 8 balanced analog outputs with the full Protea DSP library available on each channel. Each expansion card in the chassis carries its own individual DSP processor, providing dedicated processing resources for each group of 4 channels added beyond the 4x4 base configuration. Matrixing allows any input to be routed to any output with individual level control at each routing point, enabling flexible multi-zone audio distribution. The Protea DSP library includes variable-Q graphic and parametric EQ, high-order crossover filters (Butterworth, Bessel, Linkwitz-Riley, and Notched-Linkwitz-Riley), advanced automatic feedback suppression, autolevelers, compressors, matrix duckers, limiters, frequency-keyed noise gates, and delay up to 1365ms per channel. Input and output levels are viewable in dBu for accurate calibration. Euroblock connectors on all audio I/O, preset recall inputs, and DC remote level control support wall remote and room automation integration. An optional GPO logic card provides general-purpose outputs for triggering projection screens, curtains, and lighting. Multi-level software security with password protection prevents unauthorized changes to system configuration. The free Ashly Remote iOS app enables tablet-based control and monitoring in the field.

Key Features

• 8-Input x 8-Output Matrix — Full any-to-any routing with individual level control at every routing point.
• Modular Expandability — Field-installable expansion cards add 4 channels per card up to 24x24 total.
• Individual DSP Per Card — Dedicated DSP processor per expansion card for per-channel processing power.
• Protea DSP Library — Variable-Q EQ, high-order crossovers, auto feedback suppression, dynamics, delay up to 1365ms, and generators.
• 24-Bit A/D and D/A — High-resolution audio conversion throughout the signal chain.
• Ethernet and RS-232 Control — 10/100 Ethernet for Protea NE software; RS-232 for third-party control systems.
• 31 Preset Locations — Store and recall complete system configurations for different room setups.
• iOS Remote App — Free Ashly Remote iOS app for tablet-based control.
• Third-Party Control Compatible — Compatible with Crestron, AMX, and other room control platforms.
• Optional GPO Logic Card — Trigger projection screens, curtains, and lighting systems.

Typical Applications

• Boardrooms and conference rooms requiring matrix audio distribution
• Houses of worship with multi-zone audio needs
• Government and institutional facilities with complex audio routing
• Multi-purpose rooms and auditoriums with reconfigurable systems
• Training facilities and all-hands rooms
• Commercial meeting spaces with third-party control integration

Technical Specifications

Frequently Asked Questions

Is the NE24.24M 8X8 an amplifier?

No. The NE24.24M 8X8 is a DSP audio matrix processor. It handles signal routing and processing only. External power amplifiers are required to drive loudspeakers.

How does the NE24.24M 8X8 differ from the NE8800?

Both are 8x8 DSP processors, but they use different architectures. The NE24.24M uses a modular expansion card platform that can grow up to 24x24, while the NE8800 is a fixed 8x8 unit with multiple SHARC processors and additional features like Word Clock I/O and FIR filter capability. The NE8800 is better suited for systems requiring the highest processing density, while the NE24.24M offers field expandability.

Can the NE24.24M 8X8 be expanded?

Yes. Additional expansion cards can be added to reach up to 24x24 total channels. Each card is field-installable without reprogramming.

What room control systems work with the NE24.24M 8X8?

The unit is compatible with Crestron, AMX, and other third-party control systems via RS-232 and Ethernet interfaces.

How are presets recalled on the NE24.24M 8X8?

Presets can be recalled via Euroblock contact closure inputs, DC remote control, or Ethernet commands from a connected room control system. The unit stores 31 preset locations.
