ASHLY NE24.24M 4X4 Protea DSP Audio Matrix Processor 4-In x 4-Out

Product Overview

The Ashly NE24.24M 4X4 is the base configuration of Ashly's modular Protea DSP audio matrix processor platform, providing 4 balanced analog inputs and 4 balanced analog outputs in a 1U chassis that can be field-expanded up to 24x24 total channels by adding expansion cards. As a standalone DSP audio matrix processor without amplification, the NE24.24M 4X4 handles signal routing and Protea DSP processing for commercial AV installations in courtrooms, boardrooms, restaurants, houses of worship, auditoriums, and conference rooms where flexibility and future expandability are required. Standard 10/100 Ethernet and RS-232 control, 31 preset locations, and compatibility with Crestron, AMX, and other third-party control systems make the NE24.24M 4X4 a practical starting point for scalable commercial audio matrix installations.

Product Description

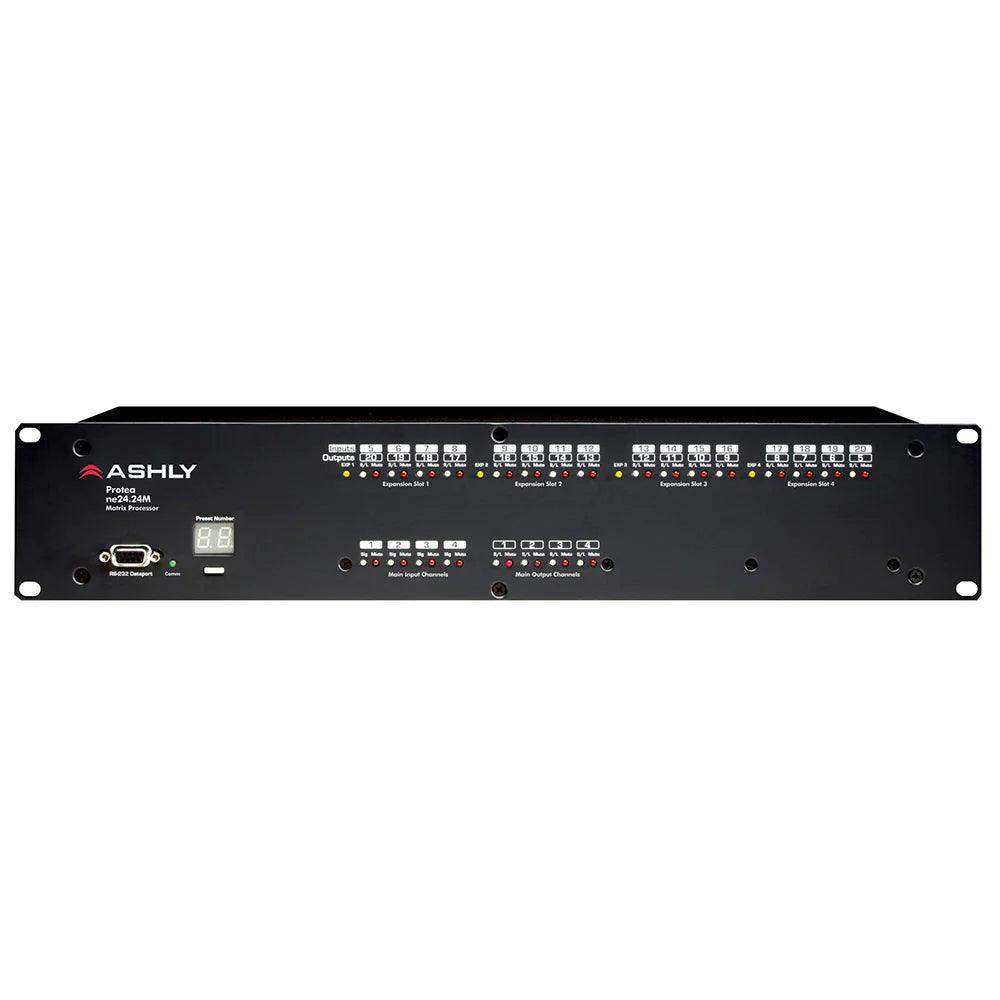

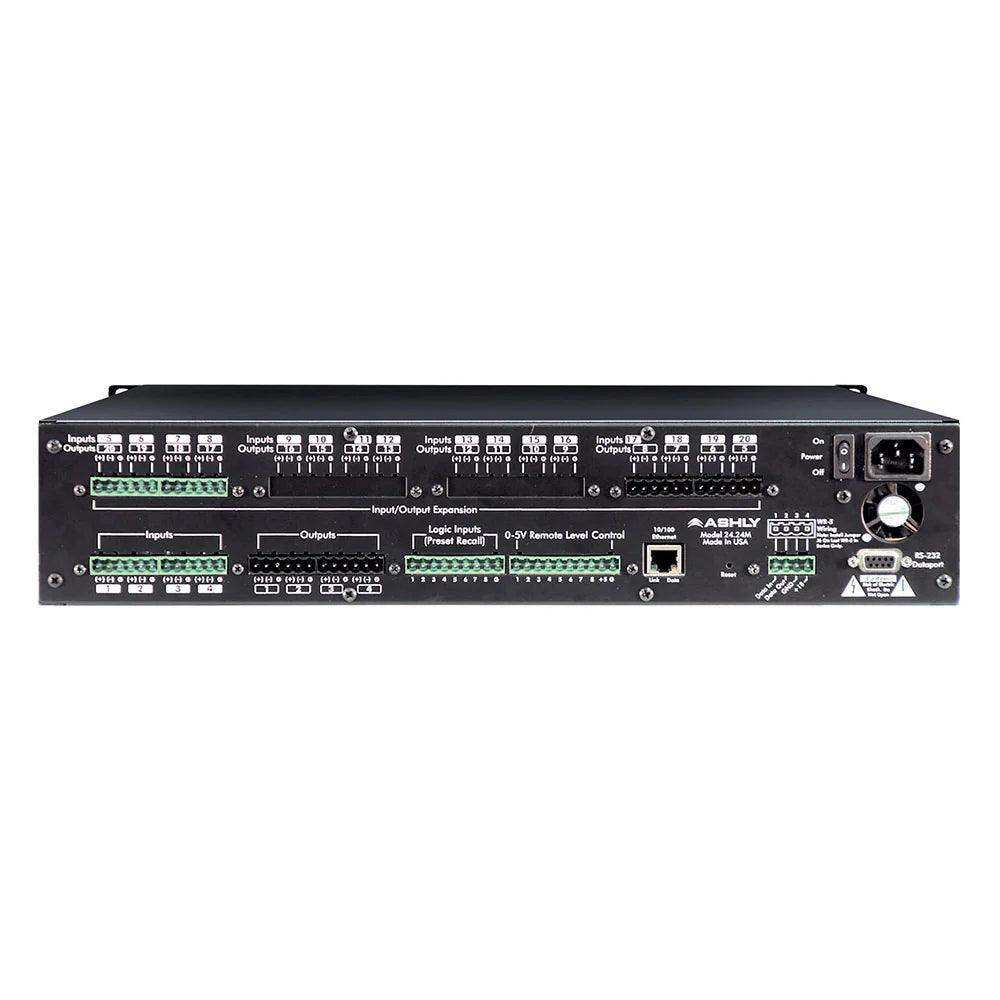

The NE24.24M 4X4 starts as a 4-input by 4-output DSP audio matrix and grows to accommodate the expanding requirements of a facility over time. Adding field-installable expansion cards in 4-channel increments provides up to 24 inputs and 24 outputs in the same chassis without replacing the base unit or reprogramming from scratch. Each expansion card carries its own dedicated DSP processor, so per-channel processing power is maintained as the system grows. The Protea DSP library includes variable-Q graphic and parametric EQ, high-order crossover filters (Butterworth, Bessel, Linkwitz-Riley, and Notched-Linkwitz-Riley), advanced automatic feedback suppression, autolevelers, compressors, matrix duckers, limiters, frequency-keyed noise gates, and time delay up to 1365ms per channel for loudspeaker time alignment. Full any-to-any matrix routing allows any input to be distributed to any output with individual level control at each routing point. Euroblock connectors on all audio I/O provide reliable and compact field-wiring connections. Preset recall inputs and DC remote level control support volume management from wall panels and room automation systems without a connected PC. The optional GPO Logic Card can be installed in an expansion slot to trigger projection screens, curtains, and lighting systems from audio events. Multi-level password security locks the system against unauthorized changes, and the free Ashly Remote iOS app enables tablet-based control and monitoring.

Key Features

• 4x4 Base, Expandable to 24x24 — Start with a 4x4 matrix and add expansion cards in 4-channel increments to reach 24x24 in the same chassis.
• Individual DSP Per Card — Dedicated DSP processor per expansion card maintains per-channel processing power as the system expands.
• Protea DSP Library — Variable-Q EQ, high-order crossovers, auto feedback suppression, dynamics, delay up to 1365ms, and signal generators.
• Full Any-to-Any Matrix Routing — Any input to any output with individual level control at every routing point.
• 24-Bit A/D and D/A — High-resolution audio conversion throughout.
• Ethernet and RS-232 Control — 10/100 Ethernet for Protea NE software; RS-232 for third-party control systems.
• 31 Preset Locations — Store and recall complete system configurations for different room setups.
• DC Remote Level Control — Per-channel volume control from wall remotes and room automation systems.
• iOS Remote App — Free Ashly Remote iOS app for wireless tablet-based control.
• Optional GPO Logic Card — General-purpose relay outputs for triggering screens, curtains, and lighting.

Typical Applications

• Courtrooms and government facilities
• Boardrooms and corporate conference rooms
• Restaurants and hospitality venues with multi-zone audio
• Houses of worship with expandable audio systems
• Auditoriums and multi-purpose spaces
• Conference rooms with third-party control integration

Technical Specifications

Frequently Asked Questions

Is the NE24.24M 4X4 an amplifier?

No. The NE24.24M 4X4 is a DSP audio matrix processor only and does not include amplification. External power amplifiers are needed to drive loudspeakers from the output channels.

How do I expand the NE24.24M 4X4 beyond 4x4?

Field-installable 4-channel expansion cards are added to empty slots in the chassis. Each card adds 4 inputs or 4 outputs (or a combination) and carries its own DSP processor. Expansion can be done by the installer in the field without returning the unit to the factory.

What is the maximum configuration?

The NE24.24M platform supports up to 24 inputs and 24 outputs total. Ashly offers factory-configured models (4X4, 8X4, 8X8, 12X12, 16X8, 20X4, 24X4) as well as custom configurations up to 24x24.

Does the NE24.24M 4X4 support digital audio input?

An optional GPO Logic Card can be installed in an expansion slot; however, digital audio input (CobraNet, Dante, AES3) is not a documented expansion option for the NE24.24M platform. Contact Creation Networks at https://creationnetworks.net for configuration questions.

What room control systems are compatible?

The NE24.24M 4X4 is compatible with Crestron, AMX, and other third-party control platforms via RS-232 and Ethernet. DC remote level control on Euroblock inputs supports volume control from wall panels without a control system.
