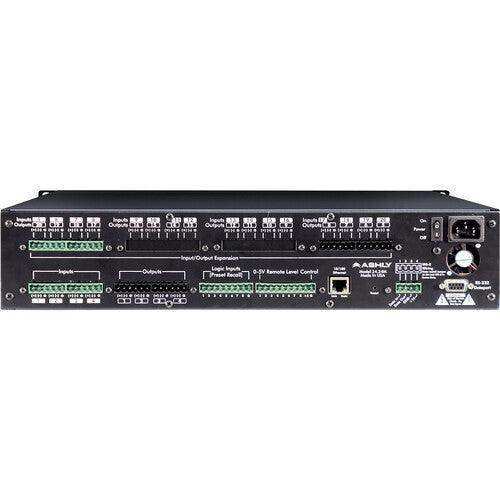

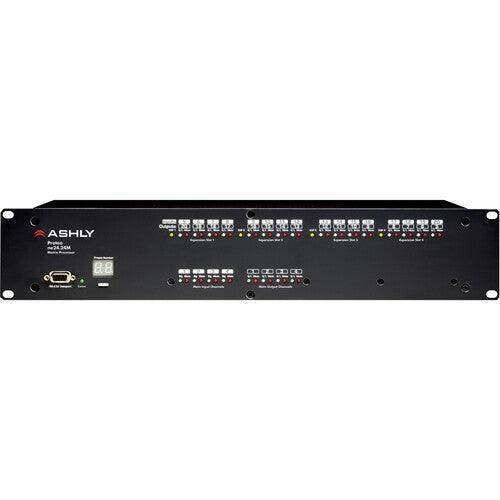

ASHLY NE24.24M 12X12 Protea DSP Audio Matrix Processor 12-In x 12-Out

Product Overview

The Ashly NE24.24M 12X12 is a Protea DSP audio matrix processor configured with 12 inputs and 12 outputs, built on the modular NE24.24M platform that expands from a 4x4 base to up to 24x24 channels using field-installable expansion cards. Designed for commercial AV installation in conference rooms, boardrooms, houses of worship, and multi-purpose facilities, this DSP audio matrix processor provides complete audio routing and processing for complex multi-zone systems without an amplifier. The Protea DSP engine delivers equalization, dynamics, crossover filtering, delay, time alignment, automatic feedback suppression, and matrix mixing, with 10/100 Ethernet and RS-232 control via Ashly Protea NE software and the free Ashly Remote iOS app. With 31 preset locations and third-party control system compatibility, the NE24.24M 12X12 integrates into virtually any commercial AV control infrastructure.

Product Description

The NE24.24M 12X12 is a dedicated DSP audio matrix processor that handles all signal routing, processing, and distribution in commercial AV systems. Unlike the amplifier-integrated PEMA and NE Series products, the NE24.24M is a pure signal processor that connects between audio sources and external power amplifiers, providing the matrix routing and DSP processing layer for systems of any scale up to 24 channels. The 12-input x 12-output configuration ships with the appropriate expansion cards installed in the field-expandable chassis; each expansion card adds 4 channels with its own individual DSP processor, allowing the total processing capacity to be scaled as installation requirements change. Matrixing allows any input to be routed to any output with individual level control at each routing point, enabling sophisticated multi-zone audio distribution across large commercial facilities. The Protea DSP library includes variable-Q graphic and parametric EQ, high-order crossover filters (Butterworth, Bessel, Linkwitz-Riley, Notched-Linkwitz-Riley), advanced automatic feedback suppression, autolevelers, compressors, matrix duckers, limiters, frequency-keyed noise gates, and delay up to 1365ms per channel for time alignment. Input and output metering is viewable in dBu for accurate level calibration. Euroblock connectors on all audio I/O provide secure rack-mount connections, and DC remote level control and preset recall inputs are included for wall remote and room automation integration. An optional GPO logic card can trigger projection screens, curtains, and lighting control via the expansion slot. Multi-level software security with password access prevents unauthorized changes to system configuration. The NE24.24M is certified cTUVus, FCC, CE, and RoHS.

Key Features

• 12-Input x 12-Output Matrix — Full any-to-any routing with individual level control at every routing point.
• Modular Expandability — Field-installable expansion cards add 4 channels per card up to 24x24 total.
• Individual DSP Per Card — Each expansion card has its own DSP processor for dedicated per-channel processing power.
• Extensive DSP Library — Variable-Q EQ, high-order crossovers, auto feedback suppression, dynamics, delay up to 1365ms, and signal generators.
• 24-Bit A/D and D/A — High-resolution audio conversion throughout the signal chain.
• Ethernet and RS-232 Control — 10/100 Ethernet for Protea NE software; RS-232 for third-party control systems.
• iOS Remote Control — Free Ashly Remote iOS app for tablet-based control in the field.
• 31 Preset Locations — Store and recall complete system configurations for different room setups.
• Third-Party Control Friendly — Compatible with Crestron, AMX, and other room control platforms.
• Optional GPO Logic Card — Trigger projection screens, curtains, and lights from the processor.
• Multi-Level Security — Password-protected access prevents unauthorized configuration changes.

Typical Applications

• Boardrooms and executive conference suites with multi-zone audio
• Houses of worship requiring flexible matrix audio distribution
• Government and institutional facilities with complex routing requirements
• Multi-purpose rooms and auditoriums with reconfigurable audio systems
• Training facilities and all-hands rooms with multiple sources and zones
• Commercial meeting spaces requiring third-party control integration

Technical Specifications

Frequently Asked Questions

Is the NE24.24M 12X12 an amplifier?

No. The NE24.24M is a pure DSP audio matrix processor. It handles signal routing and processing but does not amplify audio. External power amplifiers are required to drive loudspeakers.

Can the NE24.24M 12X12 be expanded beyond 12x12?

Yes. The chassis accepts expansion cards that each add 4 channels of input or output with individual DSP processing. The maximum configuration is 24-input x 24-output. Cards are field-installable without reprogramming.

What DSP processing is available on the NE24.24M 12X12?

The Protea DSP library includes variable-Q EQ, high-order crossover filters (Butterworth, Bessel, Linkwitz-Riley), advanced automatic feedback suppression, autolevelers, compressors, matrix duckers, limiters, noise gates, delay up to 1365ms, and signal generators.

Is the NE24.24M compatible with Crestron or AMX control systems?

Yes. The unit is third-party control friendly and includes RS-232 and Ethernet interfaces that support integration with Crestron, AMX, and other room control platforms.

What is the GPO Logic Card option?

The optional GPO Logic Card installs in one of the four expansion slots and provides general-purpose outputs that can trigger projection screens, curtains, and lighting control systems from audio-triggered or timed events in the processor.

How is the NE24.24M 12X12 configured?

Configuration is performed using Ashly Protea NE software on a Windows PC over 10/100 Ethernet or RS-232. The free Ashly Remote iOS app provides control from a tablet in the field.
