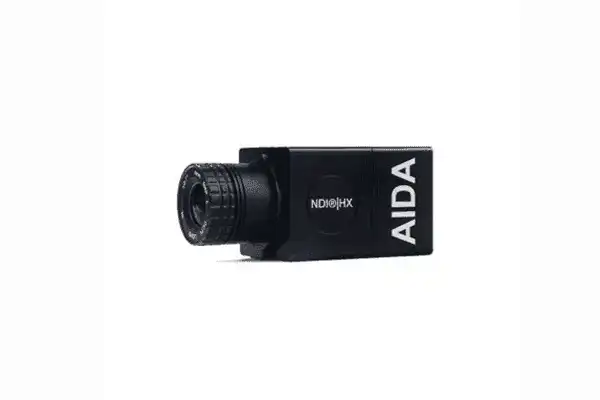

AIDA Imaging HD-NDI-CUBE – Compact Full HD NDI|HX / IP POV Camera

Product Overview

The AIDA Imaging HD-NDI-CUBE is a compact, cube-form NDI|HX and IP streaming POV camera designed for fixed-installation AV environments where a minimal footprint is a priority. Equipped with a 1/3" Sony progressive CMOS sensor and capable of 1080p60 output over NDI|HX, SRT, RTMP, and RTSP simultaneously, the HD-NDI-CUBE delivers full broadcast-quality IP video from a 86 x 40 x 40mm enclosure weighing only 180g. The C/CS mount lens interface ships with a 4mm lens and supports the full range of compatible AIDA and third-party lenses, and PoE+ power delivery through the included adapter keeps cable runs to a single Ethernet connection.

Product Description

The HD-NDI-CUBE's cube-shaped enclosure — 86 x 40 x 40mm — allows it to fit in positions where a traditional box or cylinder camera body would be obtrusive: inside podiums, mounted on thin wall brackets, integrated into stage sets, recessed into furniture, or positioned at close camera-to-subject distances. The NDI|HX license is pre-loaded, enabling immediate NDI network operation without activation steps. Simultaneous streaming across NDI|HX, SRT, RTSP, and RTMP means the camera can serve an NDI production environment, a streaming platform via SRT or RTMP, and RTSP-capable decoders all at the same time from a single network connection. The web UI provides browser-based access to all camera parameters. VISCA over IP supports integration with production control surfaces and AV automation systems.

Key Features

• Ultra-Compact Cube Form Factor — 86 x 40 x 40mm at 180g, installs in positions where larger POV bodies cannot.
• Sony 1/3" Progressive CMOS Sensor — Clean, reliable 1080p60 imaging from a proven Sony platform.
• NDI|HX + SRT + RTMP + RTSP Simultaneous — Four concurrent streaming protocols from a single camera and single network connection.
• Pre-Loaded NDI|HX License — NDI|HX streaming active from first boot, no activation steps required.
• PoE+ Adapter Included — Single Ethernet cable delivers power, video, and control.
• C/CS Mount Lens Interface — Ships with 4mm CS lens; interchangeable with the full range of C and CS mount lenses.
• Web UI for Remote Configuration — Browser-based access to camera settings, streaming configuration, and image parameters.
• USB SVC Port — Rear-panel USB service port for direct configuration and firmware management during installation.
• VISCA over IP Control — Standard VISCA protocol for production control systems and AV automation.
• NDI 5 Compatible — Operates within the current NDI 5 ecosystem.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• House of worship
• Training room
• Broadcast studio
• Auditorium

Technical Specifications

Frequently Asked Questions

What makes the HD-NDI-CUBE different from AIDA's other NDI POV cameras?

The HD-NDI-CUBE's defining characteristic is its cube form factor — at 86 x 40 x 40mm, it is the smallest box-body NDI camera in AIDA's lineup. It uses a Sony 1/3" sensor rather than the larger 1/2.8" sensor in the HD-NDI-200, a trade-off for the smaller enclosure size.

Does the camera require a separate NDI license?

No. The NDI|HX license is pre-installed. The camera is ready to stream NDI|HX on the network immediately.

Can the HD-NDI-CUBE stream to multiple destinations simultaneously?

Yes. Simultaneous NDI|HX, SRT, RTMP, and RTSP output from a single network connection allows concurrent delivery to a local NDI production environment, a cloud streaming platform, and IP decoder hardware at the same time.

What is the USB SVC port used for?

The USB SVC (service) port enables direct configuration and firmware updates during installation without requiring the camera to be on the production network.

How is the camera powered?

A PoE+ adapter is included, enabling the camera to be powered over a standard Ethernet cable. A 12VDC input is also available as an alternate power source.
