AIDA Imaging UHD6G-X12L – 4K/UHD 6G-SDI EFP Camera 12x Zoom

Product Overview

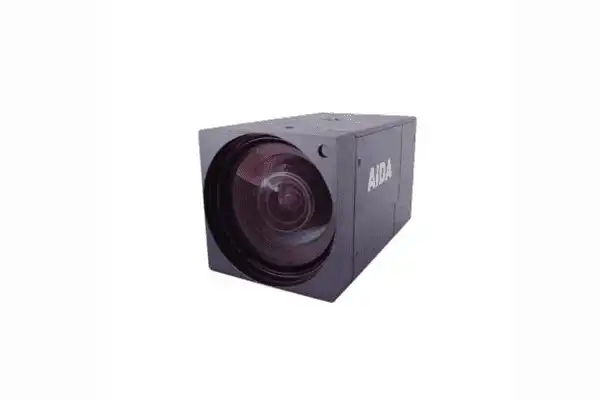

The AIDA Imaging UHD6G-X12L is a professional 4K UHD EFP camera with 6G-SDI output, designed for broadcast studios, live production, and multi-camera environments requiring native 4K SDI connectivity. It pairs a 1/1.7-inch back-illuminated CMOS sensor with a 12x 4K optical zoom module, delivering 4K video over a single 6G-SDI BNC connection alongside simultaneous HDMI output. The camera conforms to SMPTE 2081-10 and supports VISCA over RS-485 for integration with professional broadcast control systems. Its EFP form factor makes it suitable for rigged, bracket-mounted, or fixed-position installations in broadcast and live event environments.

Product Description

The UHD6G-X12L fills a specific gap in broadcast and live production: a compact 4K POV/EFP camera with true 6G-SDI output that connects directly to 6G-SDI routers, switchers, and recording systems without conversion hardware. The 6G-SDI standard carries 4K over a single BNC cable at distances common in professional broadcast plant wiring, an advantage over HDMI for longer cable runs in established SDI infrastructure.

The 1/1.7-inch back-illuminated CMOS sensor is larger than sensors found in most PTZ-class cameras, providing improved low-light sensitivity and wide dynamic range for broadcast-grade image quality. The 12x 4K optical zoom operates natively in 4K rather than digitally scaling from a lower-resolution signal. Simultaneous 6G-SDI and HDMI dual output allows the camera to feed a production router over SDI while simultaneously providing a local HDMI monitor feed or secondary recording path.

SMPTE 2081-10 compliance confirms interoperability with broadcast-standard 4K SDI infrastructure. VISCA control over RS-485 supports multi-drop camera control on a single RS-485 bus — a common wiring configuration in multi-camera broadcast installs. The advanced digital imaging processor applies Dynamic Range, Auto White Balance, and temporal noise reduction to maintain vivid, detailed images under varied production lighting. Motion-compensated temporal noise reduction eliminates motion blur artifacts without affecting image sharpness.

Key Features

• 6G-SDI Output (SMPTE 2081-10) — Carries 4K over a single BNC connection, compatible with existing broadcast SDI infrastructure.
• 1/1.7-Inch Back-Illuminated CMOS — Larger sensor format delivers improved low-light performance and wide dynamic range.
• 12x 4K Optical Zoom — Native 4K zoom avoids resolution loss from digital scaling on smaller sensors.
• Simultaneous 6G-SDI + HDMI Output — Both outputs active concurrently for parallel feeds to production router and local monitor.
• VISCA Control over RS-485 — Multi-drop RS-485 wiring allows a single control cable to address multiple cameras.
• SMPTE 2081-10, 292M, 424M Compliance — Confirmed interoperability with broadcast-standard 4K SDI equipment.
• Advanced Digital Imaging Processor — Applies WDR, Auto White Balance, and temporal noise reduction for broadcast-grade image quality.
• Embedded Audio — Multi-channel audio embedded via 6G-SDI and HDMI outputs.

Typical Applications

• Broadcast studio
• House of worship
• Auditorium
• Government space
• Conference room

Technical Specifications

Frequently Asked Questions

What does 6G-SDI mean and how does it differ from 3G-SDI?

6G-SDI (SMPTE 2081-10) carries up to 6 Gbps over a single BNC, enabling 4K transport over one coaxial cable. Standard 3G-SDI is limited to 1080p60. The UHD6G-X12L requires a 6G-SDI-capable router, switcher, or frame synchronizer to accept the 4K signal.

Can 6G-SDI and HDMI outputs be active simultaneously?

Yes. Both outputs are simultaneously active, allowing a production infrastructure SDI feed and a local HDMI monitor feed to run concurrently.

What control wiring is required?

VISCA over RS-485. RS-485 supports multi-drop wiring, so multiple cameras can be addressed on a single RS-485 run, reducing control cabling in multi-camera installs.

Is this camera suitable for live event production outside a studio?

The EFP form factor is designed for rigged, mounted, or bracket-installed positions. It performs well in live event environments where it can be mounted on a stand, truss, or custom bracket.

What warranty is available?

AIDA Imaging provides a manufacturer's warranty. Creation Networks is an authorized reseller and can assist with warranty service coordination.
