Cambridge Sound QT X300 2-zone sound masking, paging and background music bundle for up to 2,400 SF

Product Overview

The Cambridge Sound Qt X 300 2-zone bundle delivers sound masking, office paging, and background music for spaces up to 2,400 square feet. Sound masking adds a precisely tuned ambient background sound that makes nearby speech unintelligible, improving privacy and cutting workplace distraction. The package combines one Qt X 300 control module with 24 Qt Active Emitters plus all power and cabling hardware. It suits two-area facilities such as an open office plus reception, or adjacent suites requiring separate tuning.

Product Description

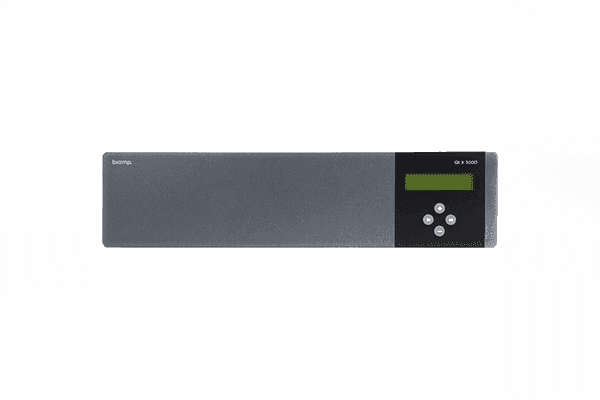

The Qt X 300 control module is a sound masking generator, controller, and amplifier with two auxiliary audio inputs for distributing paging and background music through the same emitter network. Although this bundle is configured for two zones with 24 active emitters, the controller supports up to three zones and scales to 36,000 square feet (3,345 m²), leaving headroom for future expansion. Each zone is adjusted independently for masking level, aux audio level, and spectrum, delivering superior uniformity and a more comfortable masking experience along with clear paging and music. The system uses the same control modules, cabling infrastructure, and speaker driver size as other Cambridge Sound systems, keeping installation and calibration straightforward. Settings are managed from the front panel or from a PC, Mac, or tablet using Qt Monitoring and Control Software, including error reporting and time-based masking levels. Active and standard Qt emitters can even run on the same controller in separate zones. Optional VoIP and analog phone paging support is available. See compatible emitters and mounting accessories in the Cambridge Sound range.

Key Features

• Two configured zones — independent masking and audio control for approximately 2,400 sq ft, expandable on the same controller.
• Masking, paging, and music — two auxiliary inputs carry announcements and background music through the emitter network.

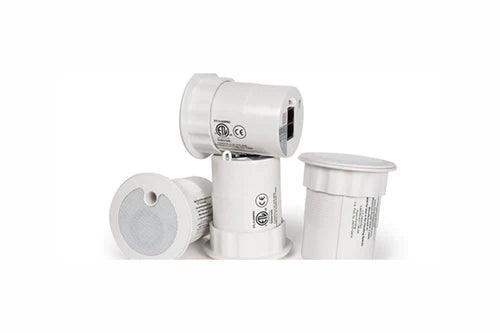

• 24 Qt Active Emitters included — small direct-field loudspeakers that are virtually invisible in finished or open-structure ceilings.
• Superior uniformity — uncorrelated emitter channels create consistent, comfortable masking without hot spots.
• Extended masking spectrum — broader spectrum tuning for additional occupant comfort.
• Software management — configure levels, schedules, and error reporting from PC, Mac, or tablet with Qt Monitoring and Control Software.
• Mixed emitter support — run Qt Active and original Qt Emitters simultaneously on separate zones of the same processor.

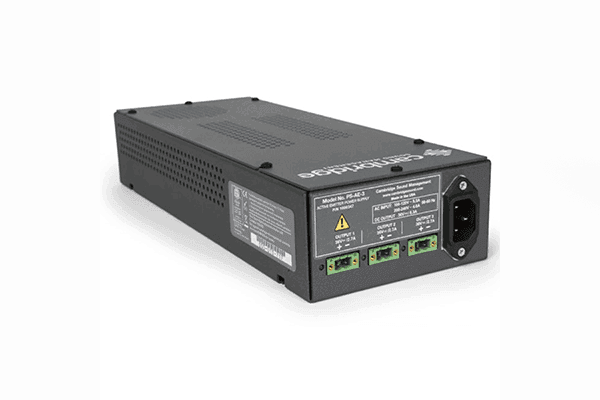

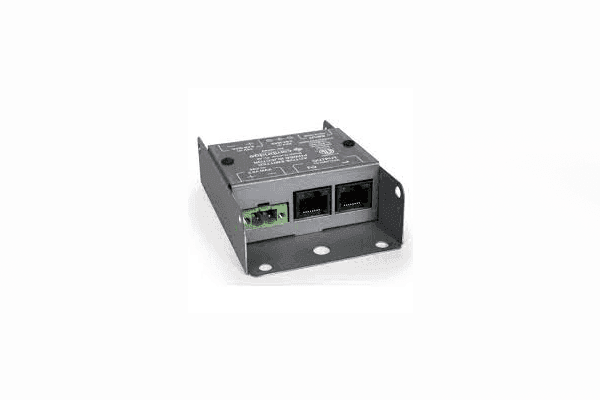

• Complete hardware kit — power supply, two power injectors, PreZone 1 mic/aux interface, and plenum-rated cabling included.

Typical Applications

• Open-plan offices reducing conversational distraction
• Private offices and conference rooms protecting confidential discussions
• Healthcare clinics and waiting areas supporting HIPAA speech privacy
• Call centers improving focus and caller confidentiality
• Financial and legal offices safeguarding client conversations

Technical Specifications

Specifications sourced from Cambridge Sound vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What area does this bundle cover?
The 24 included active emitters cover approximately 2,400 square feet across two zones. The Qt X 300 controller supports a third zone and up to 36,000 square feet with additional emitters.

Does it integrate with paging and music sources?
Yes. Two auxiliary inputs accept paging controllers and background music players, and the included PreZone 1 provides mic and aux connectivity. Optional VoIP and analog phone paging is available.

How is the system installed?
Emitters mount on a ceiling grid and daisy-chain with plenum-rated UTP cable using pre-terminated connectors. Creation Networks provides certified design and installation.

Can I expand later?
Yes. Add emitters to existing runs or activate the third zone; the platform also networks with additional Qt X controllers for larger campuses.

What warranty applies?
Qt X hardware carries the manufacturer's five-year warranty. Request a quote from Creation Networks for project pricing.
