Cambridge Sound QT-HCE Qt Patient Privacy System - 911.0825.900

The Qt Patient Privacy System is a cost-effective sound masking solution to protect patient and staff conversations in all types of medical facilities. Our direct-field sound masking technology adds a low-level background sound inside waiting rooms or patient exam rooms. The safe background sound is optimized to mask human speech, which makes it harder to overhear conversations at a distance. In today's medical offices protecting patient privacy is critical, and is enforced via HIPAA privacy regulations. Acoustics and sound privacy are often overlooked in open-floor plan waiting areas, and in patient rooms - where sound can easily travel over walls and through glass.

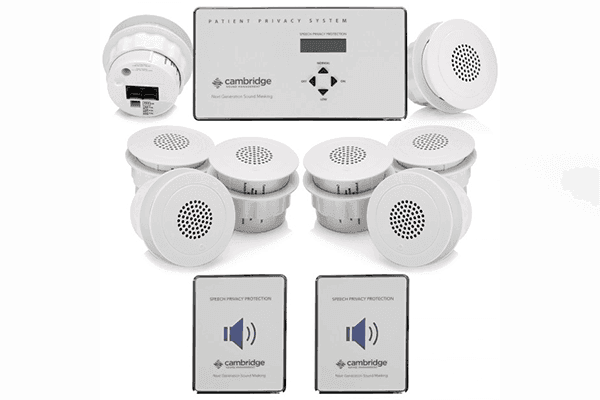

The QT-HCE Patient Privacy kit comprises:

• One wall-mounted QT X300 control module
• One 4-gang adaptor plate for the control module

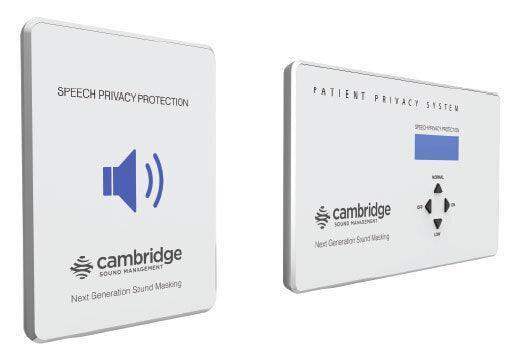

• Two automatically lighted privacy signs
• Two 1-gang adaptor plates for privacy signs
• Two 50 ft (15.2 m) plenum-rated cables for privacy signs
• One power supply
• Eight Qt Emitters

Key Features

• Out-of-the-box support for conference rooms with up to 40 feet (12 m) of exposed wall
• Meeting occupants can easily turn the system on and off with the push of a button
• Control module and privacy signs provide clear indication that the system is activated
• Premium, minimalist design style seamlessly fits in with other conference room AV equipment
• Smooth sound masking ramp up and ramp down to limit disruptions; adjustable via the front panel
• Option to add additional emitters for larger areas
• Easy to integrate with in-room third-party control systems
• Can be turned on and off for meetings or left running at all times
• Energy efficient; consumes less than 7 watts of power
• Straightforward, low-impact installation
• Controllable via Tesira software
• CE marked, ETL listed, and RoHS compliant
• Met Works with WELL licensing criteria for sound masking
• Covered by Biamp Systems’ five-year warranty • Manufactured in the U.S.A.
• TAA compliant
• GSA eligible

How does it work?

This advanced sound masking technology produces a low-level background sound that is installed directly in waiting rooms or patient exam rooms. This safe background sound is specifically designed to mask human speech, making it difficult to overhear conversations from a distance.

Where is it used?

The Qt Patient Privacy System is perfect for:

• Hospitals
• Pharmacies
• Medical Office Buildings
• Dental Offices
• Doctor's Offices
• Counseling Centers and
• Community Health Centers

How is it installed?

The system can be installed in any ceiling type by Creation Networks, your certified Cambridge Sound Management sound masking installer. Installation is straightforward and low-impact, and is usually completed in a few hours.

Accessories

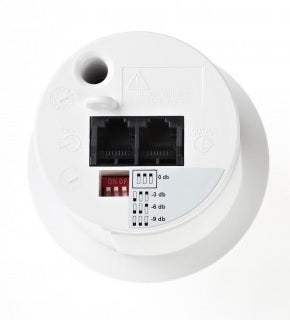

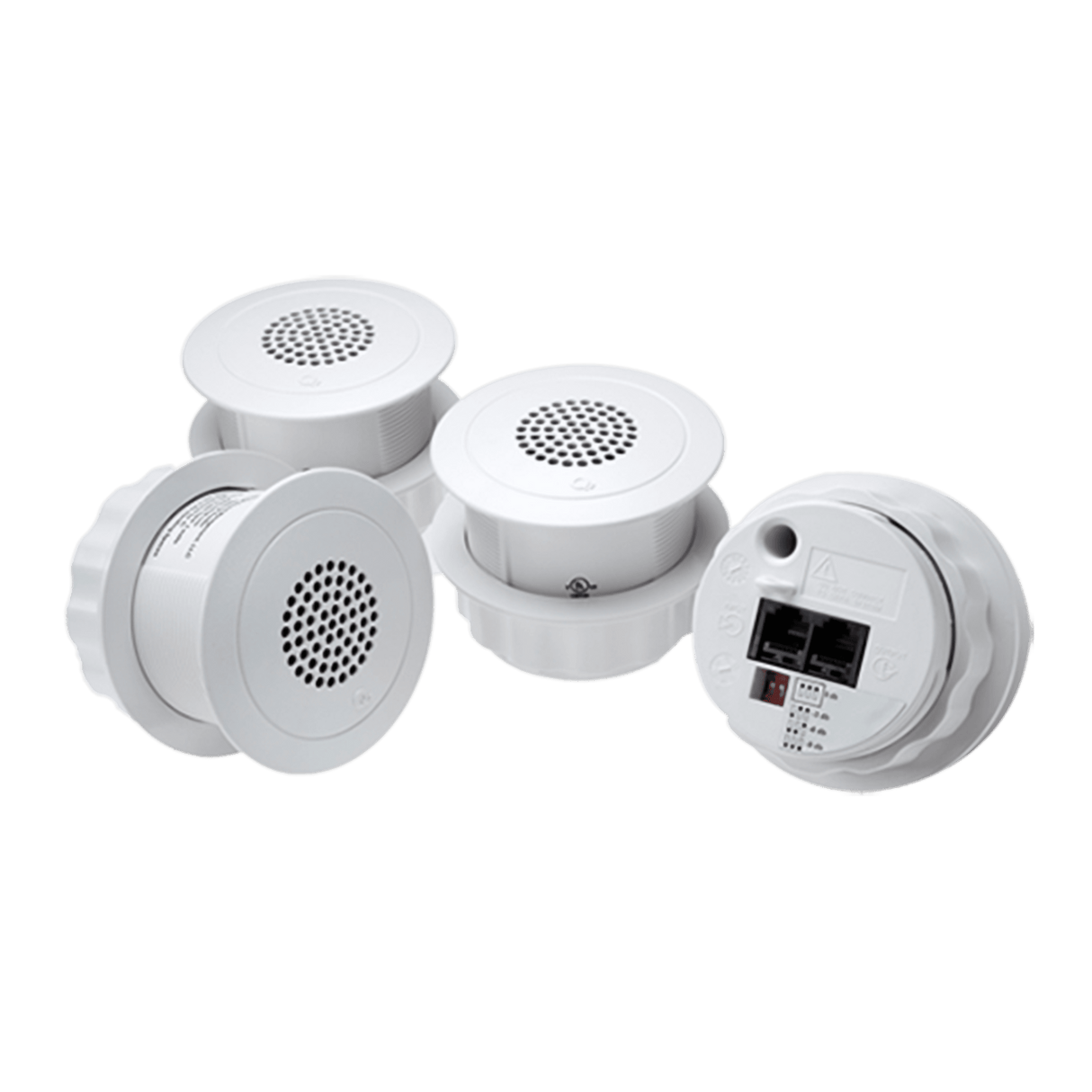

QT EMITTERS™ The backbone of the Qt® sound masking system. These emitters deliver 4 incoherent audio channels making the Qt system the best sound masking system on the market. The standard mounting is for acoustical tile ceilings.

1. UNIVERSAL BRACKET This enclosure is used for mounting the Qt emitter to the wall or ceiling.
2. BEAM BRACKET This enclosure is used for mounting the Qt emitter to exposed I-beams.
3. DRYWALL MOUNT This enclosure is used for mounting the Qt emitter into drywall ceilings.
4. CONDUIT MOUNT This enclosure is used for mounting the Qt emitter into ceilings in regions requiring conduit mounting.
5. CEILING CONDUIT MOUNT This enclosure is used for mounting the Qt emitter into acoustic ceiling tile or drywall in regions with special fire and/or conduit requirements.
6. QT ROOM CONTROL The Qt Room Control can be used to adjust the sound masking level with 6 discrete level selections (including off) for an individual room or space with 2-8 emitters

QT Patient Privacy System Product Brief
